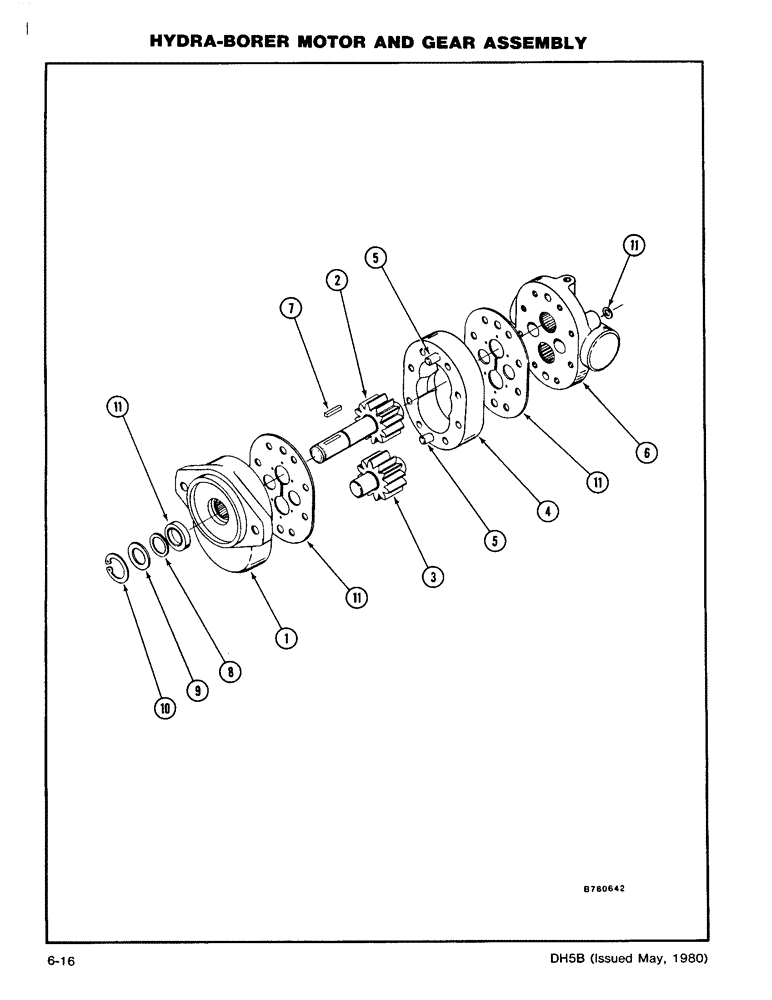

Запчасти Case DH5 (6-16) - HYDRA-BORER MOTOR AND GEAR ASSEMBLY (89) - TOOLS

H555912

MOTOR

and GEAR ASSEMBLY (Not Shown), Includes Ref. 1 - 11

1шт.

H29223

SPUR

GEAR - Gearbox Drive (Not Shown)

1шт.

A27521

SNAP RING,#68, Ext

Ring, Snap, , not shown #68, Ext

1шт.

H525527

MOTOR HOUSING

MOTOR ASSEMBLY, Includes Ref. 1 - 11

1шт.

1

H103002

PLATE ASSY.

PLATE - Front

1шт.

2

H52019

GEAR WHEEL

GEAR - Drive

1шт.

3

H52027

SHAFT

GEAR - Idler

1шт.

4

H47753

BODY

1шт.

5

F9529

AXLE PIN

PIN - Dowel

2шт.

6

H502765

PLATE - Back

1шт.

7

H34157

KEY

- Square (3/16 x 49/64)

1шт.

8

A41346

RING

WASHER - Backup

1шт.

9

H94490

WASHER

1шт.

10

A27521

SNAP RING,#68, Ext

Ring, Snap, #68, Ext

1шт.

11

H599704

KIT

- Seal Repair

1шт.
