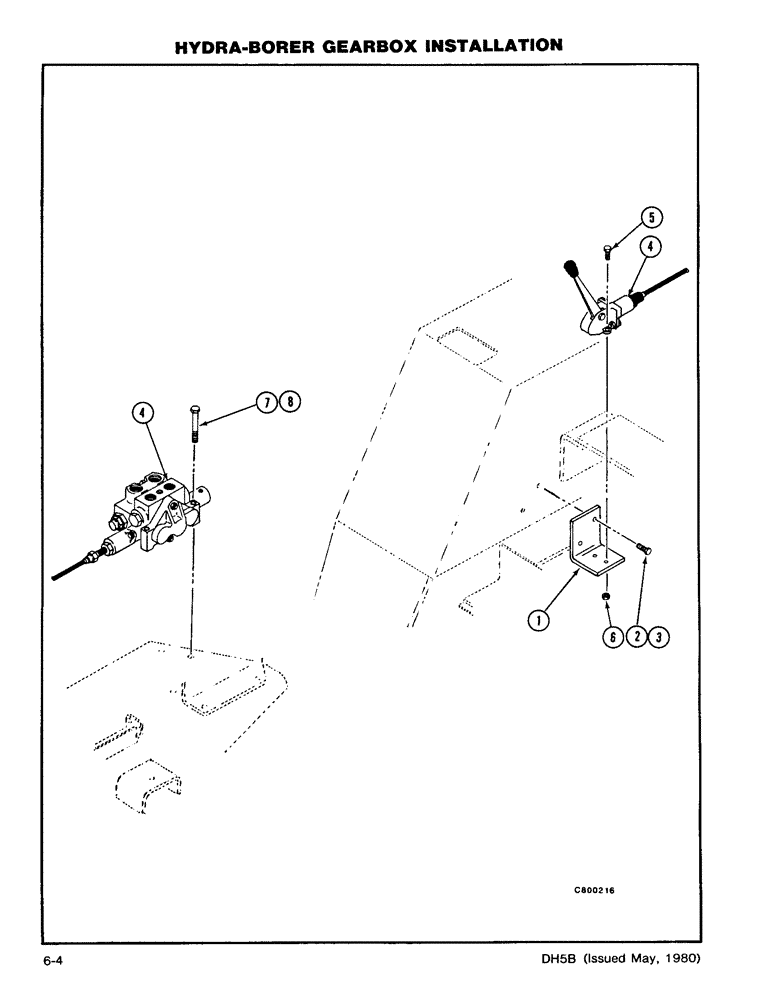

Запчасти Case DH5 (6-04) - HYDRA-BORER GEARBOX INSTALLATION (89) - TOOLS

1

H384768

BRACKET - Valve Lever, Includes Ref. 2 and 3

1шт.

2

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

3

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - NC Hex C/L (5/16)

2шт.

4

H652255

VALVE

CONTROL VALVE, HANDLE and CABLE ASSEMBLY - (See Fig. 6-18), Includes Ref. 5 - 8

1шт.

5

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

6

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

2шт.

7

113-241

BOLT,Hex, 3/8" - 16 x 3", Gr 5

3шт.

8

230-4216

LOCK NUT,3/8"-16, GA

NUT - NC Hex C/L (3/8)

3шт.
