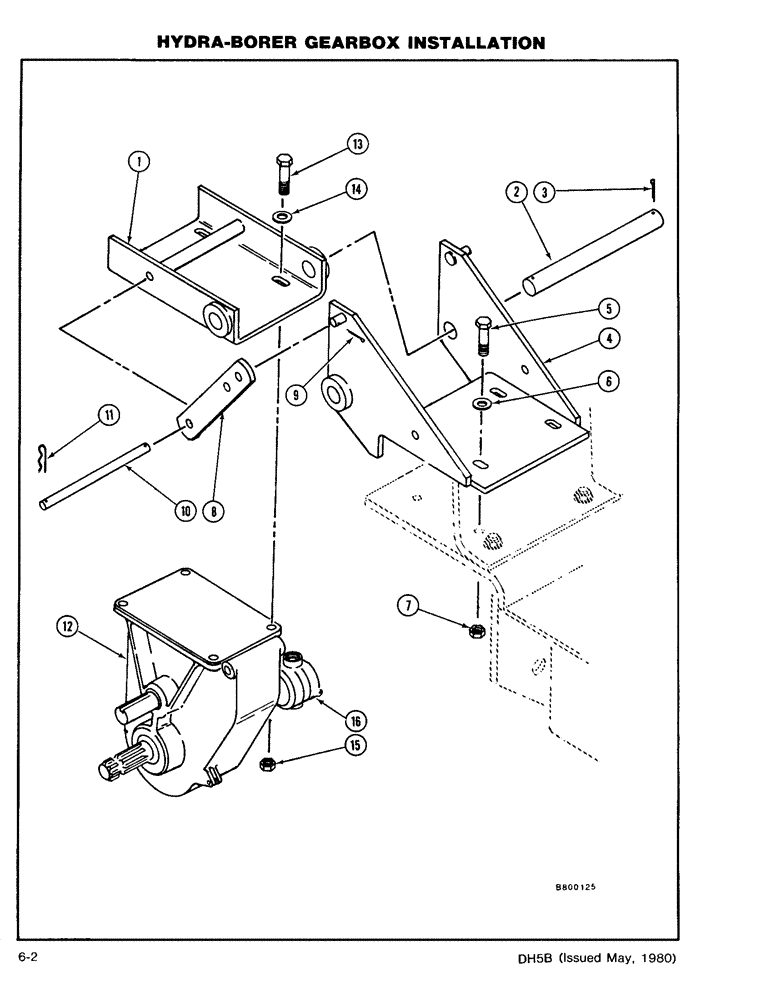

Запчасти Case DH5 (6-02) - HYDRA-BORER GEARBOX INSTALLATION (89) - TOOLS

1

H553388

CHANNEL

- Mounting, Includes Ref. 2 and 3

1шт.

2

H175448

SHAFT

- Pivot

1шт.

3

132-307

COTTER PIN,1/4" x 1 3/4"

PIN, Split (Cotter), 1/4" x 1 3/4"

2шт.

4

H553370

BRACKET

- Mounting, Includes Ref. 5 - 7

1шт.

5

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

6

195-533

WASHER,1/2", SAE

- Flat (1/2)

4шт.

7

131-1182

LOCK NUT,1/2"-13, GA

NUT - NC Hex C/L (1/2)

4шт.

8

H175430

LINK

2шт.

9

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

10

H175414

PIN

- Lock

1шт.

11

A70250

PIN

-Hair

2шт.

12

H511105

GEARBOX ASSY

GEARBOX ASSEMBLY - Hydra-Borer (See Fig. 6-14), Includes Ref. 13 - 15

1шт.

13

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

14

195-533

WASHER,1/2", SAE

- Flat (1/2)

4шт.

15

131-1182

LOCK NUT,1/2"-13, GA

NUT - NC Hex C/L (1/2)

4шт.

16

H555912

MOTOR

and GEAR ASSEMBLY - (See Fig. 6-16)

1шт.
