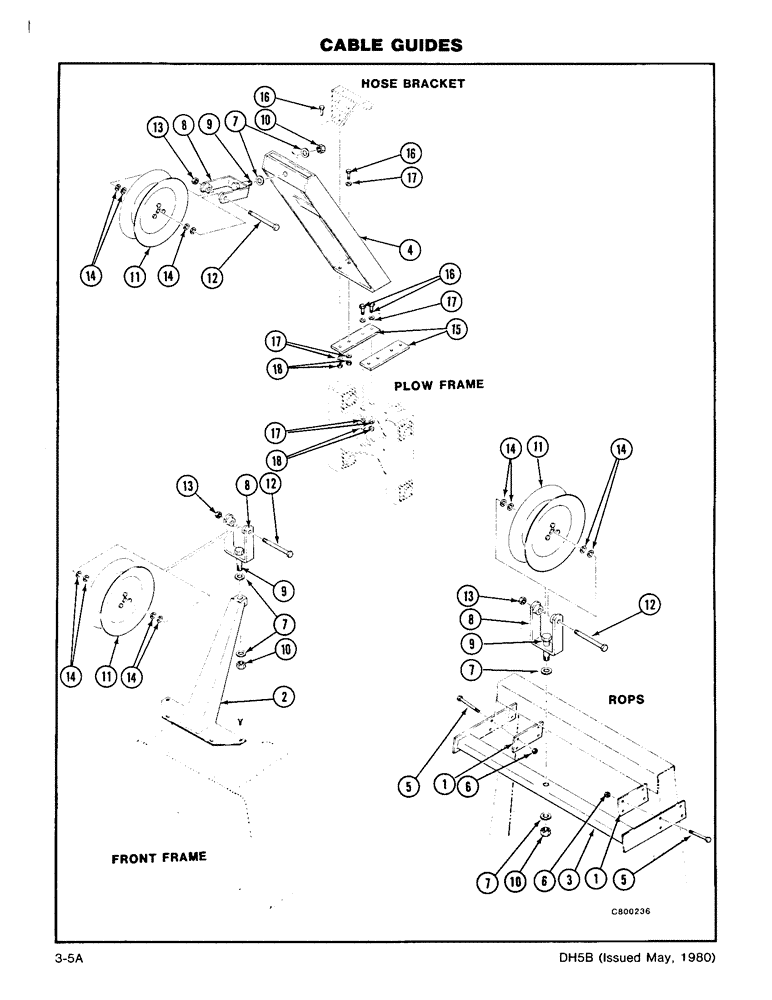

Запчасти Case DH5 (3-05A) - CABLE GUIDES (89) - TOOLS

1

H361436

PLATE - Mtg

2шт.

2

H630095

BRACKET - Cable Guide Mtg

1шт.

3

H635730

BRACKET - Cable Guide Mtg

1шт.

4

H635748

BRACKET

- Cable Guide Mtg

1шт.

5

113-411

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

8шт.

6

131-70

NUT,1/2"-13, GB

NUT - NC Hex Lock (1/2)

8шт.

7

195-111

WASHER,1"

- Wrought (1)

6шт.

8

R42958

FORK

SWIVEL

3шт.

9

26-1664

BOLT,Hex, 1" - 8 x 4", Gr 8

- NC HH (1x4) Grd. 8

3шт.

10

131-1221

LOCK NUT,1"-8, GC

NUT - NC Hex Lock (1)

3шт.

11

R43148

SHEAVE - 2"

3шт.

12

113-738

BOLT,Hex, 3/4" - 10 x 7", Gr 8

- NC HH (3/4 x 7) Grd. 8

3шт.

13

131-1152

LOCK NUT,3/4"-10, GC

NUT, LOCK, 3/4"-10, GC

3шт.

14

195-109

WASHER,3/4"

- Wrought (3/4)

12шт.

15

H388553

PLATE

- Mounting

2шт.

16

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

8шт.

17

195-533

WASHER,1/2", SAE

- Flat (1/2)

16шт.

18

131-70

NUT,1/2"-13, GB

NUT - NC Hex Lock (1/2)

8шт.
