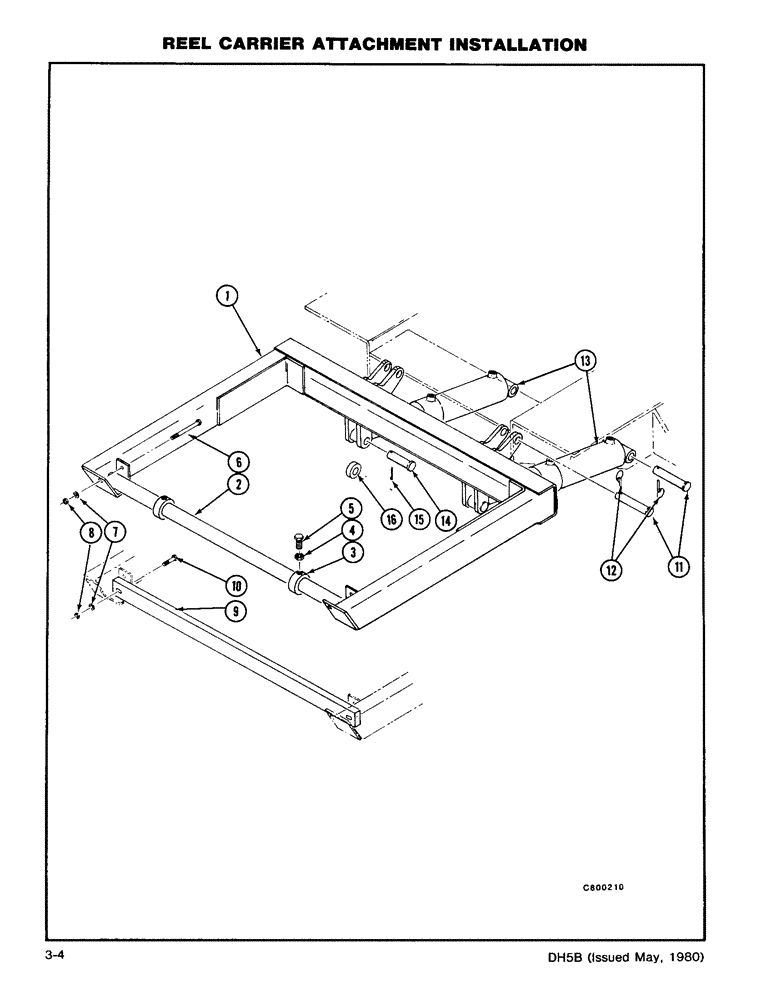

Запчасти Case DH5 (3-04) - REEL CARRIER ATTACHMENT INSTALLATION (89) - TOOLS

1

H645580

CARRIER

REEL CARRIER ASSEMBLY

1шт.

2

H342501

SPINDLE

- Reel Carrier

1шт.

3

342519

COLLAR

2шт.

4

425-1410

JAM NUT,Jam, 5/8"-11, G5

- NC Hex - Jam (5/8)

2шт.

5

113-607

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

2шт.

6

113-259

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

2шт.

7

195-525

WASHER,3/8", SAE

- Flat (3/8)

4шт.

8

230-4216

LOCK NUT,3/8"-16, GA

NUT - NC Hex C/L (3/8)

4шт.

9

H346981

BAR

- Weight (Used when weight is wanted w/o Reel)

1шт.

10

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

11

H56606

AXLE PIN,30.16mm OD x 142.08mm L

PIN - Clevis (1 x 5 1/4)

4шт.

12

A30338

PIN

-Klik

4шт.

13

G34251

CYLINDER

LIFT CYLINDER ASSEMBLY - (See Fig. 3-22)

2шт.

14

H70623

AXLE PIN

PIN - clevis (1 x 3 1/2)

2шт.

15

132-349

COTTER PIN,1/4" x 1 1/2"

PIN, Split (Cotter), 1/4" x 1-1/2"

2шт.

16

H184630

SPACER

DOUBLER

2шт.
