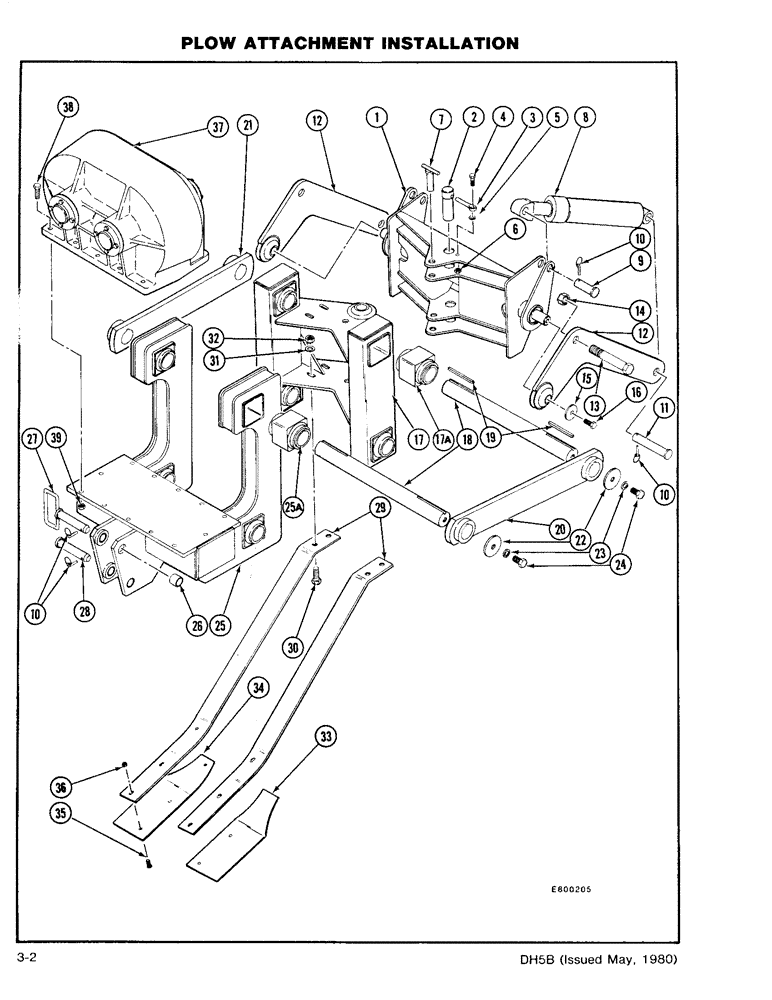

Запчасти Case DH5 (3-02) - PLOW ATTACHMENT INSTALLATION (89) - TOOLS

1

H645473

FRAME

- Front

1шт.

2

H384099

PIVOT

PIN - Pivot

2шт.

3

H313981

PIN

RETAINER - Pin

2шт.

4

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

5

195-525

WASHER,3/8", SAE

- Flat (3/8)

2шт.

6

131-1131

LOCK NUT,3/4"-10, GA

NUT - NC Hex (3/8 - Lock)

2шт.

7

H565259

PIN

- Swing Lock

1шт.

8

G33751

CYLINDER,Double Acting, 38.1mm Rod, 177.8mm Stroke

PLOW LIFT CYLINDER ASSEMBLY - (See Fig. 3-20)

2шт.

9

H67272

PIN,25.3mm OD x 84.93mm L

PIN - Clevis (2 x 2 25/32)

2шт.

10

A30338

PIN

- Klik

6шт.

11

H69476

RETAINER

PIN - Clevis (1 x 6)

2шт.

12

H645457

ARM/LIFTING DEVICE

ARM - Lift

2шт.

13

113-928

BOLT,Hex, 1" - 8 x 6", Gr 5

- NC HH (1 x 6)

2шт.

14

131-1184

LOCK NUT,1"-8, GA

NUT - NC Hex (1 - Lock)

2шт.

15

H165720

WASHER

- Flat (17/32)

2шт.

16

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

17

H645465

FRAME

- Pivot, Includes: Ref. 17A

1шт.

17a

H235069

SEAL

BUSHING - Rubber

4шт.

18

H401323

SHAFT

4шт.

19

F21923

KEY

- (1/4 sq x 5 1/4)

8шт.

20

H654228

LINK

- Left Hand

2шт.

21

H654236

LINK

- Right Hand

2шт.

22

H196626

WASHER

- Retainer

8шт.

23

12034871

WASHER

WASHER, LOCK, (5/8") M16

8шт.

24

113-606

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

8шт.

25

H645556

CHASSIS

FRAME - Rear, Includes: Ref. 25A and 26

1шт.

25a

H235069

SEAL

BUSHING - Rubber

4шт.

26

H131102

BUSHING

4шт.

27

H531830

AXLE PIN

PIN - Lock

1шт.

28

H79293

AXLE PIN,28.5mm OD x 128.59mm L

PIN - Clevis

1шт.

29

H388561

SPRING

- Shoe

2шт.

30

113-600

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

4шт.

31

195-541

WASHER,5/8", SAE

- Flat 5/8", SAE

4шт.

32

131-1130

LOCK NUT,5/8"-11, GA

NUT - NC Hex (5/8 - Lock)

4шт.

33

H149666

SHOE (ASSY)

SHOE - Spring

1шт.

34

H149674

SHOE (ASSY)

SHOE - Spring

1шт.

35

164-152

HEX SOC SCREW,Flat Hd, 3/8" - 24 x 1"

SCREW - Soc Hd (3/8 x 1 NF)

4шт.

36

131-1326

JAM NUT,Jam, 3/8"-24

NUT - NF Hex (3/8 - Lock)

4шт.

37

H563619

BOX

PLOW DRIVE GEARBOX ASSEMBLY - (See Fig. 3-16)

1шт.

38

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

10шт.

39

131-1182

LOCK NUT,1/2"-13, GA

NUT - NC Hex (1/2 - Lock)

10шт.

H645457- Later attachments used a similar.

1шт.

See blue prints for Arm, P/N H661223.

1шт.

Difference, ECS H16080-65.

1шт.
