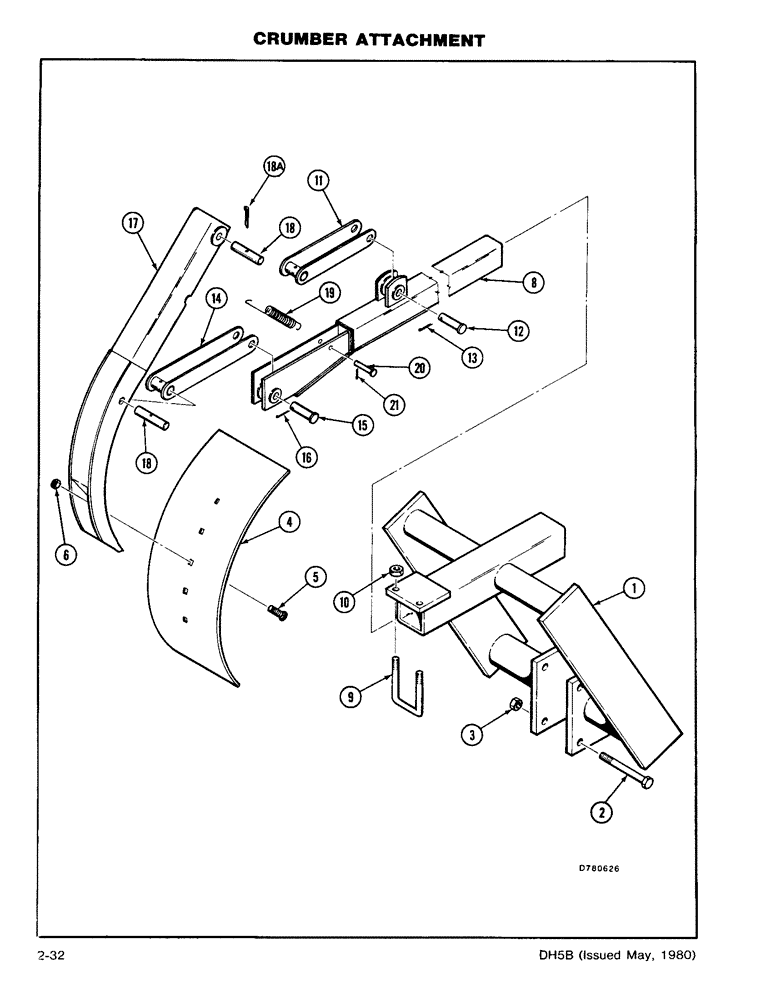

Запчасти Case DH5 (2-32) - CRUMBER ATTACHMENT (89) - TOOLS

1

H644104

MOUNTING PARTS

MOUNTING - CRUMBER, Includes: Ref. 2 and 3

1шт.

2

113-630

BOLT,Hex, 5/8" - 11 x 6", Gr 5

- NC HH (5/8 x 6)

4шт.

3

131-1130

LOCK NUT,5/8"-11, GA

NUT - NC Hex C/L (5/8)

4шт.

4

H127480

BLADE

- Crumber - 5"

1шт.

4

H60087

BLADE

- Crumber - 7"

1шт.

4

H60103

BLADE

- Crumber - 9"

1шт.

4

H60129

BLADE

- Crumber - 11", Includes: Ref. 5 and 6

1шт.

5

111-520

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G2

BOLT - Nc Carriage (1/2 x 1 1/4)

2шт.

6

131-1182

LOCK NUT,1/2"-13, GA

NUT - NC Hex C/L (1/2)

2шт.

8

H542902

BOOM

- Outer Crumber (45")

1шт.

8

H538553

BOOM

- Outer Crumber (54")

1шт.

8

H643569

BOOM

- Outer Crumber (72"), Includes: Ref. 9 and 10

1шт.

9

H54312

BOLT

U BOLT

2шт.

10

131-1182

LOCK NUT,1/2"-13, GA

NUT - NC Hex C/L (1/2)

4шт.

11

H536664

DRAG LINK

LINK - Short, Includes: Ref. 12 and 13

1шт.

12

H54320

AXLE PIN,19.05mm OD x 79.38mm L

PIN - Clevis (3/4 x 2 7/8)

1шт.

13

132-349

COTTER PIN,1/4" x 1 1/2"

PIN, Split (Cotter), 1/4" x 1-1/2"

1шт.

14

H532440

DRAG LINK

LINK - Long, Includes: Ref. 15 and 16

1шт.

15

H54320

AXLE PIN,19.05mm OD x 79.38mm L

PIN - Clevis (3/4 x 2 7/8)

1шт.

16

132-349

COTTER PIN,1/4" x 1 1/2"

PIN, Split (Cotter), 1/4" x 1-1/2"

1шт.

17

H536656

BRACKET

MOUNTING - Crumber Blade, Includes: Ref. 18 and 18A

1шт.

18

H118109

AXLE PIN,19.05mm OD x 92.08mm L

PIN - Clevis (3/4 x 3 5/8)

2шт.

18a

132-345

COTTER PIN,3/16" x 1 1/2"

PIN, SPLIT (COTTER), 3/16" x 1 1/2"

2шт.

19

H128280

VALVE SPRING

SPRING, Includes: Ref. 20 and 21

1шт.

20

H54395

AXLE PIN,9.47mm OD x 60.33mm L

PIN - Clevis (3/8 x 2 1/4)

1шт.

21

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.
