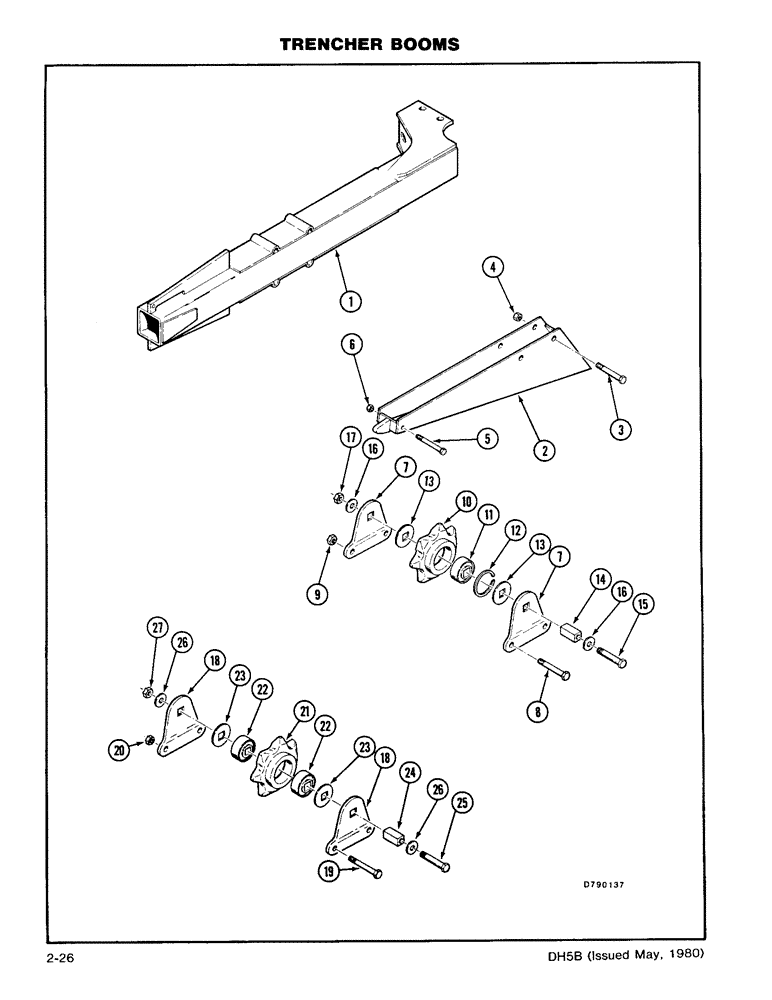

Запчасти Case DH5 (2-26) - TRENCHER BOOMS (89) - TOOLS

1

H644773

BOOM

- 3 Foot

1шт.

1

H644781

BOOM

- 4 Foot

1шт.

1

H644062

BOOM

- 5 Foot

1шт.

2

H644732

CHANNEL

- 3 Foot, Includes: Ref. 3 - 6

1шт.

2

H644740

CHANNEL

- 4 Foot, Includes: Ref. 3 - 6

1шт.

2

H644054

CHANNEL

- 5 Foot, Includes: Ref. 3 - 6

1шт.

3

113-619

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

- NC HH (5/8 x 4 1/4)

1шт.

4

131-1130

LOCK NUT,5/8"-11, GA

NUT - NC Hex C/L (5/8)

1шт.

5

413-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5

- NC HH (1/2 x 4 1/4)

1шт.

6

131-1182

LOCK NUT,1/2"-13, GA

NUT - NC Hex C/L (1/2)

1шт.

7

H381392

BRACKET

- Idler, Includes: Ref. 8 and 9

2шт.

8

113-619

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

2шт.

9

131-1130

LOCK NUT,5/8"-11, GA

NUT - NC Hex C/L (5/8)

2шт.

H531251

PINION

SPROCKET ASSEMBLY, Includes: Ref. 10 - 12

1шт.

Use With 50,000 lb. Chainline

1шт.

10

H115683

DRIVE SPROCKET

SPROCKET

1шт.

Use With 50,000 lb. Chainline

1шт.

11

H747139

BALL BEARING

BEARING

1шт.

Use With 50,000 lb. Chainline

1шт.

12

H33837

RING

- Retainer

1шт.

Use With 50,000 lb. Chainline

1шт.

13

H136663

SPACER

WASHER - Boom Idler

2шт.

14

H382275

SHAFT

- Bearing, Includes: Ref. 15 - 17

1шт.

Use With 50,000 lb. Chainline

1шт.

15

113-619

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

1шт.

Use With 50,000 lb. Chainline

1шт.

16

195-108

WASHER,5/8"

- Wrought (5/8)

2шт.

17

131-1130

LOCK NUT,5/8"-11, GA

NUT NC Hex C/L (5/8)

1шт.

18

H381392

BRACKET

- Idler, Includes: Ref. 19 and 20

2шт.

19

113-619

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

2шт.

20

131-1130

LOCK NUT,5/8"-11, GA

NUT - Nc Hex C/L (5/8)

1шт.

H544171

SPROCKET ASSY.

SPROCKET ASSEMBLY, Includes: Ref. 21 and 22

1шт.

Use With 70,000 lb. Chainline

1шт.

21

H132761

DRIVE SPROCKET

SPROCKET

1шт.

Use With 70,000 lb. Chainline

1шт.

22

H747139

BALL BEARING

BEARING

2шт.

Use With 70,000 lb. Chainline

1шт.

23

H136663

SPACER

WASHER - Boom Idler

2шт.

24

H251025

BOOM

SHAFT - Bearing, Includes: Ref. 25 - 27

1шт.

Use With 70,000 lb. Chainline

1шт.

25

113-647

BOLT,Hex, 5/8" - 11 x 5", Gr 5

- NC HH (5/8 x 5)

1шт.

Use With 70,000 lb. Chainline

1шт.

26

195-108

WASHER,5/8"

- Wrought (5/8)

2шт.

27

131-1130

LOCK NUT,5/8"-11, GA

NUT - NC Hex C/L (5/8)

1шт.
