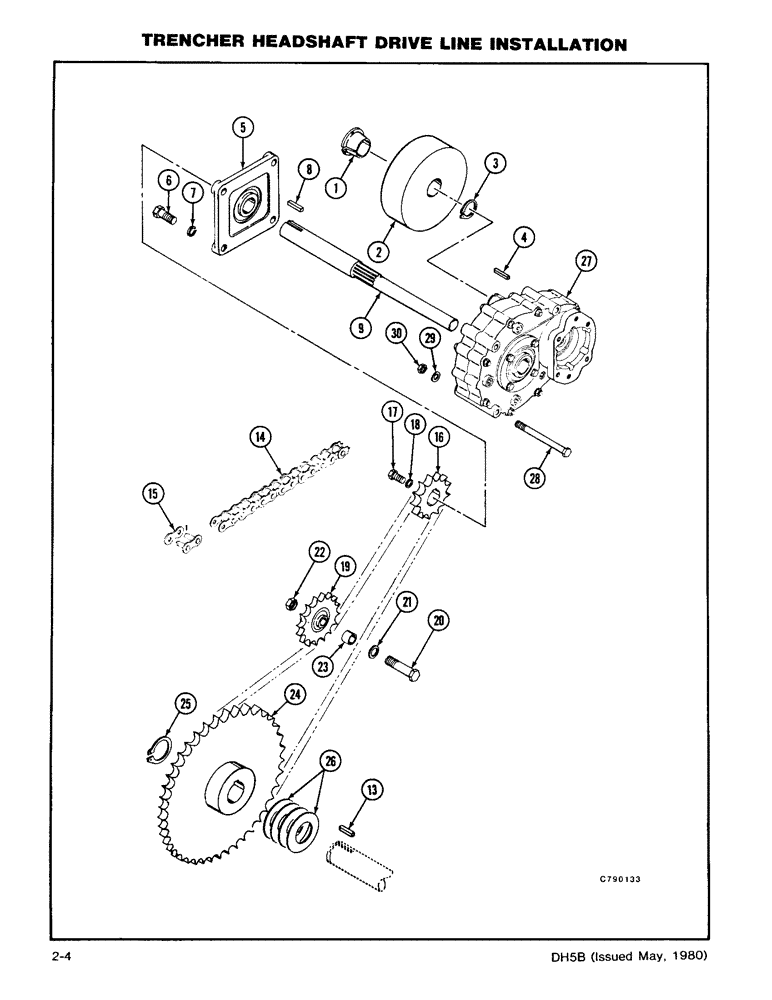

Запчасти Case DH5 (2-04) - TRENCHER HEADSHAFT DRIVE LINE INSTALLATION (89) - TOOLS

1

H758425

BUSHING

- Split Taper

1шт.

2

H374074

FLYWHEEL

1шт.

3

A7409

SNAP RING,#137, Ext

Ring, Snap, #137, Ext

1шт.

4

H376806

KEY

- Square

1шт.

5

F96571

BEARING

Includes: Ref. 6 and 7

1шт.

6

113-508

BOLT,Hex, 9/16" - 12 x 1-1/2", Gr 5, Full Thd

4шт.

7

192-24

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

4шт.

8

H182105

KEY

- Square (3/8 x 1 1/14)

1шт.

9

H397547

SHAFT

1шт.

For a shaft with splines on both ends use P/N H428078.

1шт.

10

F62235

SNAP RING,#112, Ext

Ring, Snap, #112, Ext

1шт.

11

R12650

BUSHING

WASHER - Flat

1шт.

12

NSS

NOT SOLD SEPARAT

DELETED

1шт.

13

H219287

KEY

- Square

1шт.

14

H757864

CHAIN (AG)

CHAIN - (ASA #80 - 68 Pitches), Includes: Ref. 15

1шт.

15

60961

DRAG LINK

LINK - Connector (#80)

1шт.

16

H643544

DRIVE SPROCKET

SPROCKET, Includes: Ref. 17 and 18

1шт.

Ref. 16, Sprocket with splines in I.D.

1шт.

17

114-409

BOLT,Hex, 1/2" - 20 x 1", Gr 5, Full Thd

1шт.

18

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

19

H747436

DRIVE SPROCKET

SPROCKET - Idler, Includes: Ref. 20 - 22

1шт.

20

113-716

BOLT,Hex, 3/4" - 10 x 3", Gr 5

1шт.

21

195-545

WASHER,3/4", SAE

- Flat (3/4)

1шт.

22

131-1131

LOCK NUT,3/4"-10, GA

NUT - NC Hex C/L (3/4)

1шт.

23

H390989

SPACER

1шт.

24

H343756

DRIVE SPROCKET

SPROCKET

1шт.

25

D23191

SNAP RING,#200, Ext

Ring, Snap, #200, Ext

1шт.

26

L12293

SHIM

1шт.

27

H650952

GEARBOX ASSY

GEARBOX - Trencher Drive ( See Fig. 2-34), Includes: Ref. 28 - 30

1шт.

28

113-436

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5

2шт.

29

195-533

WASHER,1/2", SAE

- Flat (1/2)

2шт.

30

131-1182

LOCK NUT,1/2"-13, GA

NUT - NC Hex C/L (1/2)

2шт.

Ref. 24- 36 tooth, 12" dia.. for 30 tooth, 12.7

1шт.

Dia. order H415885.

1шт.

H413658 - 11 TOOTH

1шт.

H423509 - 10 TOOTH

1шт.
