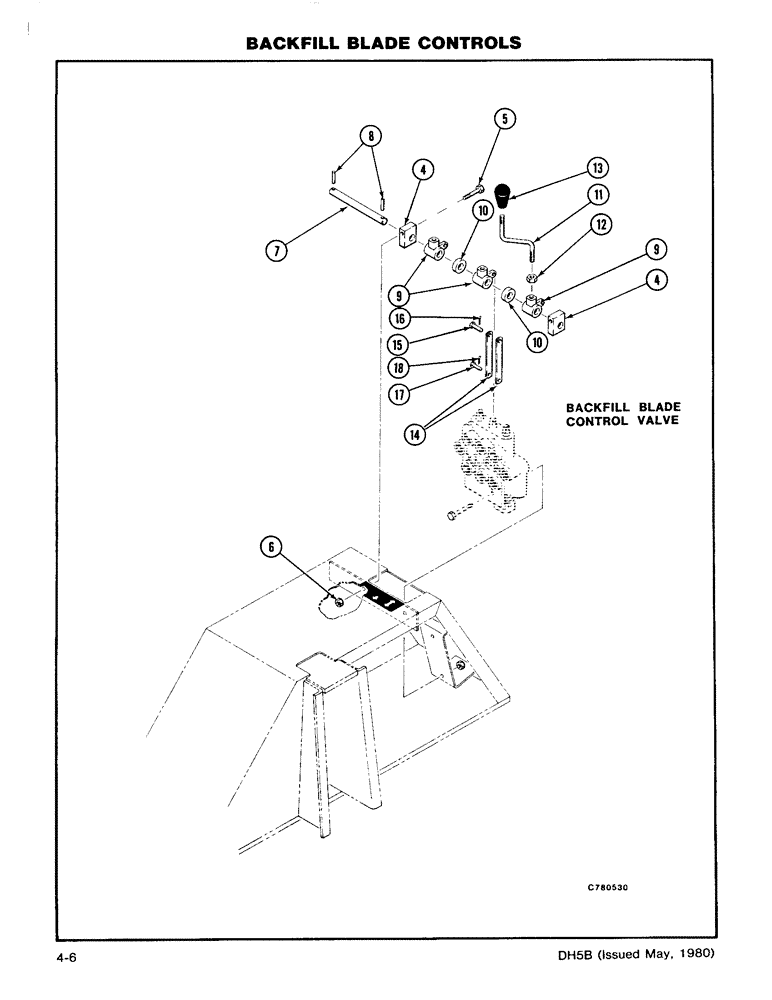

Запчасти Case DH5 (4-06) - BACKFILL BLADE CONTROLS (86) - DOZER

4

H558403

BLOCK

Includes: Ref. 5 and 6

2шт.

5

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- NC HH (5/16 x 1 3/4)

2шт.

6

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - NC Hex C/L (5/16)

2шт.

7

H356717

SHAFT

Includes: Ref. 8

1шт.

8

138-97

LOCK PIN,3/16" x 1 1/8", Slotted

PIN, 3/16" x 1 1/8", Slotted

2шт.

9

H275255

CRANK LEVER

CASTING - Lever

3шт.

10

H26468

SPACER

2шт.

11

H259796

LEVER

3шт.

Used With Rear Mounted Backfill Blade

1шт.

12

H191916

ROD

LEVER

3шт.

Used With Front Mounted Backfill Blade

1шт.

12

87016560

JAM NUT,Jam, 3/8"-16, G5

3шт.

13

A14051

GRIP

KNOB

3шт.

14

H261016

LINK

Includes: Ref. 15 - 18

6шт.

15

H35279

AXLE PIN,4.72mm OD x 23.76mm L

PIN - Clevis (3/16 x 57/64)

3шт.

16

132-328

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

3шт.

17

D23693

AXLE PIN

PIN - Clevis (1/4 x 1)

3шт.

18

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

3шт.
