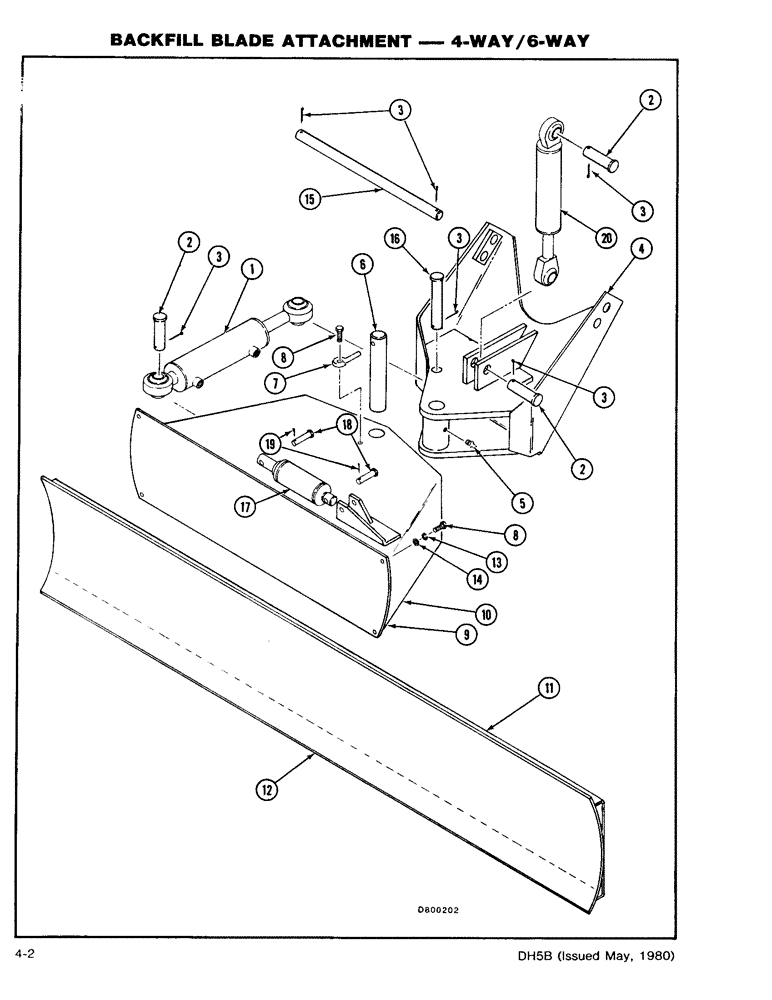

Запчасти Case DH5 (4-02) - BACKFILL BLADE ATTACHMENT - 4-WAY/6-WAY (86) - DOZER

1

H641266

CYLINDER

ANGLE CYLINDER ASSEMBLY - (See Fig. 4-18)

1шт.

2

H70623

AXLE PIN

PIN - Clevis (1 x 3 1/2)

3шт.

3

132-307

COTTER PIN,1/4" x 1 3/4"

PIN, Split (Cotter), 1/4" x 1 3/4"

6шт.

4

H638544

PIVOT

- Backfill Blade

1шт.

5

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

6

H369892

AXLE PIN

PIN - Pivot

1шт.

7

H36509

AXLE PIN

PIN - Retainer

1шт.

8

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

5шт.

9

H649343

MOUNTING PARTS

MOUNTING - Blade - 6-Way

1шт.

10

H638536

BLADE

MOUNTING - Blade - 4-Way (not shown)

1шт.

11

H649350

HALF BLADE

BLADE - Backfill, Includes: Ref. 12

1шт.

12

H209775

BLADE

- Lower (weld on)

1шт.

13

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

14

195-525

WASHER,3/8", SAE

- Flat (3/8)

4шт.

15

H383505

SHAFT

- Pivot

1шт.

16

H80440

AXLE PIN

PIN - Clevis (1 x 5 7/8)

1шт.

17

H621060

CYLINDER BLOCK

TILT CYLINDER ASSEMBLY - 6-Way Only

1шт.

18

H382416

CLEVIS PIN

PIN - Clevis (1/2 x 2) - 6-Way Only

2шт.

19

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), , 6-Way Only 1/8" x 1"

2шт.

20

H624528

STEERING CYLINDER

LIFT CYLINDER ASSEMBLY - (See Fig. 4-22)

1шт.
