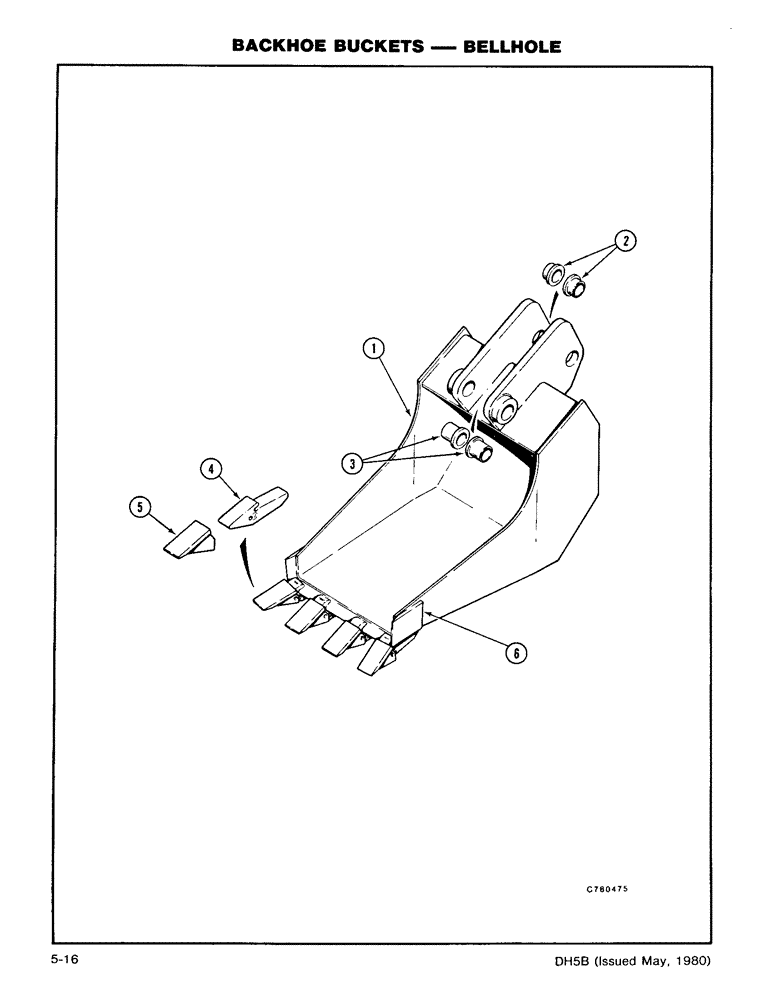

Запчасти Case DH5 (5-16) - BACKHOE BUCKETS - BELLHOLE (84) - BOOMS, DIPPERS & BUCKETS

1

NSS

NOT SOLD SEPARAT

BUCKET ASSEMBLY - 12", Includes: Ref. 2 - 6

1шт.

Machinery Item - See Equipment Price List

1шт.

2

H50823

BUSHING

- Cylinder Pin

2шт.

3

H56184

BUSHING,29.08mm ID x 44.5mm OD x 28.6mm L

- Bucket Hinge

2шт.

4

H61283

TOOTH

SHANK - Tooth

4шт.

5

T41166

TOOTH

POINT - Tooth

4шт.

6

H61424

HALF BLADE

BLADE - 12" Bucket

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET ASSEMBLY 18", Includes: Ref. 2 - 6

1шт.

Machinery Item - See Equipment Price List

1шт.

2

H50823

BUSHING

- Cylinder Pin

2шт.

3

H56184

BUSHING,29.08mm ID x 44.5mm OD x 28.6mm L

- Bucket Hinge

2шт.

4

H61283

TOOTH

SHANK - Tooth

4шт.

5

T41166

TOOTH

POINT - Tooth

4шт.

6

H61432

HALF BLADE

BLADE - 18" Bucket

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET ASSEMBLY - 22", Includes: Ref. 2 - 6

1шт.

Machinery Item - See Equipment Price List

1шт.

2

H50823

BUSHING

- Cylinder Pin

2шт.

3

H56184

BUSHING,29.08mm ID x 44.5mm OD x 28.6mm L

- Bucket Hinge

2шт.

4

H61283

TOOTH

SHANK - Tooth

5шт.

5

T41166

TOOTH

POINT - Tooth

5шт.

6

H61440

HALF BLADE

BLADE - 22" Bucket

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET ASSEMBLY - 36", Includes: Ref. 2 - 6

1шт.

Machinery Item - See Equipment Price List

1шт.

2

H50823

BUSHING

- Cylinder Pin

2шт.

3

H56184

BUSHING,29.08mm ID x 44.5mm OD x 28.6mm L

- Bucket Hinge

2шт.

4

H61283

TOOTH

SHANK - Tooth

7шт.

5

T41166

TOOTH

POINT - Tooth

7шт.

6

H61457

BLADE

- 36" Bucket

1шт.
