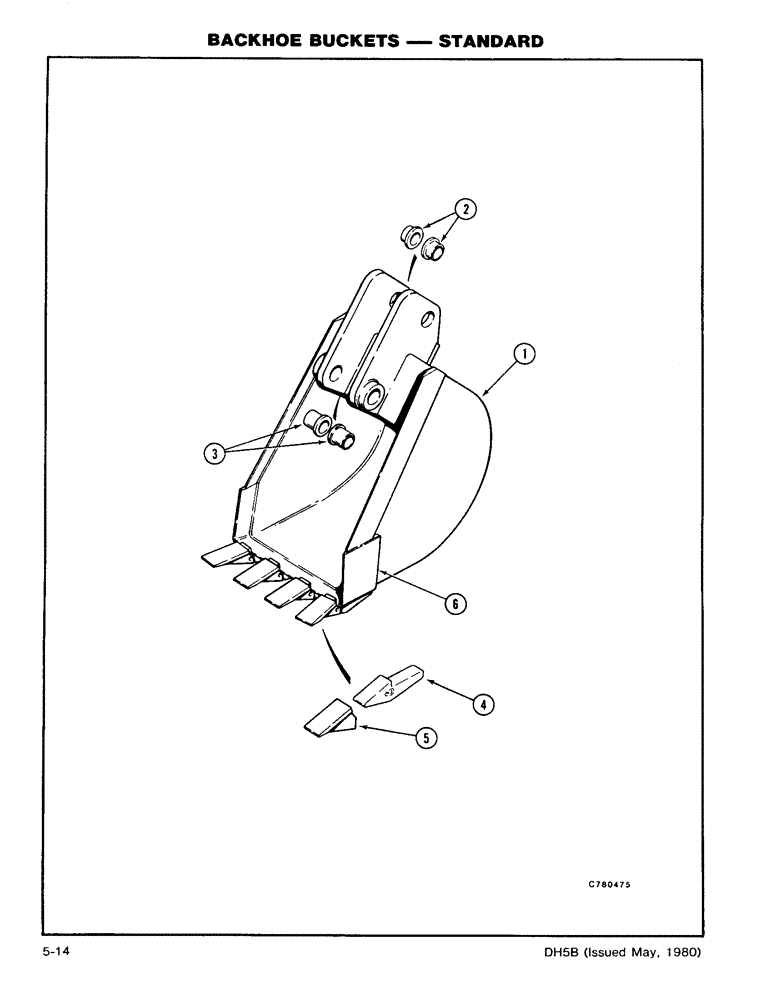

Запчасти Case DH5 (5-14) - BACKHOE BUCKETS - STANDARD (84) - BOOMS, DIPPERS & BUCKETS

1

NSS

NOT SOLD SEPARAT

BUCKET ASSEMBLY - 12", Includes: Ref. 2 - 6

1шт.

Machinery Item - See Equipment Price List

1шт.

2

H50823

BUSHING

- Cylinder Pin

2шт.

3

H56184

BUSHING,29.08mm ID x 44.5mm OD x 28.6mm L

- Bucket Hinge

2шт.

4

H36657

TOOTH

SHANK - Tooth

4шт.

5

T41166

TOOTH

POINT - Tooth

4шт.

6

H51565

EDGE, CUTTING

BLADE - 12" Bucket

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET ASSEMBLY - 16", Includes: Ref. 2 - 6

1шт.

Machinery Item - See Equipment Price List

1шт.

2

H50823

BUSHING

- Cylinder Pin

2шт.

3

H56184

BUSHING,29.08mm ID x 44.5mm OD x 28.6mm L

- Bucket Hinge

2шт.

4

H36657

TOOTH

SHANK - Tooth

4шт.

5

T41166

TOOTH

POINT - Tooth

4шт.

6

H51615

EDGE, CUTTING

BLADE - 16" Bucket

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET ASSEMBLY - 20", Includes: Ref. 2 - 6

1шт.

Machinery Item - See Equipment Price List

1шт.

2

H50823

BUSHING

- Cylinder Pin

2шт.

3

H56184

BUSHING,29.08mm ID x 44.5mm OD x 28.6mm L

- Bucket Hinge

2шт.

4

H36657

TOOTH

SHANK - Tooth

4шт.

5

T41166

TOOTH

POINT - Tooth

4шт.

6

H51664

EDGE, CUTTING

BLADE - 20" Bucket

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET ASSEMBLY - 24", Includes: Ref. 2 - 6

1шт.

Machinery Item - See Equipment Price List

1шт.

2

H50823

BUSHING

- Cylinder Pin

2шт.

3

H56184

BUSHING,29.08mm ID x 44.5mm OD x 28.6mm L

- Bucket Hinge

2шт.

4

H36657

TOOTH

SHANK - Tooth

5шт.

5

T41166

TOOTH

POINT - Tooth

5шт.

6

H50781

HALF BLADE

BLADE - 24" Bucket

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET ASSEMBLY - 36", Includes: Ref. 2 - 6

1шт.

Machinery Item - See Equipment Price List

1шт.

2

H50823

BUSHING

- Cylinder Pin

2шт.

3

H56184

BUSHING,29.08mm ID x 44.5mm OD x 28.6mm L

- Bucket Hinge

2шт.

4

H36657

TOOTH

SHANK - Tooth

7шт.

5

T41166

TOOTH

POINT - Tooth

7шт.

6

H51714

EDGE

BLADE - 36" Bucket

1шт.
