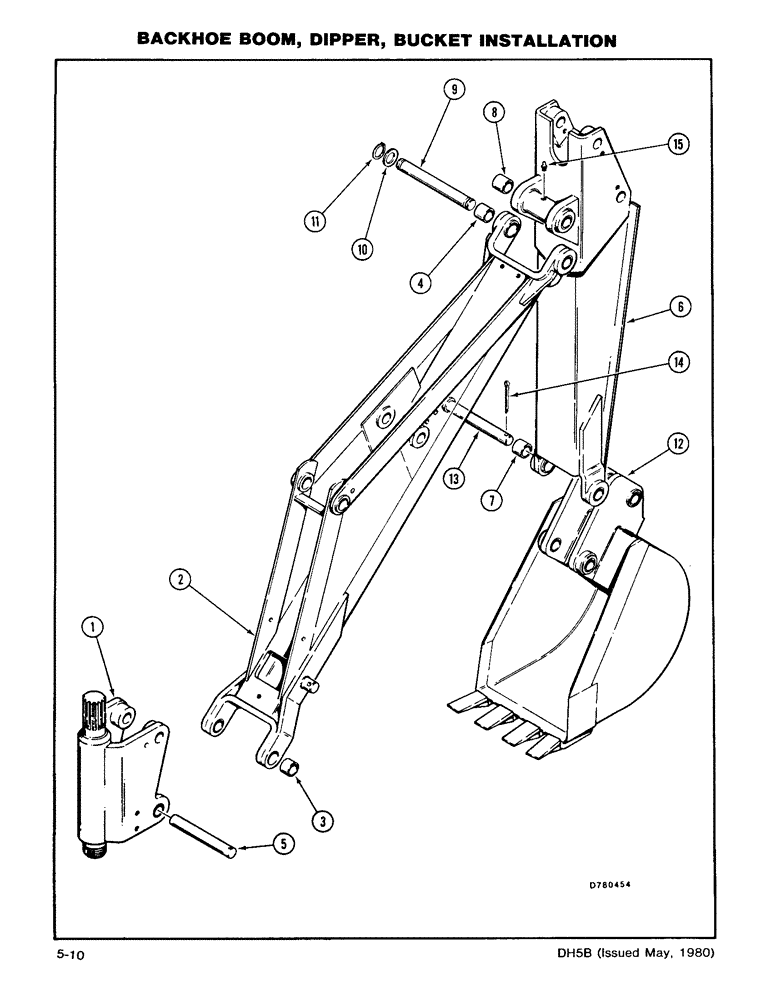

Запчасти Case DH5 (5-10) - BACKHOE BOOM, DIPPER, BUCKET INSTALLATION (84) - BOOMS, DIPPERS & BUCKETS

1

NSS

NOT SOLD SEPARAT

KINGPOST (See Fig. 5-4)

1шт.

2

H644922

BOOM

ASSEMBLY - D-100XR, Includes: Ref. 3 - 5

1шт.

3

H50435

BUSHING,28.91mm ID x 36.63mm OD x 25.4mm L

2шт.

4

H56184

BUSHING,29.08mm ID x 44.5mm OD x 28.6mm L

2шт.

5

H50526

PIN

- (1 1/4 x 8 3/16)

1шт.

6

H645234

BOOM

DIPPERSTICK ASSEMBLY - D 100XR, Includes: Ref. 7 - 11

1шт.

7

H56184

BUSHING,29.08mm ID x 44.5mm OD x 28.6mm L

2шт.

8

H56192

BUSHING,28.91mm ID x 36.63mm OD x 44.45mm L

2шт.

9

H50658

PIVOT

PIN - (1 1/8 x 9 1/16)

1шт.

10

195-454

WASHER,1.140" x 1 7/8" x .032"

- Special (1 1/8)

1шт.

11

F62235

SNAP RING,#112, Ext

Ring, Snap, #112, Ext

2шт.

12

NSS

NOT SOLD SEPARAT

BUCKET (See Figs. 5-14 And 5-16), Includes: Ref. 13 and 14

1шт.

13

H50682

PIN

- Clevis (1 1/8 x 8 3/4)

1шт.

14

132-355

COTTER PIN,3/8" x 2"

Pin, Split (Cotter), 3/8" x 2"

1шт.

15

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.
