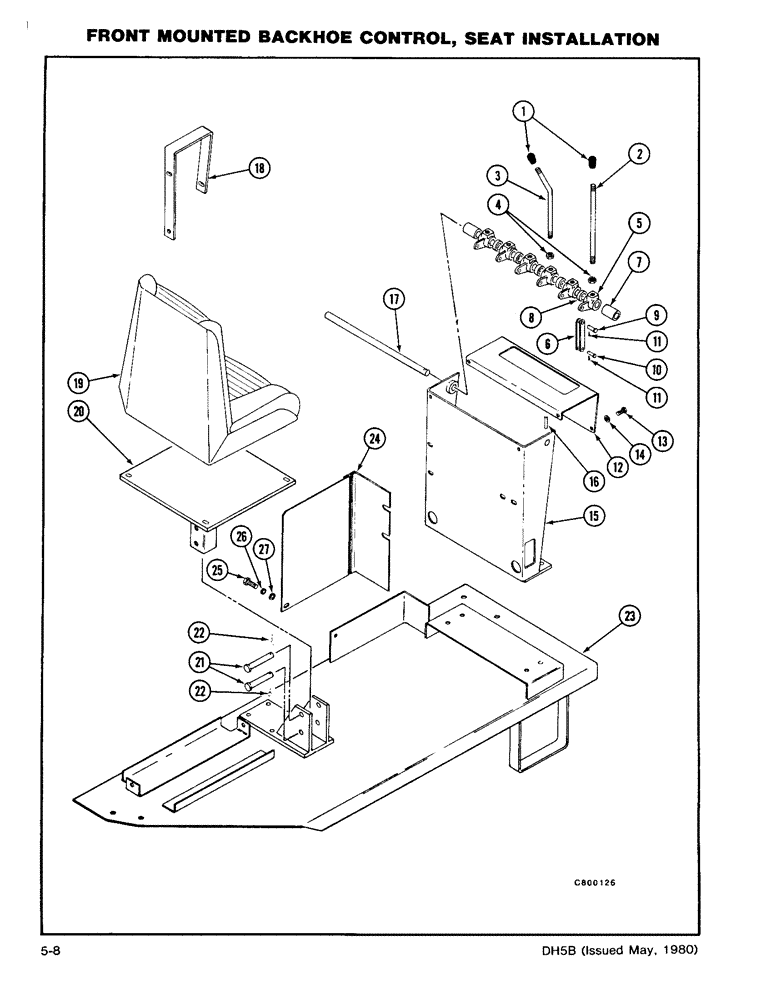

Запчасти Case DH5 (5-08) - FRONT MOUNTED BACKHOE CONTROL, SEAT INSTALLATION (84) - BOOMS, DIPPERS & BUCKETS

1

A14051

GRIP

KNOB

6шт.

2

H191916

ROD

HANDLE - Valve Control

4шт.

3

H191924

LEVER

HANDLE - Valve Control

2шт.

4

87016560

JAM NUT,Jam, 3/8"-16, G5

6шт.

5

H275255

CRANK LEVER

CASTING - Lever

6шт.

6

H219006

DRAG LINK

LINK - Valve Lever

6шт.

7

H195099

SPACER

- Long

2шт.

8

H191908

SPACER

- Short

5шт.

9

H169318

CLEVIS COUPLING,6.35mm OD x 22.62mm L

PIN - Clevis (1/4 x 3/4)

6шт.

10

H35279

AXLE PIN,4.72mm OD x 23.76mm L

PIN - Clevis (3/16 x 57/64)

6шт.

11

132-328

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

12шт.

12

H50880

COVER

- Valve Linkage

1шт.

13

187-1069

SELF-TAP SCREW,5/16" - 18 x 3/4"

BOLT - NC HH - Self Tapping (5/16 x 3/4)

4шт.

14

195-521

WASHER,5/16", SAE

- Flat (5/16)

4шт.

15

H514588

SUPPORT

CONSOLE - Valve

1шт.

16

138-97

LOCK PIN,3/16" x 1 1/8", Slotted

PIN, 3/16" x 1 1/8", Slotted

1шт.

17

H50914

LEVER

SHAFT - Valve Lever

1шт.

18

H390732

HANDLE

GRIP - Hand

1шт.

19

H594556

SEAT

1шт.

20

H646471

POST

- Seat

1шт.

21

H120220

CLEVIS

PIN - Clevis

2шт.

22

136-114

COTTER PIN,Int, 5/16" x .120"

PIN - Hair

2шт.

23

H649251

PLATE - Floor

1шт.

24

H652545

SHIELD

- Heat

1шт.

25

113-312

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

3шт.

26

195-529

WASHER,7/16", SAE

- Flat (7/16)

3шт.

27

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

3шт.

Side Rails for Seat (Ref. 19) N8322 R.H. and N8321 L.H.

1шт.

Wholegoods kits for the 2 stick conversions are h939073 for the vertical valve and h934406 for the horizontal valve.

1шт.
