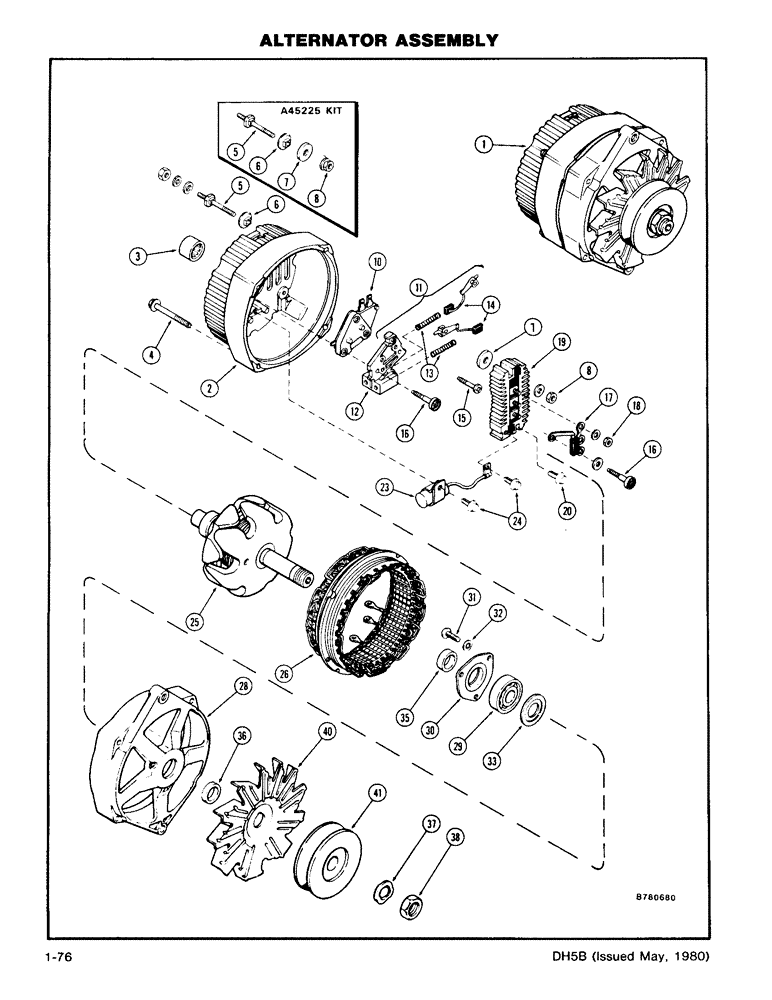

Запчасти Case DH5 (1-76) - ALTERNATOR ASSEMBLY (55) - ELECTRICAL SYSTEMS

1

A139389

ALTERNATOR

ALTERNATOR ASSEMBLY - 37 amp (Delco #1102898) (Order A45201 Alternator, A43384 Fan & A51561 Pulley) (Production Only), Includes: Ref. 2 - 38

1шт.

A45201

ALTERNATOR

ALTERNATOR ASSEMBLY - 42 amp (Delco #1100583) (Less Pulley & Fan) (Repairs Only), Includes: Ref. 2 - 38

1шт.

87297244

REMAN-ALTERNATOR

Reman for New P/N A45201

1шт.

87297245

CORE-ALTERNATOR

Return Number

1шт.

103798A1GV

ALTERNATOR

Value, 12V, 63A

1шт.

103798A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 63 ampere

1шт.

103798A1C

CORE-ALTERNATOR

Return Number

1шт.

103799A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT, 63 AMP Alternator

1шт.

103799A1C

CORE-ALTERNATOR

Return Number, 12 VOLT, 63 AMP Alternator

1шт.

2

A45217

FRAME

FRAME ASSEMBLY - Slip Ring End, Includes: Ref. 3

1шт.

3

A45218

BEARING ASSY

BEARING - Roller

1шт.

4

163-6

SCREW,Hex, #10 - 24 x 1 3/4"

BOLT - Thru (#10-24 x 1 3/4 Hex Washer Hd)

4шт.

A45225

MULTIPOLE CONNECTOR

KIT - Terminal, Battery, Includes: Ref. 5 - 8

1шт.

5

NSS

NOT SOLD SEPARAT

STUD - Terminal

1шт.

6

NSS

NOT SOLD SEPARAT

INSULATION - Stud

1шт.

7

NSS

NOT SOLD SEPARAT

WASHER - Insulating

1шт.

8

NSS

NOT SOLD SEPARAT

NUT - Terminal

2шт.

10

A45213

REGULATOR

REGULATOR - Voltage

1шт.

11

A45222

BRUSH, COMMUTATOR

BRUSH BRUSH HOLDER ASSEMBLY - (Includes Brushes), Includes: Ref. 12 - 14

1шт.

12

NSS

NOT SOLD SEPARAT

HOLDER - Brush

1шт.

13

A43678

SPRING

SPRING - Brush

2шт.

14

NSS

NOT SOLD SEPARAT

BRUSH - Commutator

2шт.

15

A45224

SCREW,0.164" - 32 x 1 7/64"

SCREW - Brush Holder, Grounded

1шт.

16

A45223

SCREW,Spcl, #8 - 32 x 1 1/8"

SCREW - Brush Holder, Insulated

2шт.

17

A45219

DIODE ELEMENT

DIODE - Trio

1шт.

18

129-16

NUT,#8-32

NUT, #8-32

3шт.

19

A45220

PEDAL

RECTIFIER - Bridge

1шт.

20

A45221

SCREW,Hex Wshr Hd, #8 - 32 x 0.99"

SCREW - (#8-32 x 1)

1шт.

23

A45226

CAPACITOR

CAPACITOR ASSEMBLY - (Includes Bracket)

1шт.

24

A45228

SELF-TAP SCREW,Hex Wash Hd, #8-32 x .59", Spc

SCREW - 8-32 x 3/8)

2шт.

25

A45214

ROTOR

ROTOR ASSEMBLY (Includes Slip Ring)

1шт.

26

A45233

STATOR

STATOR ASSEMBLY - Field

1шт.

28

A45229

FRAME

FRAME - Drive End

1шт.

29

A45230

BEARING ASSY

BEARING - Ball, Drive End

1шт.

30

A44433

PLATE

PLATE - Bearing Retainer

1шт.

31

173-210

SCREW,Sl Rnd Hd, #10 - 24 x 3/8"

SCREW - 10-24 x 3/8 Rd Hd)

3шт.

32

195-512

WASHER,#10

WASHER - (7/32 x 7/16 x 1/16)

3шт.

33

A45232

WASHER

WASHER - Bearing, Grease Slinger)

1шт.

35

A44522

COLLAR

COLLAR - Rotor Shaft Inner (43/64 x 29/32 x 23/64)

1шт.

36

A72047

COLLAR

COLLAR - Rotor Shaft Outer (43/64 x 7/8 x 13/64)

1шт.

37

R16171

SPRING WASHER

WASHER - Lock

1шт.

38

A25546

NUT

NUT - Pulley & Fan Mounting

1шт.

40

A43384

FAN

FAN - Alternator Ventilating

1шт.

41

A51561

PULLEY

PULLEY - Drive

1шт.
