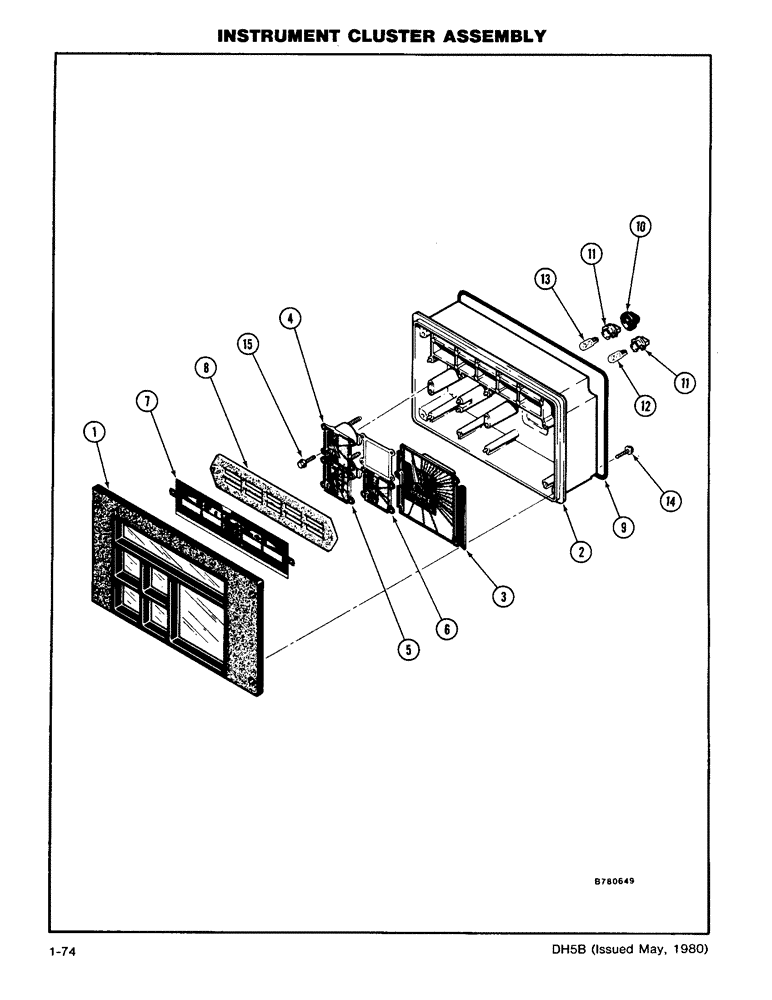

Запчасти Case DH5 (1-74) - INSTRUMENT CLUSTER ASSEMBLY (55) - ELECTRICAL SYSTEMS

H628610

CLUSTER

INSTRUMENT CLUSTER ASSEMBLY, Includes: Ref. 1 - 15

1шт.

1

D71334

LENS

- Identification

1шт.

2

D71335

CASE ASSY.

CASE ASSEMBLY - Cluster

1шт.

3

D71336

TACHOMETER

1шт.

3a

A137572

DRIVE

TACH includes gear

1шт.

4

D71337

ELECTRICAL GAUGE

GAUGE - Water Temperature

1шт.

5

D71338

ELECTRICAL GAUGE

GAUGE - Fuel Level

1шт.

6

D71339

VOLTMETER

GAUGE - Voltmeter

1шт.

7

H348565

TAG

STRIP - Identification

1шт.

8

D71342

GASKET,3.05mm Thk

- Lens

1шт.

9

D71343

GASKET,4.45mm Thk x 249.68mm ID

- Cluster

2шт.

10

D71344

COVER

BOOT - Socket

3шт.

11

L35949

SOCKET/RECEPTACLE

SOCKET - Lamp, Green

9шт.

12

D71346

TAIL LAMP,12V

LAMP - Cluster (#194)

6шт.

13

W10478

LAMP

- Cluster (#168)

3шт.

14

164-15

HEX SOC SCREW,Flat Hd, #6 - 32 x 3/4"

SCREW - (#6 x 3/4")

4шт.

15

164-13

SCREW - (#6 x 1/2")

8шт.
