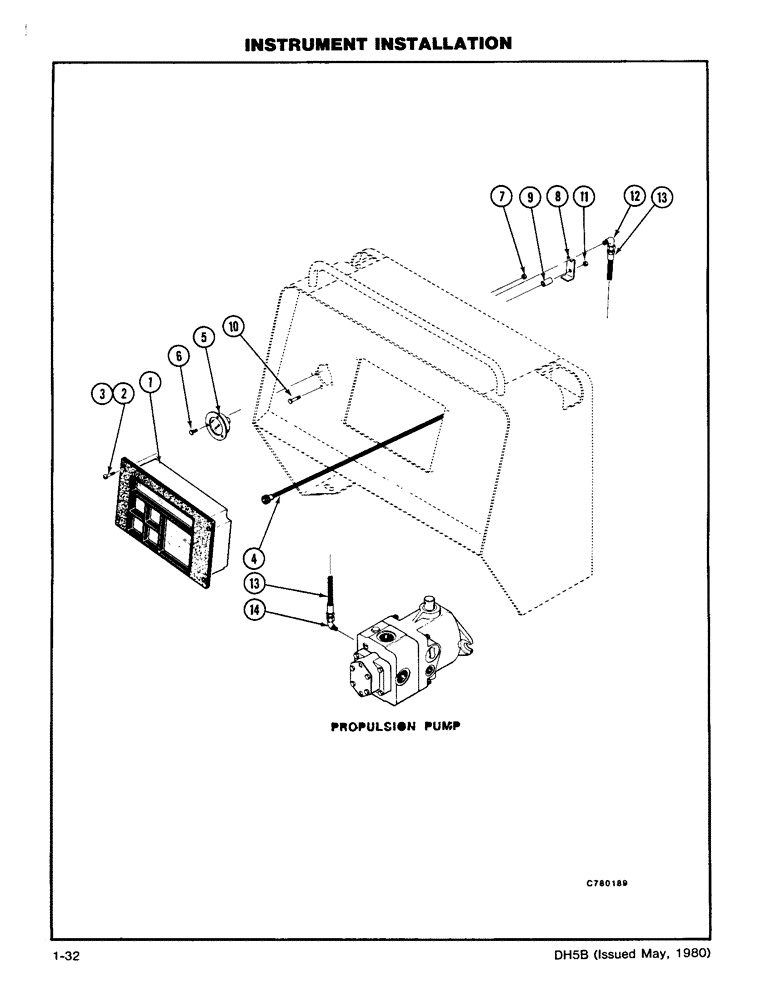

Запчасти Case DH5 (1-32) - INSTRUMENT INSTALLATION (55) - ELECTRICAL SYSTEMS

1

H628610

CLUSTER

- Instrument (See Fig. 1-74), Includes: Ref. 2 and 3

1шт.

2

173-212

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

- Round Head (#10-24 x 1/2)

4шт.

3

131-1142

LOCK NUT,Hex, #10 - 24, Gr A

NUT, LOCK, #10-24, GA

4шт.

4

D68851

CABLE

- Tachometer

1шт.

5

H371955

PACKAGE

GAUGE - Pressure, Includes: Ref. 6 and 7

1шт.

6

173-203

SCREW,Sl Rnd Hd, #6 - 32 x 1/2"

- Machine (#6-32 x 1/2)

3шт.

7

129-15

NUT,#6-32

3шт.

8

H367169

ANGLE

- Gauge Support

1шт.

9

H367177

SPACER

Includes: Ref. 10 and 11

1шт.

10

113-5

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

Hex, 1/4"- 20 x 1 1/2", G5

1шт.

11

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

1шт.

12

218-513

ELBOW,90 Degree, 9/16"-18, 37 Degree x 1/4"-18, Fem NPTF

- 90 degree

1шт.

13

H367185

HOSE

- 1/4 x 30 (1/4 FNPT x 9/16 JIC M)

1шт.

14

218-1094

ELBOW,45 Degree, 9/16-18" NPTF x 1/8"-27 37 Degree

- 45 degree

1шт.
