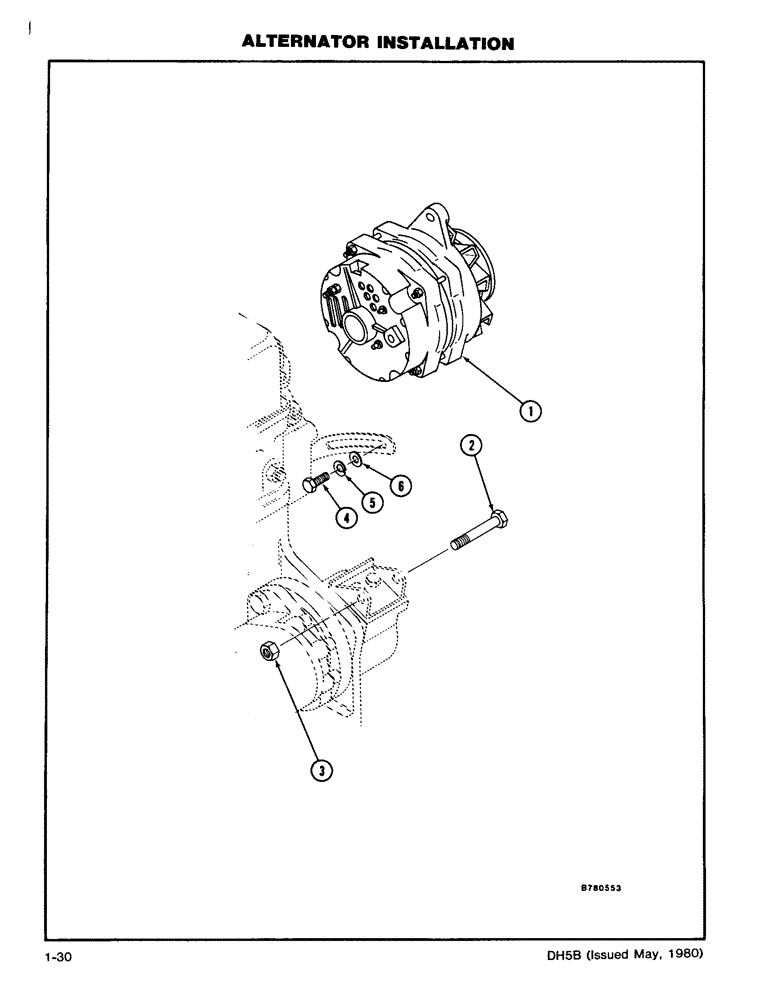

Запчасти Case DH5 (1-30) - ALTERNATOR INSTALLATION (55) - ELECTRICAL SYSTEMS

1

A139389

ALTERNATOR

ALTERNATOR ASSEMBLY (See Fig. 1-76), Includes: Ref. 2 - 6

1шт.

1

103799A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT, 63 AMP Alternator

1шт.

1

103799A1C

CORE-ALTERNATOR

Return Number, 12 VOLT, 63 AMP Alternator

1шт.

2

113-241

BOLT,Hex, 3/8" - 16 x 3", Gr 5

BOLT, Hex, 3/8"-16 x 3", G5

1шт.

3

230-4216

LOCK NUT,3/8"-16, GA

NUT - NC Hex C/L (3/8)

1шт.

4

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT, Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

5

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

6

195-521

WASHER,5/16", SAE

WASHER - Flat (5/16)

1шт.
