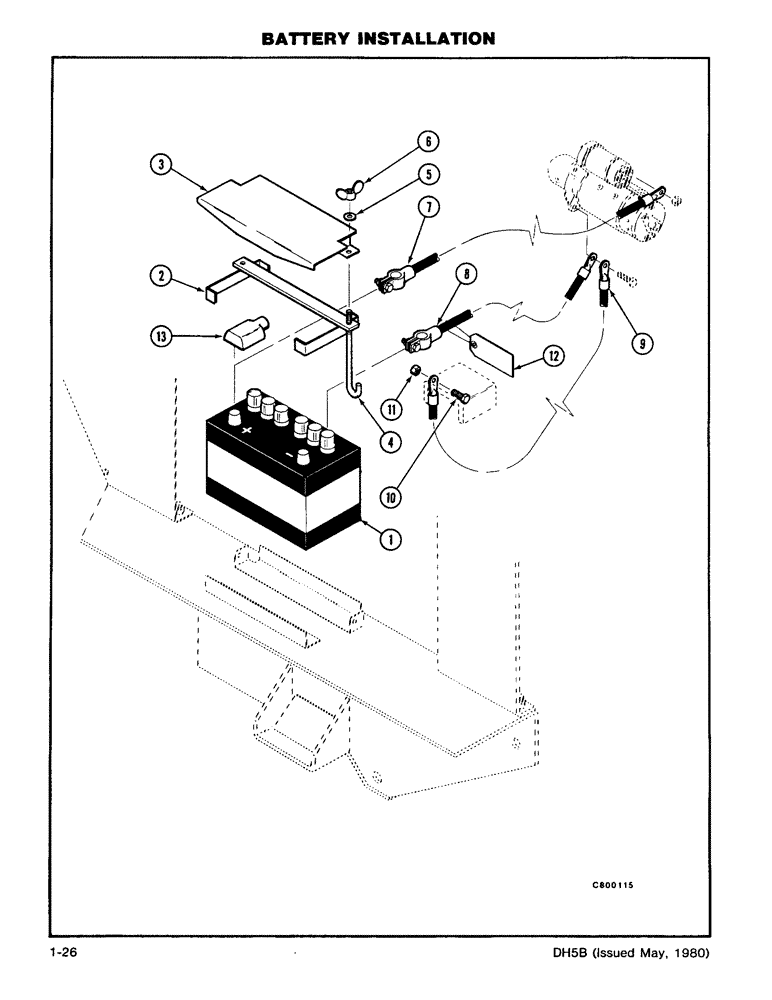

Запчасти Case DH5 (1-26) - BATTERY INSTALLATION (55) - ELECTRICAL SYSTEMS

1

A60878

BATTERY

- Dry

1шт.

A60553

CAP

- Battery

6шт.

2

H578302

BATTERY BOX

HOLD-DOWN - Battery

1шт.

3

H614750

COVER

- Battery

1шт.

Ref.2 & 3, Replaced by H409821.

1шт.

4

H43208

BOLT

BOLT - Battery, Includes: Ref. 5 and 6

2шт.

5

195-521

WASHER,5/16", SAE

- Flat (5/16)

2шт.

6

129-419

WING NUT,5/16"-18

NUT - Wing (5/16)

2шт.

7

H173781

CABLE

- Battery Positive

1шт.

8

H173781

CABLE

- Battery Negative

1шт.

9

H139568

CABLE

- Solenoid to Ground, Includes: Ref. 10 and 11

1шт.

10

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

11

230-4216

LOCK NUT,3/8"-16, GA

NUT - NC Hex C/L (3/8)

1шт.

12

H198457

TAG

- Ground Cable

1шт.

13

H102681

COVER ASSY

COVER - Battery Terminal

1шт.
