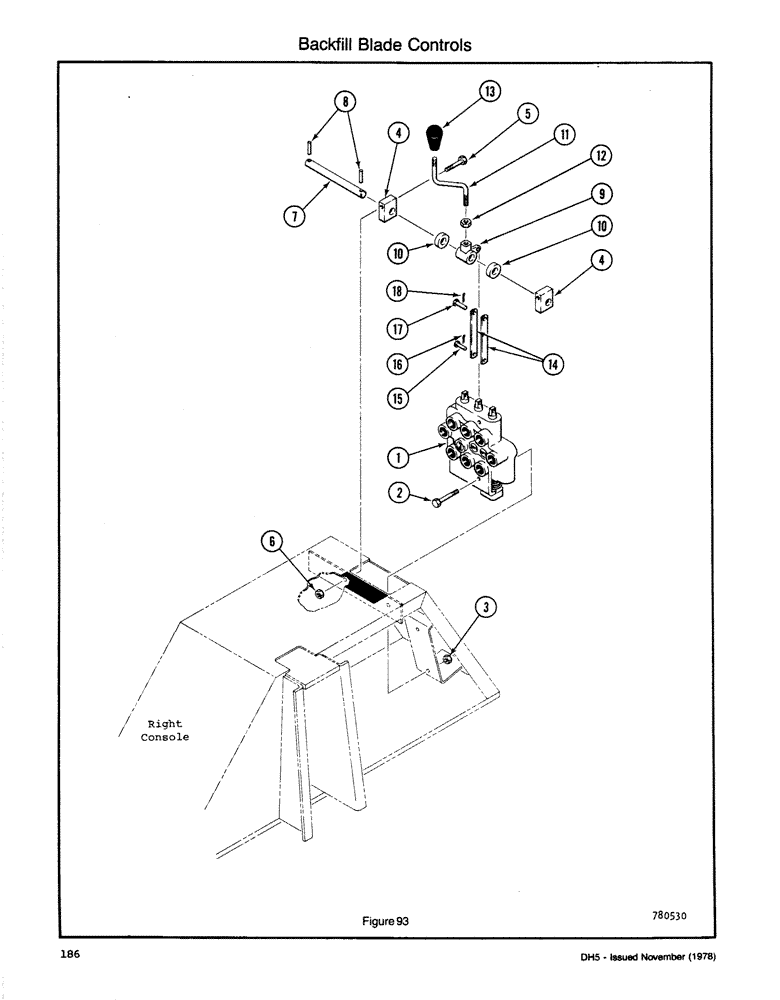

Запчасти Case DH5 (186) - BACKFILL BLADE CONTROLS (86) - DOZER

1

VALVE - Backfill Blade Control (See Figure 116)

1шт.

2

113-110

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

Hex, 5/16"-18 x 2 1/4", G5

2шт.

3

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - NC Hex C/L (5/16)

2шт.

4

H558403

BLOCK

2шт.

5

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- NC HH (5/16 x 1 3/4)

2шт.

6

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - NC Hex C/L (5/16)

2шт.

7

H356717

SHAFT

1шт.

8

138-97

LOCK PIN,3/16" x 1 1/8", Slotted

PIN, 3/16" x 1 1/8", Slotted

2шт.

9

H275255

CRANK LEVER

CASTING - Lever

3шт.

10

H26468

SPACER

2шт.

11

H259796

LEVER

used with rear mounted backfill blade

3шт.

11

H191916

ROD

LEVER, used with front mounted backfill blade

3шт.

12

87016560

JAM NUT,Jam, 3/8"-16, G5

3шт.

13

A14051

GRIP

KNOB

3шт.

14

H261016

LINK

6шт.

15

H35279

AXLE PIN,4.72mm OD x 23.76mm L

PIN - Clevis (3/16 x 57/64)

3шт.

16

132-328

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

3шт.

17

D23693

AXLE PIN

PIN - Clevis (1/4 x 1)

3шт.

18

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

3шт.
