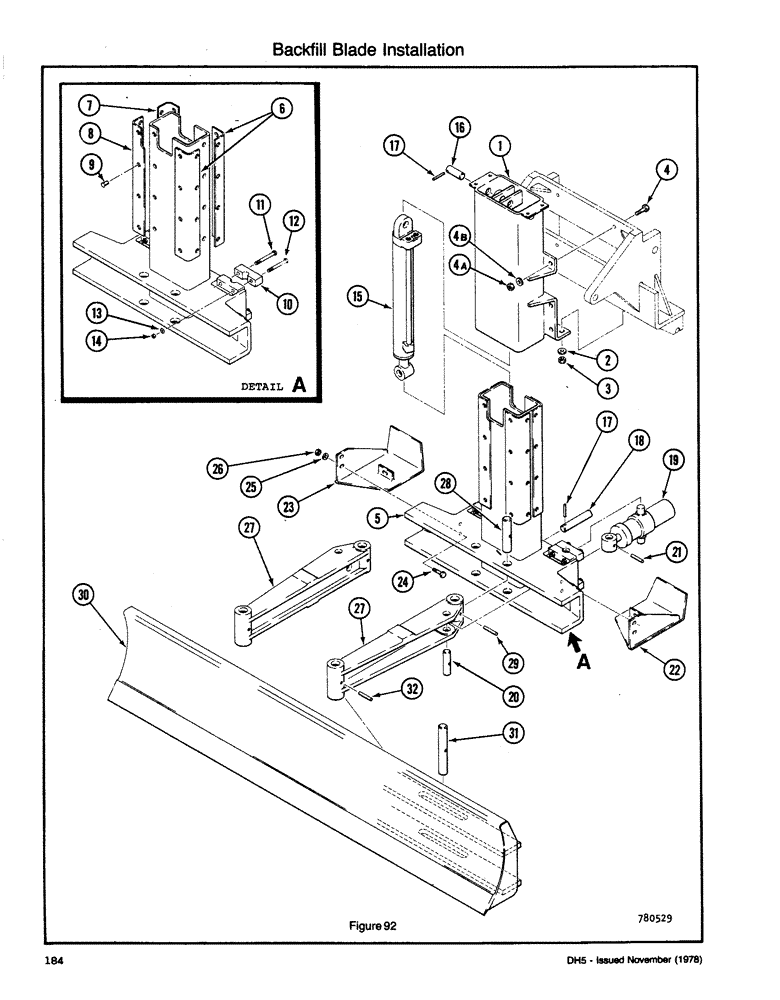

Запчасти Case DH5 (184) - BACKFILL BLADE INSTALLATION (86) - DOZER

1

H583849

BOX - Backfill Blade Mounting

1шт.

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

6шт.

2

195-533

WASHER,1/2", SAE

- Flat (1/2)

6шт.

3

131-1130

LOCK NUT,5/8"-11, GA

NUT - NC Hex C/L (1/2)

6шт.

4

113-600

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

2шт.

4a

131-1130

LOCK NUT,5/8"-11, GA

NUT - NC Hex C/L (5/8)

2шт.

4b

195-541

WASHER,5/8", SAE

- Flat (5/8)

2шт.

5

H635987

FRAME ASSEMBLY - Backfill Blade

1шт.

6

H260026

BEARING

BUSHING - Slide

2шт.

7

H362186

BUSHING - Slide

1шт.

8

H362194

BUSHING - Slide

1шт.

9

46-514

RIVET,Csk, 5/16" x 7/8"

- Countersink (3/16 x 7/8)

32шт.

10

H264804

CLAMP

BLOCK

4шт.

11

26-656

CAPSCREW,Hex, 3/8" x 3 1/2", Gr 8

BOLT - NC HH (3/8 x 3 1/2)

4шт.

12

H718866

BOLT

BOLT - NC HH (3/8 x 3 1/4)

4шт.

13

195-525

WASHER,3/8", SAE

8шт.

14

131-1216

LOCK NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

8шт.

15

CYLINDER ASSEMBLY - Backfill Blade Lift (See Figure 128)

1шт.

16

H191429

AXLE PIN

PIN (1 x 2 9/16)

1шт.

17

138-142

LOCK PIN,1/4" x 2", Slotted

PIN, 1/4" x 2", Slotted

2шт.

18

H274498

AXLE PIN

PIN - (1 x 5 1/8)

1шт.

19

CYLINDER ASSEMBLY - Backfill Blade Angle (See Figure 130)

2шт.

20

H248732

CYLINDER BLOCK

PIN (1 x 3 5/8)

2шт.

21

138-177

LOCK PIN,3/8" x 2", Slotted

PIN, 3/8" x 2", Slotted

2шт.

22

H613737

SHIELD

- Cylinder (R/H)

1шт.

23

H613729

SHIELD

- Cylinder (L/H)

1шт.

24

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

25

195-525

WASHER,3/8", SAE

4шт.

26

230-4216

LOCK NUT,3/8"-16, GA

NUT - NC Hex C/L (3/8)

4шт.

27

H248609

ARM

- Cylinder

2шт.

28

H248724

AXLE PIN

PIN (1 1/4 x 5 1/4)

2шт.

29

138-178

LOCK PIN,3/8" x 2 1/4", Slotted

PIN, 3/8" x 2 1/4", Slotted

2шт.

30

H633529

BLADE

1шт.

31

H249011

AXLE PIN

PIN - Slide (1 1/4 x 7 3/4)

2шт.

32

138-178

LOCK PIN,3/8" x 2 1/4", Slotted

PIN, 3/8" x 2 1/4", Slotted

2шт.
