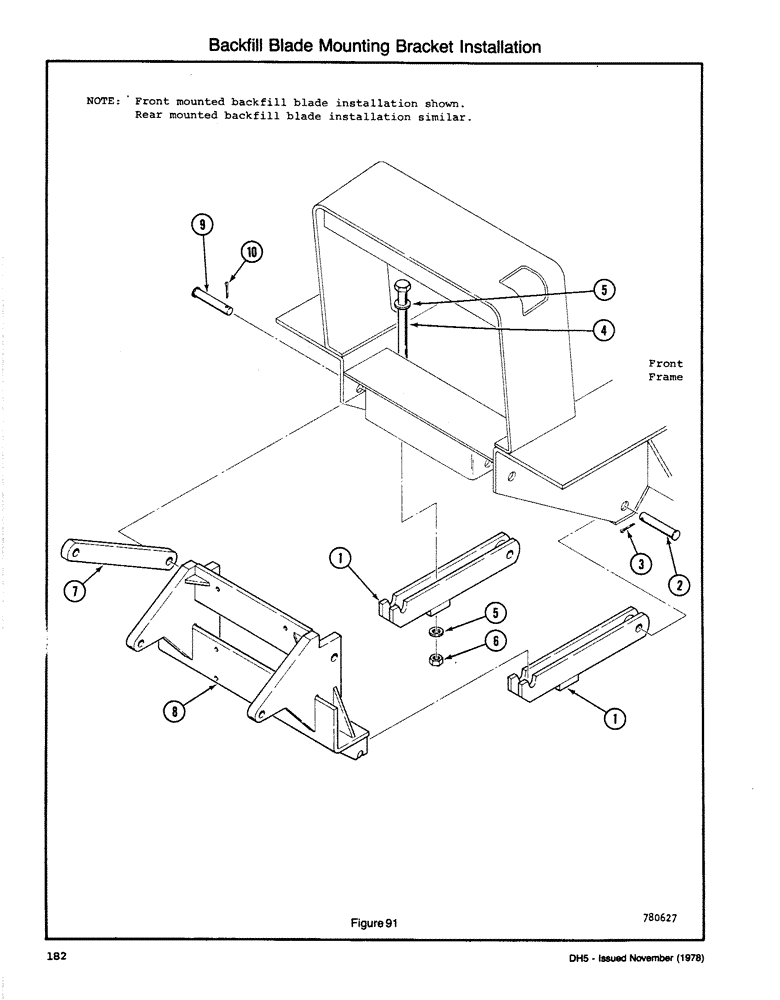

Запчасти Case DH5 (182) - BACKFILL BLADE MOUNTING BRACKET INSTALLATION (86) - DOZER

1

H641340

BRACKET - Hitch

2шт.

2

H56606

AXLE PIN,30.16mm OD x 142.08mm L

PIN - Clevis (1 x 5 1/4)

2шт.

3

132-349

COTTER PIN,1/4" x 1 1/2"

PIN, Split (Cotter), 1/4" x 1-1/2"

2шт.

4

H344630

BOLT - NC HH (1 x 16)

2шт.

5

195-553

WASHER,1", SAE

- Flat (1)

4шт.

6

131-1184

LOCK NUT,1"-8, GA

NUT - HC Hex C/L (1)

2шт.

7

H350546

LINK

2шт.

8

H630004

BRACKET - Backfill Blade Mounting

1шт.

9

H56606

AXLE PIN,30.16mm OD x 142.08mm L

PIN - Clevis (1 x 5 1/4)

2шт.

10

132-349

COTTER PIN,1/4" x 1 1/2"

PIN, Split (Cotter), 1/4" x 1-1/2"

2шт.
