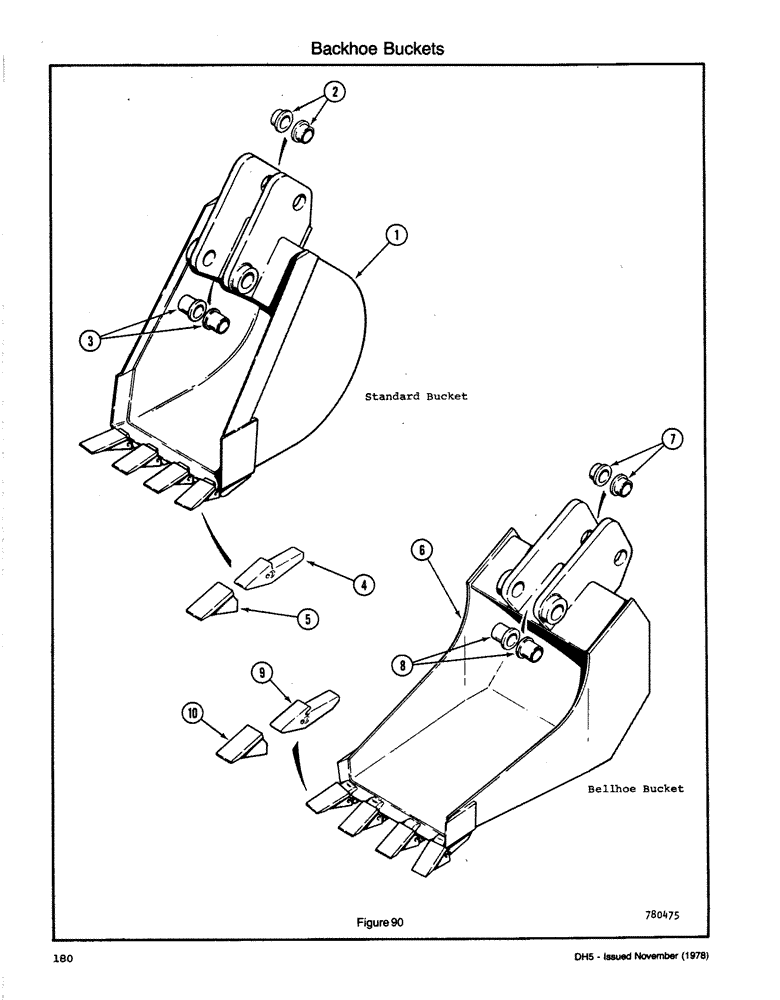

Запчасти Case DH5 (180) - BACKHOE BUCKETS (84) - BOOMS, DIPPERS & BUCKETS

1

BUCKET ASSEMBLY - 12", machinery item, see equipment price list

1шт.

2

H50823

BUSHING

- Cylinder Pin

2шт.

3

H56184

BUSHING,29.08mm ID x 44.5mm OD x 28.6mm L

- Bucket Hinge

2шт.

4

H36657

TOOTH

SHANK - Tooth

4шт.

5

T41166

TOOTH

POINT - Tooth

4шт.

1

BUCKET ASSEMBLY - 16", machinery item, see equipment price list

1шт.

2

H50823

BUSHING

- Cylinder Pin

2шт.

3

H56184

BUSHING,29.08mm ID x 44.5mm OD x 28.6mm L

- Bucket Hinge

2шт.

4

H36657

TOOTH

SHANK - Tooth

4шт.

5

T41166

TOOTH

POINT - Tooth

4шт.

1

BUCKET ASSEMBLY - 20", machinery item, see equipment price list

1шт.

2

H50823

BUSHING

- Cylinder Pin

2шт.

3

H56184

BUSHING,29.08mm ID x 44.5mm OD x 28.6mm L

- Bucket Hinge

2шт.

4

H36657

TOOTH

SHANK - Tooth

4шт.

5

T41166

TOOTH

POINT - Tooth

4шт.

1

BUCKET ASSEMBLY - 24", machinery item, see equipment price list

1шт.

2

H50823

BUSHING

- Cylinder Pin

2шт.

3

H56184

BUSHING,29.08mm ID x 44.5mm OD x 28.6mm L

- Bucket Hinge

2шт.

4

H36657

TOOTH

SHANK - Tooth

5шт.

5

T41166

TOOTH

POINT - Tooth

5шт.

1

BUCKET ASSEMBLY - 36", machinery item, see equipment price list

1шт.

2

H50823

BUSHING

- Cylinder Pin

2шт.

3

H56184

BUSHING,29.08mm ID x 44.5mm OD x 28.6mm L

- Bucket Hinge

2шт.

4

H36657

TOOTH

SHANK - Tooth

7шт.

5

T41166

TOOTH

POINT - Tooth

7шт.

6

BUCKET ASSEMBLY - 12", machinery item, see equipment price list

1шт.

7

H50823

BUSHING

- Cylinder Pin

2шт.

8

H56184

BUSHING,29.08mm ID x 44.5mm OD x 28.6mm L

- Cylinder Hinge

2шт.

9

H61283

TOOTH

SHANK - Tooth

4шт.

10

T41166

TOOTH

POINT - Tooth

4шт.

11

H61424

HALF BLADE

BLADE - Cutting

1шт.

6

BUCKET ASSEMBLY - 18", machinery item, see equipment price list

1шт.

7

H50823

BUSHING

- Cylinder Pin

2шт.

8

H56184

BUSHING,29.08mm ID x 44.5mm OD x 28.6mm L

- Cylinder Hinge

2шт.

9

H61283

TOOTH

SHANK - Tooth

4шт.

10

T41166

TOOTH

POINT - Tooth

4шт.

11

H61432

HALF BLADE

BLADE - Cutting

2шт.

6

BUCKET ASSEMBLY - 22", machinery item, see equipment price list

1шт.

7

H50823

BUSHING

- Cylinder Pin

2шт.

8

H56184

BUSHING,29.08mm ID x 44.5mm OD x 28.6mm L

- Cylinder Hinge

2шт.

9

H61283

TOOTH

SHANK - Tooth

5шт.

10

T41166

TOOTH

POINT - Tooth

5шт.

11

H61440

HALF BLADE

BLADE - Cutting

1шт.

6

BUCKET ASSEMBLY - 36", machinery item, see equipment price list

1шт.

7

H50823

BUSHING

- Cylinder Pin

2шт.

8

H56184

BUSHING,29.08mm ID x 44.5mm OD x 28.6mm L

- Cylinder Hinge

2шт.

9

H61283

TOOTH

SHANK - Tooth

7шт.

10

T41166

TOOTH

POINT - Tooth

7шт.

11

H61457

BLADE

- Cutting

1шт.
