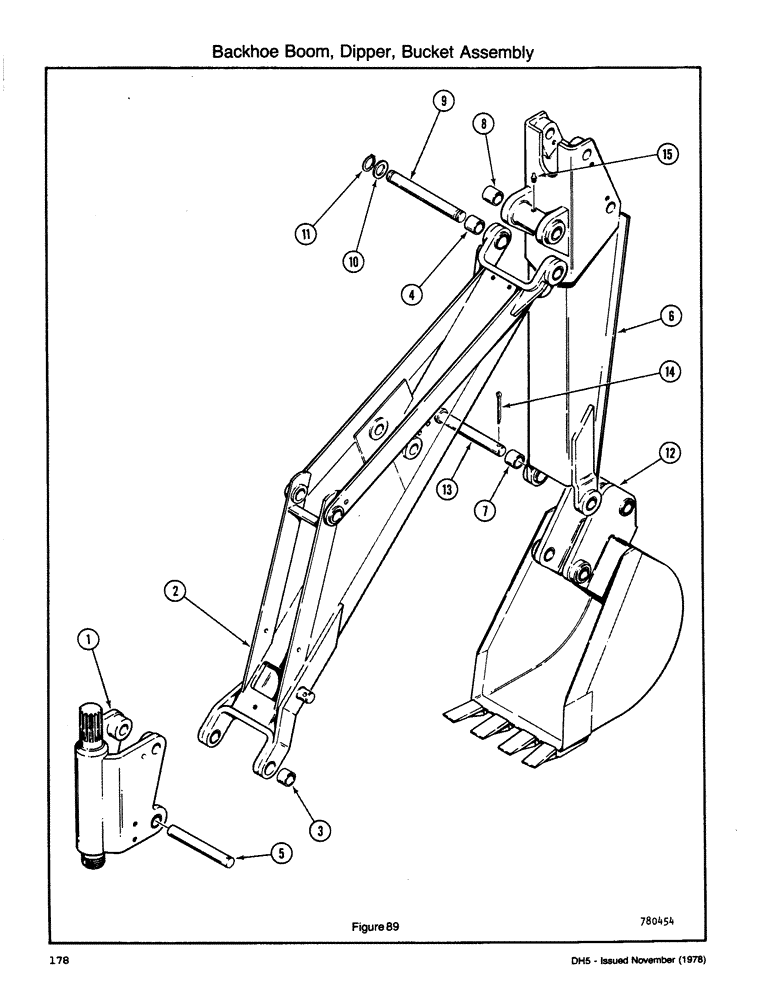

Запчасти Case DH5 (178) - BACKHOE BOOM, DIPPER, BUCKET ASSEMBLY (84) - BOOMS, DIPPERS & BUCKETS

1

KING POST (See Figure 86)

1шт.

2

H514620

BOOM

ASSEMBLY

1шт.

3

H50435

BUSHING,28.91mm ID x 36.63mm OD x 25.4mm L

2шт.

4

H56184

BUSHING,29.08mm ID x 44.5mm OD x 28.6mm L

2шт.

5

H50526

PIN

(1 1/4 x 8 3/16)

1шт.

6

H514687

BOOM

DIPPER STICK ASSEMBLY

1шт.

7

H56184

BUSHING,29.08mm ID x 44.5mm OD x 28.6mm L

2шт.

8

H56192

BUSHING,28.91mm ID x 36.63mm OD x 44.45mm L

2шт.

9

H50658

PIVOT

PIN (1 1/8 x 9 1/16)

1шт.

10

195-454

WASHER,1.140" x 1 7/8" x .032"

- Special (1 1/8)

1шт.

11

F62235

SNAP RING,#112, Ext

Ring, Snap, #112, Ext

2шт.

12

BUCKET (See Fig. 90)

1шт.

13

H50682

PIN

- Clevis (1 1/8 x 8 3/4)

1шт.

14

132-355

COTTER PIN,3/8" x 2"

Pin, Split (Cotter), 3/8" x 2"

1шт.

15

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.
