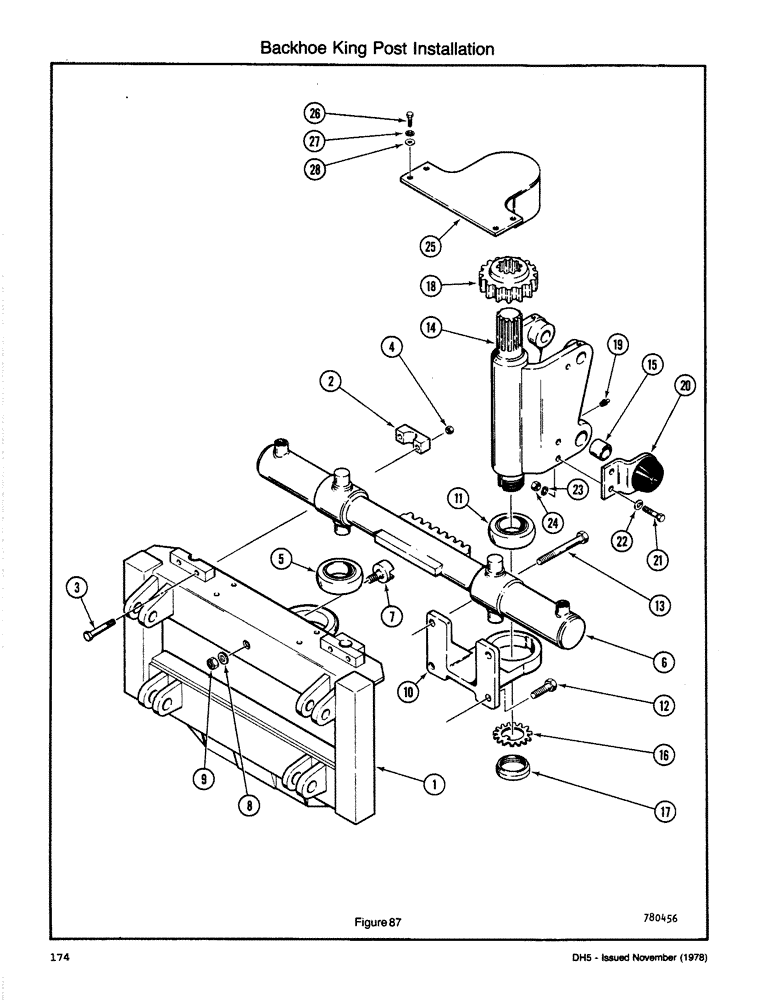

Запчасти Case DH5 (174) - BACKHOE KING POST INSTALLATION (84) - BOOMS, DIPPERS & BUCKETS

1

FRAME - Backhoe (See Figure 76 & 80)

1шт.

2

NSS

NOT SOLD SEPARAT

BLOCK - Swing Cylinder

4шт.

3

113-248

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

8шт.

4

230-4216

LOCK NUT,3/8"-16, GA

NUT - NC Hex C/L (3/8)

8шт.

5

H747170

BALL BEARING

BEARING - Kingpost

1шт.

6

CYLINDER - Backhoe Swing (See Figure 122)

1шт.

7

CASH50377

GUIDE

- Rack

1шт.

8

195-541

WASHER,5/8", SAE

- Flat (5/8)

1шт.

9

131-1171

LOCK NUT,5/8"-18, GB

NUT, LOCK, 5/8"-18, GB

1шт.

H571927

BEARING ASSY

BEARING ASSEMBLY

1шт.

10

H50724

HOLDER

CASTING

1шт.

11

H747170

BALL BEARING

BEARING

1шт.

12

113-604

BOLT,Hex, 5/8" - 11 x 2", Gr 5

2шт.

13

113-629

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

- NC HH (5/8 x 3 3/4)

2шт.

195-541

WASHER,5/8", SAE

- Flat (5/8)

4шт.

131-1130

LOCK NUT,5/8"-11, GA

NUT - NC Hex C/L (5/8)

4шт.

14

H514596

POST

KINGPOST

1шт.

15

H56192

BUSHING,28.91mm ID x 36.63mm OD x 44.45mm L

2шт.

16

192-311

BEARING WASHER,Bearing, W-11

WASHER - Bearing

1шт.

17

131-1037

BEARING LOCK NUT,Bearing, 2.1654" Bore

NUT - Bearing

1шт.

18

H50369

GEAR WHEEL

GEAR

1шт.

178-53

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - Set - NC Soc Hd (3/8 x 3/8 Cone Pt)

4шт.

19

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

20

H625756

BRACKET

BUMPER

2шт.

21

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

4шт.

22

195-533

WASHER,1/2", SAE

- Flat (1/2)

4шт.

23

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

24

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

25

H514380

COVER ASSY

COVER

1шт.

26

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

27

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

28

195-525

WASHER,3/8", SAE

4шт.
