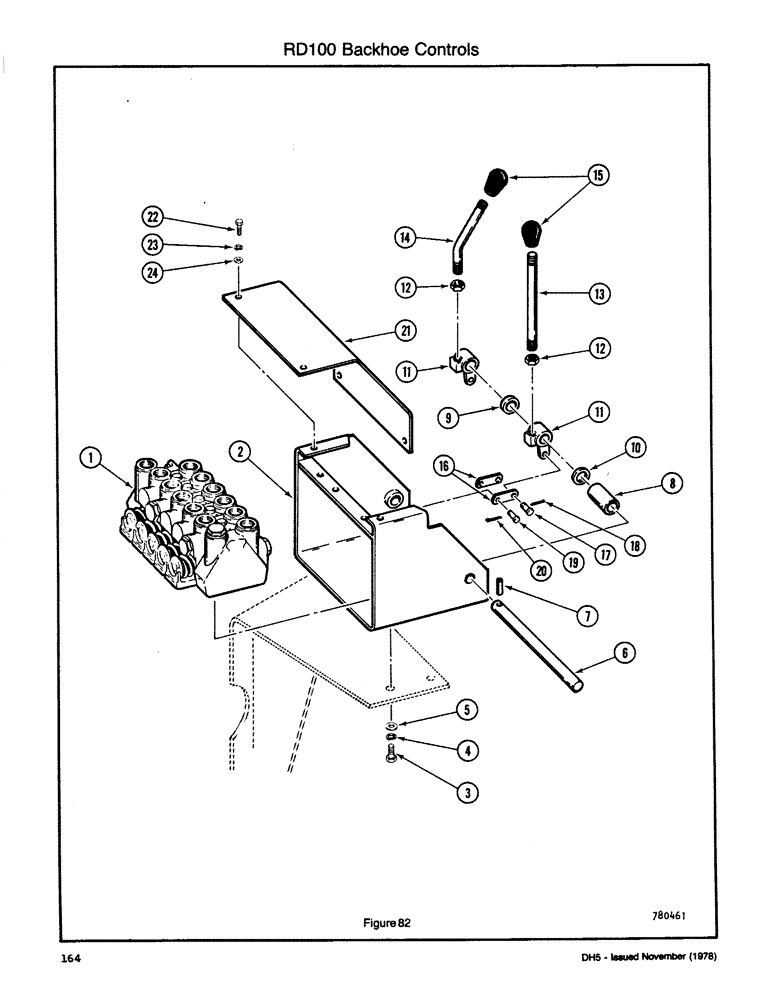

Запчасти Case DH5 (164) - RD100 BACKHOE CONTROLS (84) - BOOMS, DIPPERS & BUCKETS

1

VALVE - Backhoe Control (See Figure 118)

1шт.

2

H559856

CONSOLE

1шт.

3

113-312

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

3шт.

4

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

3шт.

5

195-529

WASHER,7/16", SAE

- Flat (7/16)

3шт.

6

H191866

SHAFT

1шт.

7

138-97

LOCK PIN,3/16" x 1 1/8", Slotted

PIN, 3/16" x 1 1/8", Slotted

2шт.

8

H195099

SPACER

- Long

2шт.

9

H191908

SPACER

- Short

4шт.

10

195-541

WASHER,5/8", SAE

- Flat 5/8", SAE

1шт.

11

H275263

LEVER

5шт.

12

87016560

JAM NUT,Jam, 3/8"-16, G5

5шт.

13

H191916

ROD

HANDLE

4шт.

14

H191924

LEVER

HANDLE

1шт.

15

A14051

GRIP

KNOB

5шт.

16

H185066

DRAG LINK

LINK

10шт.

17

D23693

AXLE PIN

PIN - Clevis (1/4 x 1)

5шт.

18

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

5шт.

19

H35279

AXLE PIN,4.72mm OD x 23.76mm L

PIN - Clevis (3/16 x 57/64)

5шт.

20

132-328

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

5шт.

21

H191890

PLATE

COVER

1шт.

22

187-1069

SELF-TAP SCREW,5/16" - 18 x 3/4"

BOLT - NC HH Self Tapping (5/16 x 3/4)

4шт.

23

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

24

195-521

WASHER,5/16", SAE

- Flat (5/16)

4шт.
