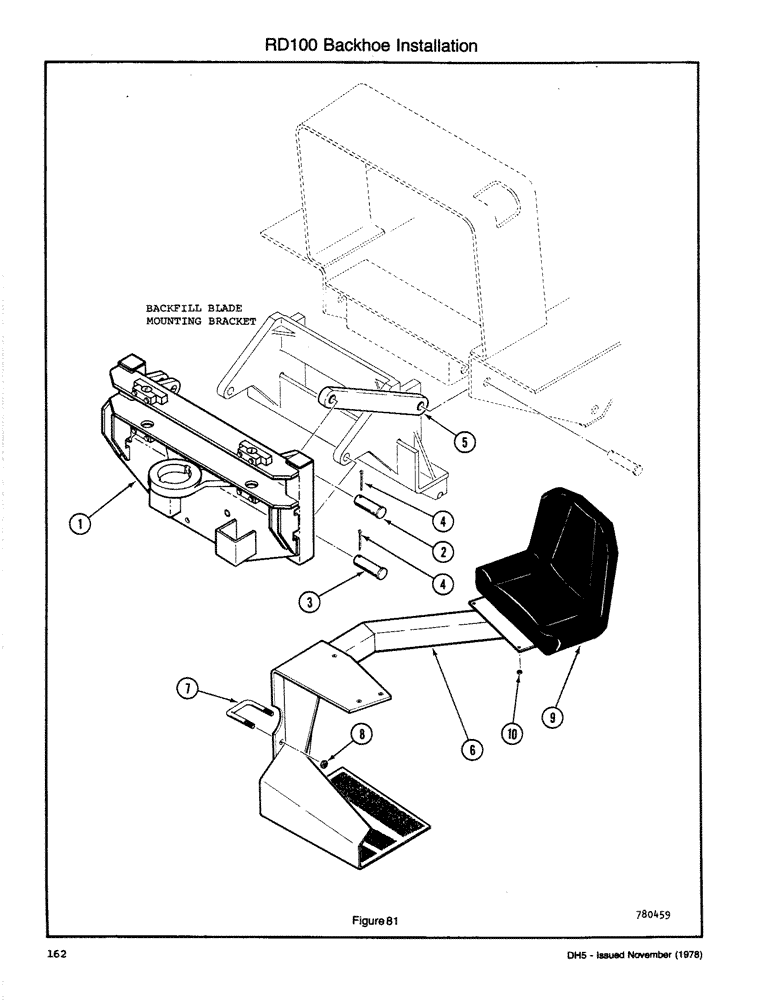

Запчасти Case DH5 (162) - RD100 BACKHOE INSTALLATION (84) - BOOMS, DIPPERS & BUCKETS

1

H555946

FRAME

- Backhoe

1шт.

2

H70623

AXLE PIN

PIN - Clevis (1 x 3 1/4)

2шт.

3

H146118

AXLE PIN

PIN - Clevis (1 1/8 x 3 1/4)

2шт.

4

132-307

COTTER PIN,1/4" x 1 3/4"

PIN, Split (Cotter), 1/4" x 1 3/4"

4шт.

5

H350546

LINK - Backhoe Mounting

2шт.

6

H580720

MOUNTING - Seat

1шт.

7

H243006

U-BOLT

2шт.

8

131-1182

LOCK NUT,1/2"-13, GA

NUT - NC Hex C/L (1/2)

4шт.

9

H594556

SEAT

1шт.

10

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - NC Hex C/L (5/16)

4шт.
