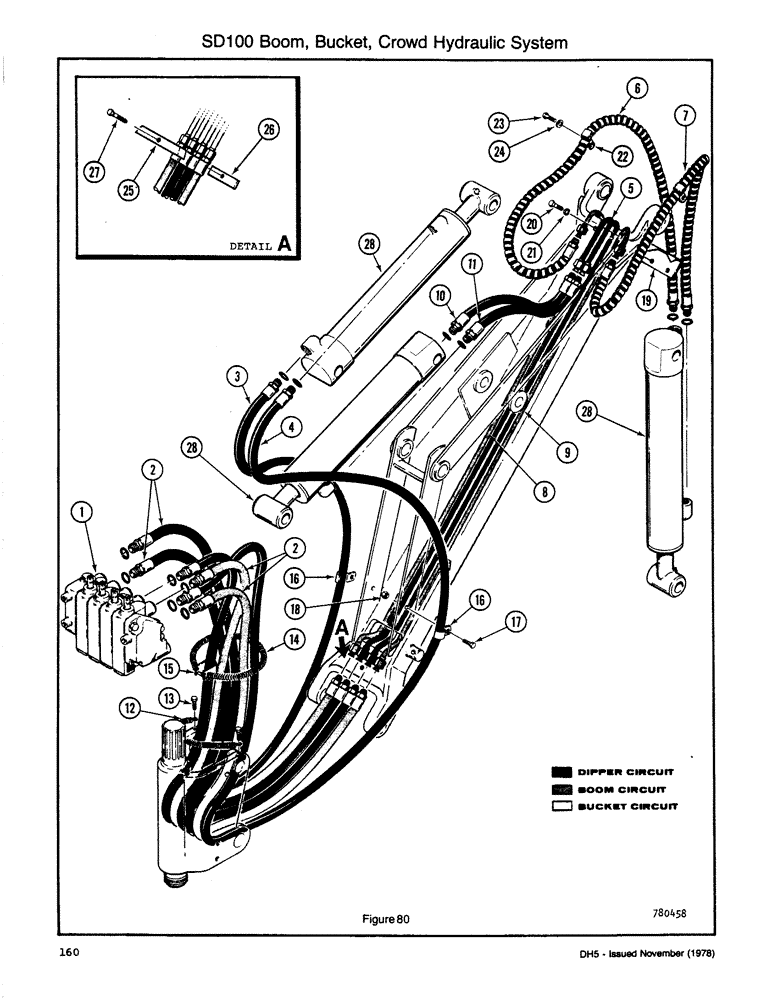

Запчасти Case DH5 (160) - SD100 BOOM, BUCKET, CROWD HYDRAULIC SYSTEM (84) - BOOMS, DIPPERS & BUCKETS
№
Артикул
Название
Примечание
Количество
1
VALVE - Backhoe Control (See Figure 118)
1шт.
2
H195826
HOSE,0.38" ID x 55.00", SAE 100R1
4шт.
Use H433078 hose and 218-5136 elbow.
1шт.
3
H378802
HOSE ASSY.
HOSE - 3/8 x 68 (3/4 JIC M x 3/4 ORB)
1шт.
4
H378794
HOSE ASSY.
HOSE - 3/8 x 87 (3/4 JIC M x 3/4 ORB) with Case cylinders
1шт.
4
H378984
HOSE ASSY.
HOSE - 3/8 x 68 (3/4 JIC M x 3/4 ORB) with Lantex cylinders
1шт.
5
H593392
TUBE,0.5" OD
ASSEMBLY - Boom Cylinder
2шт.
6
H268565
HYDRAULIC HOSE,9.52 mm ID x 1066.80 mm, SAE 100R1
(3/4 JIC M x 3/4 ORB) 9.52 mm ID x 1066.80 mm, SAE 100R1
1шт.
7
H357863
HOSE,9.65mm ID x 1549.4mm L, SAE 100R1
with Case Cylinders 0.38" ID x 61.00", SAE 100R1
1шт.
7
H268565
HYDRAULIC HOSE,9.52 mm ID x 1066.80 mm, SAE 100R1
(3/4 JIC M x 3/4 ORB) with Lantex cylinders 9.52 mm ID x 1066.80 mm, SAE 100R1
1шт.
8
H593376
TUBE,0.5" OD
ASSEMBLY - Bucket Cylinder (L/H)
1шт.
9
H593384
TUBE,12.7 mm OD
ASSEMBLY - Bucket Cylinder (R/H)
1шт.
10
H244921
HYDRAULIC HOSE,9.52 mm ID x 381.00 mm, SAE 100R1
9.52 mm ID x 381.00 mm, SAE 100R1
1шт.
11
H268540
HYDRAULIC HOSE,9.52 mm ID x 889.00 mm, SAE 100R1
(3/4 JIC M x 3/4 ORB) with Case cylinders 9.52 mm ID x 889.00 mm, SAE 100R1
1шт.
11
H244921
HYDRAULIC HOSE,9.52 mm ID x 381.00 mm, SAE 100R1
With Lantex Cylinders 9.52 mm ID x 381.00 mm, SAE 100R1
1шт.
12
H52548
SPRING
1шт.
13
113-3
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5
2шт.
14
H52548
SPRING
1шт.
15
H52571
CLAMP
- Hose
1шт.
16
H51763
CLAMP
- Hose
2шт.
17
113-4
BOLT,Hex, 1/4" - 20 x 1", Gr 5
2шт.
18
131-1180
LOCK NUT,1/4"-20, GA
NUT, LOCK, 1/4"-20, GA
2шт.
19
H51755
CLAMP
- Tube
1шт.
H61069
FLAP
CUSHION - Anti-Wear
1шт.
20
113-121
BOLT,Hex, 5/16" - 18 x 2", Gr 5
2шт.
21
192-20
LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND
WASHER, LOCK, 5/16"
2шт.
22
H276758
CLAMP
- Hose
2шт.
23
113-4
BOLT,Hex, 1/4" - 20 x 1", Gr 5
2шт.
24
80682
LOCK WASHER,1/4"
Washer, Lock, 1/4"
2шт.
25
H52589
CLAMP
- Tube
1шт.
26
H51748
CLAMP
BASE - Clamp
1шт.
27
113-121
BOLT,Hex, 5/16" - 18 x 2", Gr 5
1шт.
28
CYLINDER (See Figure 122 & 124)
3шт.
218-5006
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
(3/4)
1шт.
218-5006
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
(3/4)
1шт.
218-5006
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
(3/4)
1шт.
218-5006
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
(3/4)
1шт.
218-5006
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
(3/4)
1шт.
218-5006
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
(3/4)
1шт.
218-5006
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
(3/4)
1шт.
218-5006
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
1шт.
218-5006
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
1шт.
218-5006
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
1шт.
Выбрано товаров: 43
