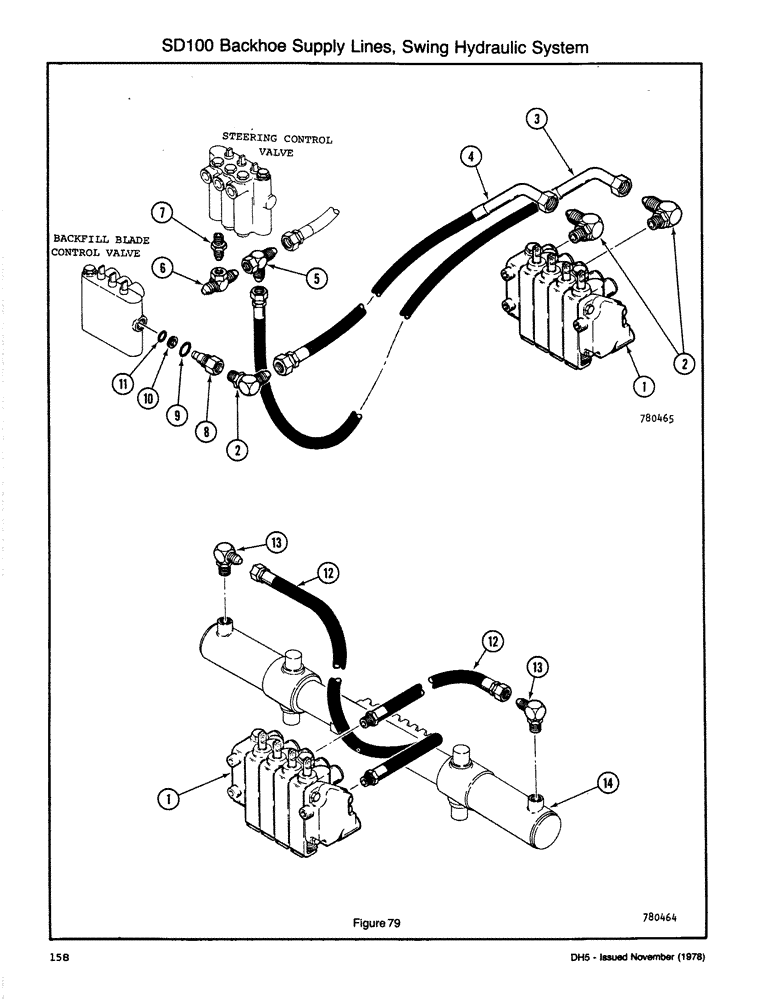

Запчасти Case DH5 (158) - SD100 BACKHOE SUPPLY LINES, SWING HYDRAULIC SYSTEM (84) - BOOMS, DIPPERS & BUCKETS

1

VALVE - Backhoe Control (See Figure 118)

1шт.

2

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

3шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

(7/8)

1шт.

3

H248641

HOSE

- 1/2 x 41 (7/8 JIC Fm Swv x 90 degree Bent Tube)

1шт.

4

H247189

HOSE - 1/2 x 57 (7/8 JIC Fm Swv x 90 degree Bent Tube)

1шт.

5

218-5220

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

1шт.

6

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

TEE

1шт.

7

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., 7/8"-14, 37º x 3/4"-16, O-Ring

1шт.

D61608

SLEEVE

ADAPTER - Pressure Beyond

1шт.

8

NSS

NOT SOLD SEPARAT

BODY - Adapter

1шт.

9

A18414

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

1шт.

10

D37070

SEAL,13.16mm ID x 15.85mm OD x 1.25mm Thk

WASHER - Backup

1шт.

11

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

1шт.

12

H200188

HOSE

- 3/8 x 26 (3/4 JIC M x 3/4 ORB)

2шт.

13

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

2шт.

14

SEEFIG.122

CYLINDER - Swing

1шт.

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

(3/4)

1шт.

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.
