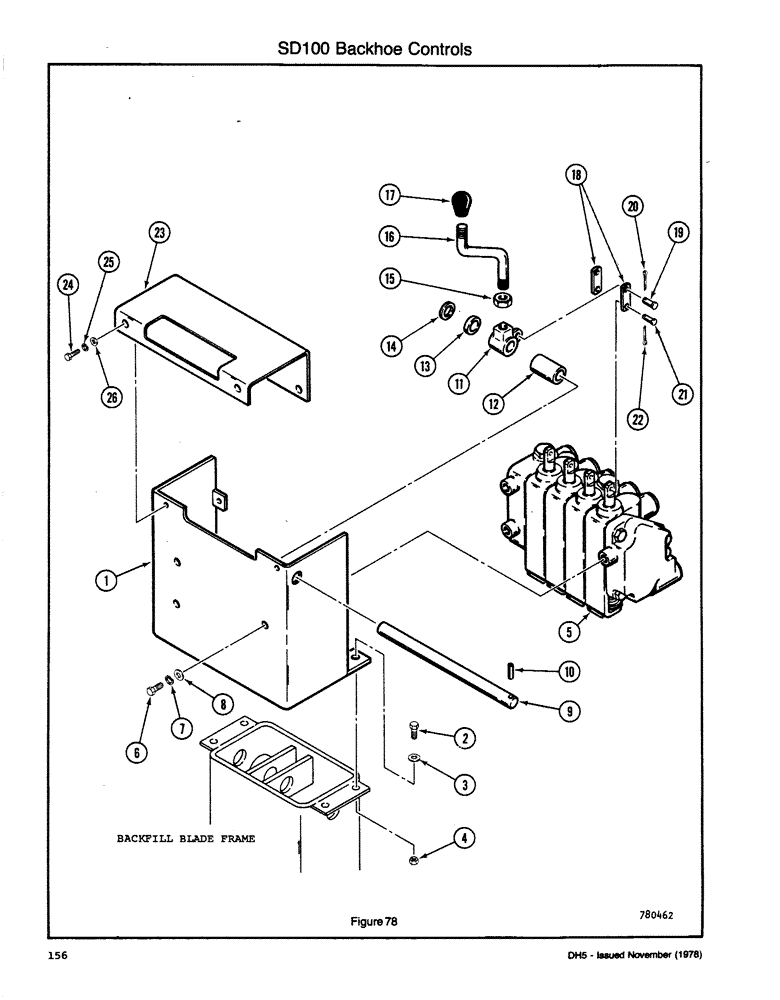

Запчасти Case DH5 (156) - SD100 BACKHOE CONTROLS (84) - BOOMS, DIPPERS & BUCKETS

1

H588137

MOUNTING PARTS

CONSOLE

1шт.

2

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

3

195-525

WASHER,3/8", SAE

4шт.

4

230-4216

LOCK NUT,3/8"-16, GA

NUT - NC Hex C/L (3/8)

4шт.

5

VALVE - Backhoe Control (See Figure 118)

1шт.

6

113-310

BOLT,Hex, 7/16" - 14 x 1", Gr 5

3шт.

7

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

3шт.

8

195-529

WASHER,7/16", SAE

- Flat (7/16)

3шт.

9

H256263

SHAFT

1шт.

10

138-97

LOCK PIN,3/16" x 1 1/8", Slotted

PIN, 3/16" x 1 1/8", Slotted

1шт.

11

H275255

CRANK LEVER

LEVER

4шт.

12

H191247

SPACER

- Long

2шт.

13

H191908

SPACER

- Short

3шт.

14

195-541

WASHER,5/8", SAE

- Flat (5/8)

1шт.

15

87016560

JAM NUT,Jam, 3/8"-16, G5

4шт.

16

H259796

LEVER

HANDLE

4шт.

17

A14051

GRIP

KNOB

4шт.

18

H185066

DRAG LINK

LINK

8шт.

19

D23693

AXLE PIN

PIN - Clevis (1/4 x 1)

4шт.

20

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

4шт.

21

H35279

AXLE PIN,4.72mm OD x 23.76mm L

PIN - Clevis (3/16 x 57/64)

4шт.

22

132-328

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

4шт.

23

H256271

COVER

1шт.

24

187-1069

SELF-TAP SCREW,5/16" - 18 x 3/4"

BOLT - NC HH Self Tapping (5/16 x 3/4)

4шт.

25

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

26

195-521

WASHER,5/16", SAE

- Flat (5/16)

4шт.
