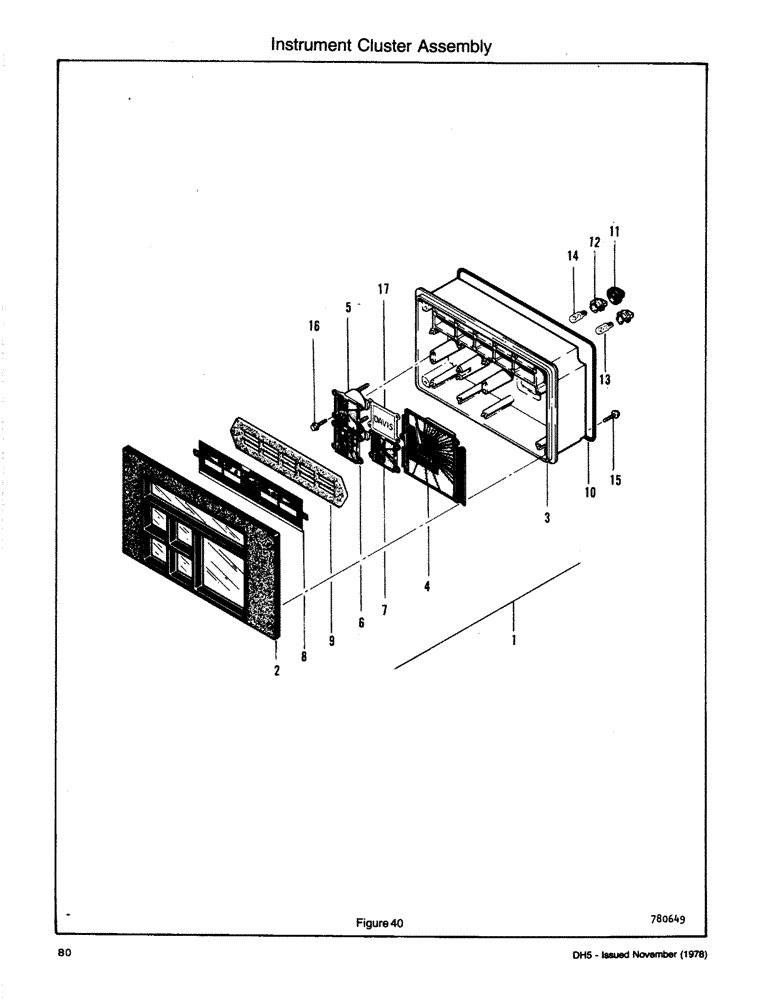

Запчасти Case DH5 (080) - INSTRUMENT CLUSTER ASSEMBLY (55) - ELECTRICAL SYSTEMS

1

H628610

CLUSTER

- instrument

1шт.

2

D71334

LENS

- identification

1шт.

3

D71335

CASE ASSY.

Case Assembly - cluster

1шт.

Ref #4A - A1377572 Tach Drive Assy. 06/21/96

1шт.

4

71336

STRAP

Tachometer - engine, R.P.M.

1шт.

Ref #4A - A1377572 Tach Drive Assy. 06/21/96

1шт.

5

D71337

ELECTRICAL GAUGE

Gauge - water temperature

1шт.

6

D71338

ELECTRICAL GAUGE

Gauge - fuel level

1шт.

7

D71339

VOLTMETER

Gauge - voltmeter

1шт.

8

H348565

TAG

Strip - identification

1шт.

9

D71342

GASKET,3.05mm Thk

- lens

1шт.

10

D71343

GASKET,4.45mm Thk x 249.68mm ID

- cluster

2шт.

11

D71344

COVER

Boot - socket

3шт.

12

L35949

SOCKET/RECEPTACLE

Socket - lamp, green

9шт.

13

D71346

TAIL LAMP,12V

Lamp-cluster (#194)

6шт.

14

W10478

LAMP

-cluster (#168)

3шт.

15

164-15

HEX SOC SCREW,Flat Hd, #6 - 32 x 3/4"

Screw - #6 x 3/4"

4шт.

16

164-13

Screw - #6 x 1/2"

8шт.

17

H348573

Placard-"Davis" Name

1шт.
