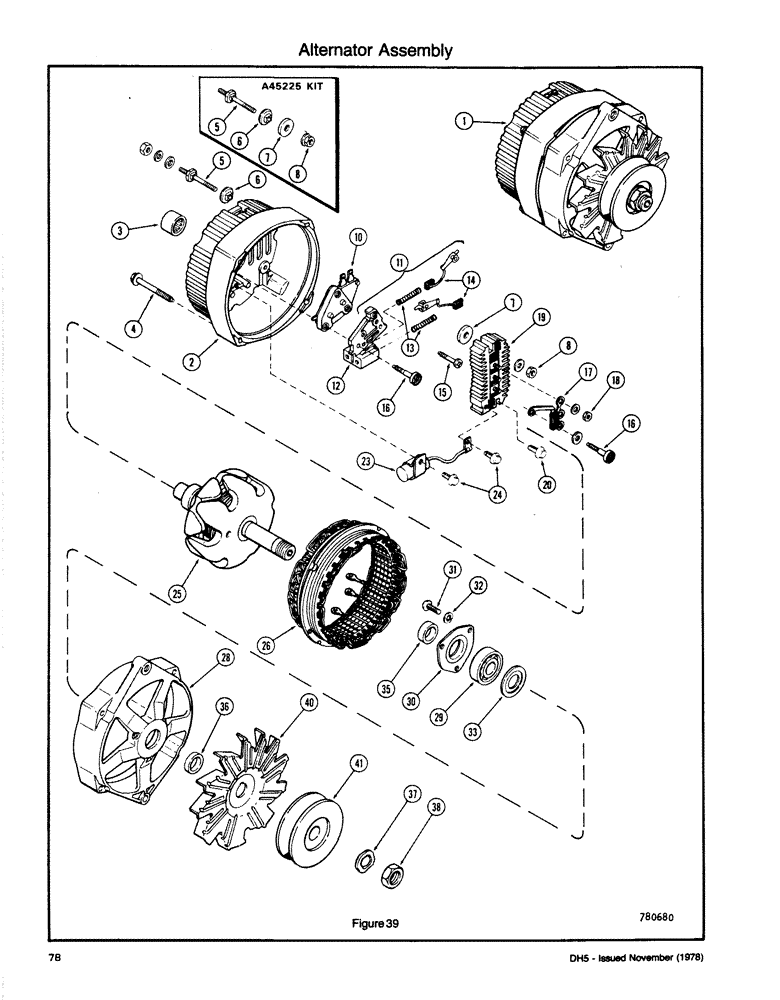

Запчасти Case DH5 (078) - ALTERNATOR ASSEMBLY (55) - ELECTRICAL SYSTEMS

1

A139389

ALTERNATOR

Alternator Assy - 37 amp. (Delco #1102898) (Order A45201 alternator, A43384 fan & A51561 pulley) (Production only)

1шт.

A45201

ALTERNATOR

Alternator Assy - 42 amp. (Delco #1100583) (Less pulley & fan) (Repairs Only)

1шт.

87297244

REMAN-ALTERNATOR

Reman for New PN A45201

1шт.

87297245

CORE-ALTERNATOR

Return Number

1шт.

103798A1GV

ALTERNATOR

Value, 12V, 63A

1шт.

103798A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 63 ampere

1шт.

103798A1C

CORE-ALTERNATOR

Return Number

1шт.

103799A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT, 63 AMP Alternator

1шт.

103799A1C

CORE-ALTERNATOR

Return Number, 12 VOLT, 63 AMP Alternator

1шт.

103804A1GV

ALTERNATOR

Value, 12V, 72A

1шт.

103804A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 72 ampere

1шт.

103804A1C

CORE-ALTERNATOR

Return Number

1шт.

ZAP804A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT, 100 AMP Alternator (Higher Amp version of 72 amp 103804A1R)

1шт.

103804A1C

CORE-ALTERNATOR

Return Number

1шт.

2

A45217

FRAME

Frame Assy - slip ring end

1шт.

3

A45218

BEARING ASSY

Bearing - roller

1шт.

4

163-6

SCREW,Hex, #10 - 24 x 1 3/4"

Bolt - thru, #10-24 x 1 3/4" hex. washer hd.

4шт.

A45225

MULTIPOLE CONNECTOR

Kit - terminal, battery

1шт.

5

NSS

NOT SOLD SEPARAT

Stud - terminal

1шт.

6

NSS

NOT SOLD SEPARAT

Insulation - stud

1шт.

7

NSS

NOT SOLD SEPARAT

Washer - insulating

1шт.

8

NSS

NOT SOLD SEPARAT

Nut - terminal

2шт.

10

A45213

REGULATOR

Regulator - voltage

1шт.

11

A45222

BRUSH, COMMUTATOR

BRUSH Brush Holder Assy - (includes brushes)

1шт.

12

NSS

NOT SOLD SEPARAT

Holder - brush

1шт.

13

A43678

SPRING

Spring - brush

2шт.

14

NSS

NOT SOLD SEPARAT

Brush - commutator

2шт.

15

A45224

SCREW,0.164" - 32 x 1 7/64"

Screw - brush holder, grounded

1шт.

16

A45223

SCREW,Spcl, #8 - 32 x 1 1/8"

Screw - brush holder, insulated

2шт.

17

A45219

DIODE ELEMENT

Diode - trio

1шт.

18

129-16

NUT,#8-32

NUT, #8-32

3шт.

19

A45220

PEDAL

Rectifier - bridge

1шт.

20

A45221

SCREW,Hex Wshr Hd, #8 - 32 x 0.99"

Screw - #8-32 x 1"

1шт.

23

A45226

CAPACITOR

Capacitor Assy - (includes bracket)

1шт.

24

A45228

SELF-TAP SCREW,Hex Wash Hd, #8-32 x .59", Spc

Screw - #8-32 x 3/8"

2шт.

25

A45214

ROTOR

Rotor Assy - (includes slip ring)

1шт.

26

A45233

STATOR

Stator Assy - field

1шт.

28

A45229

FRAME

Frame - drive end

1шт.

29

A45230

BEARING ASSY

Bearing - ball, drive end

1шт.

30

A44433

PLATE

Plate - bearing retainer

1шт.

31

173-210

SCREW,Sl Rnd Hd, #10 - 24 x 3/8"

Screw - #10-24 x 3/8" rd. hd.

3шт.

32

195-512

WASHER,#10

Washer - 7/32 x 7/16 x 1/16"

3шт.

33

A45232

WASHER

Washer - bearing, grease slinger

1шт.

35

A44522

COLLAR

Collar - rotor shaft inner, 43/64 x 29/32 x 23/64"

1шт.

36

A72047

COLLAR

Collar - rotor shaft outer, 43/64 x 7/8 x 13/64"

1шт.

37

R16171

SPRING WASHER

Washer - lock

1шт.

38

A25546

NUT

Nut - pulley & fan mounting

1шт.

40

A43384

FAN

Fan - alternator ventilating

1шт.

41

A51561

PULLEY

Pulley - drive

1шт.
