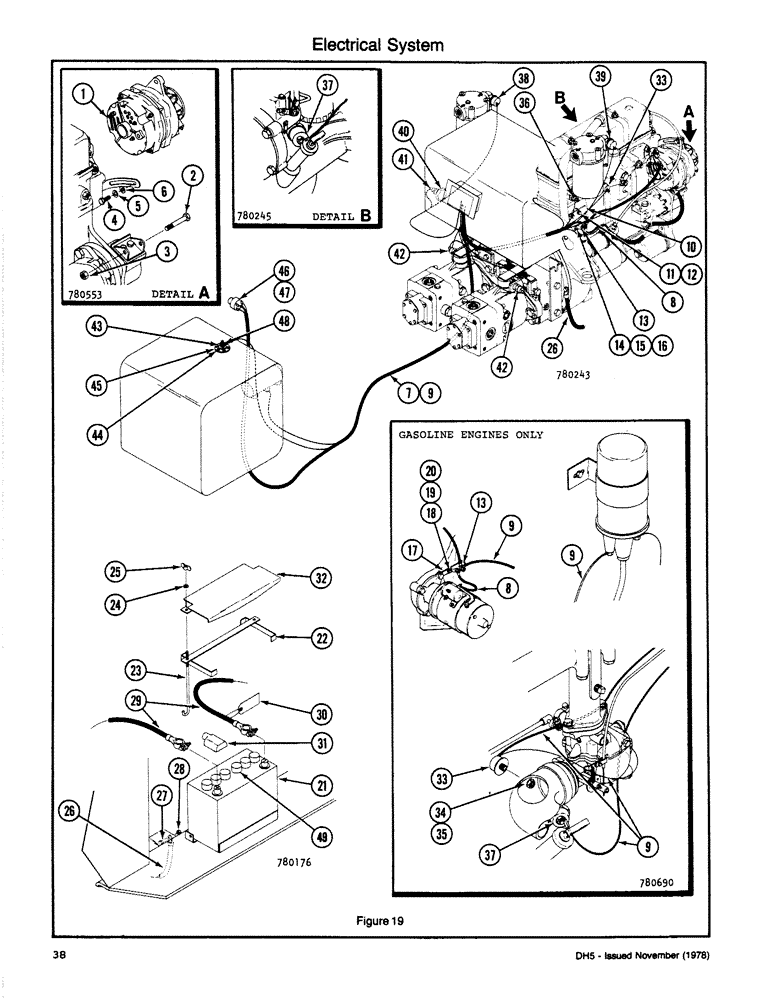

Запчасти Case DH5 (038) - ELECTRICAL SYSTEM (55) - ELECTRICAL SYSTEMS

1

ALTERNATOR ASSY (See Fig.)

1шт.

2

113-241

BOLT,Hex, 3/8" - 16 x 3", Gr 5

1шт.

3

230-4216

LOCK NUT,3/8"-16, GA

NUT NC HH C/L (3/8)

1шт.

4

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

5

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

6

195-521

WASHER,5/16", SAE

- Flat (5/16)

1шт.

7

H627596

HARNESS

- Engine Wiring & Diagram (Diesel)

1шт.

Both items must be ordered to get complete wire harness and diagram for gas engine.

1шт.

8

CABLE - Circuit, Serial Range: Breaker-Solenoid

1шт.

9

H640326

HARNESS - Engine Wiring & Diagram (Gas)

1шт.

Both items must be ordered to get complete wire harness and diagram for gas engine.

1шт.

10

D67957

PLATE

- Circuit Breaker Mounting (Diesel)

1шт.

11

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

(Diesel) Hex, 1/4"-20 x 3/4", G5, Full Thd

2шт.

12

92-4

LOCK WASHER,1/4"

WASHER, LOCK, (Diesel) 1/4"

2шт.

13

A22877

BREAKER,40A

- Circuit (40 AMP)

1шт.

14

173-212

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

RD HD (#10-24 x 1/2) (Diesel)

2шт.

15

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, (Diesel) #10

2шт.

16

131-1142

LOCK NUT,Hex, #10 - 24, Gr A

NUT, LOCK, (Diesel) #10-24, GA

2шт.

17

H102731

RETAINER

MOUNTING - Circuit Breaker (Gas)

1шт.

18

173-212

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

RD HD (#10-24 x 1/2) (Gas)

1шт.

19

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, (Gas) #10

1шт.

20

131-1142

LOCK NUT,Hex, #10 - 24, Gr A

NUT, LOCK, (Gas) #10-24, GA

1шт.

21

L49990

X

BATTERY (includes caps)

1шт.

22

H409821

COVER

HOLD DOWN ASSY - Battery, Replaces H578302

1шт.

23

H43208

BOLT

BOLT - Battery Hold Down

2шт.

24

195-521

WASHER,5/16", SAE

- Flat (5/16)

2шт.

25

129-419

WING NUT,5/16"-18

NUT - Wing (5/16)

2шт.

26

H139568

CABLE

-, Serial Range: Solenoid-Ground

1шт.

27

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

28

230-4216

LOCK NUT,3/8"-16, GA

NUT NC HH C/L (3/8)

1шт.

29

H173781

CABLE

S - Battery (positive & negative)

2шт.

30

H198457

TAG

- Ground Cable (negative)

1шт.

31

H102681

COVER ASSY

COVER - Battery Terminal (positive)

1шт.

32

H409821

COVER

ASSY - Battery, Replaces H614750

1шт.

33

D67721

SWITCH

- Air Filter Restriction

1шт.

34

221-84

REDUCER,Hex, 1/4" x 1/8" NPT

BUSHING - Pipe (1/4 x 1/8) (Gas)

1шт.

35

195-525

WASHER,3/8", SAE

(Gas) 3/8", SAE

1шт.

36

D65446

SENDER UNIT

SENDER - Engine Water Temperature

1шт.

37

D63294

PRESSURE SWITCH

SWITCH - Engine Oil Pressure

1шт.

38

H342766

SWITCH

- Hydraulic Oil Filter (suction)

1шт.

39

H342774

SWITCH

- Hydraulic Oil Filter (return)

1шт.

40

221-607

REDUCER,Hex, 1 1/4" x 1/2" NPT

BUSHING - Pipe (1 1/4 x 1/2)

1шт.

41

H81935

SENDER UNIT

SENDER - Hydraulic Oil Temperature

1шт.

42

A55882

SOLENOID SWITCH

SWITCH - Neutral Start

2шт.

Requires 131-404 nut and 193-61 washer.

1шт.

43

H634907

SENDER UNIT

SENDER - Fuel

1шт.

44

H378547

GASKET

- Fuel Sender

1шт.

45

182-550

SCREW,Cross Pan Hd, #10-24 x 1/2"

PH/HD PN (#10-24 x 1/2)

5шт.

46

H71498

SWITCH

- Ignition (with Keys)

1шт.

47

A24509

KEY

IGNITION KEYS (set of two)

1шт.

48

131-404

LOCK NUT,PAL, 3/4"-16

NUT - Lock

2шт.

49

A60553

CAP

S - Battery

6шт.
