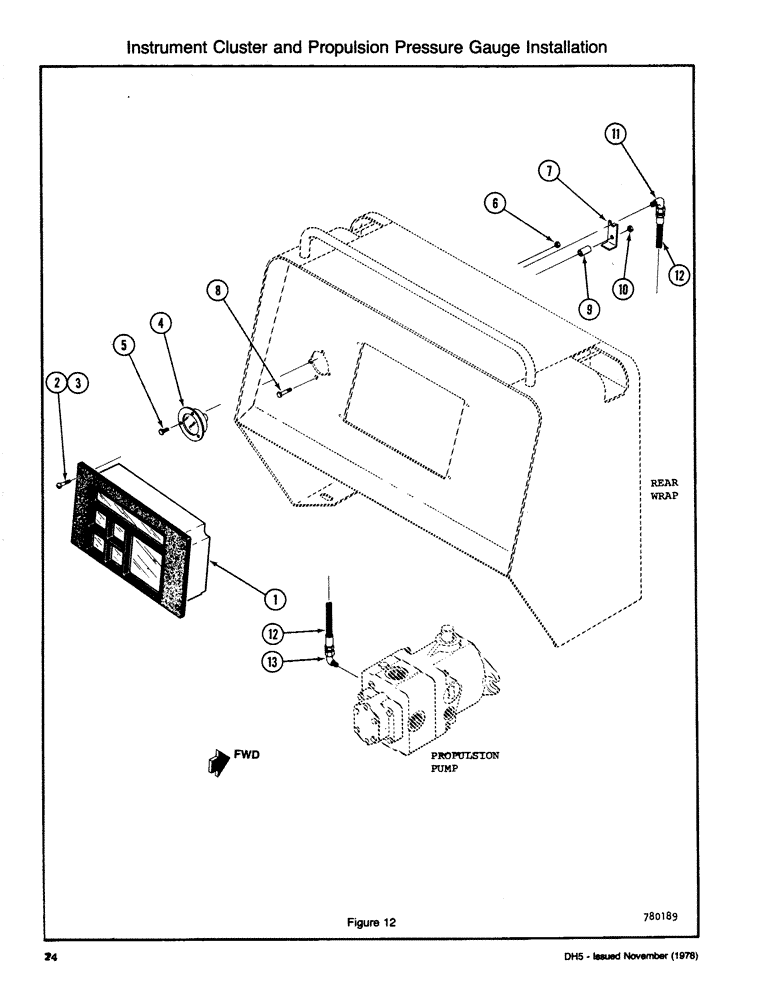

Запчасти Case DH5 (024) - INSTRUMENT CLUSTER AND PROPULSION PRESSURE GAUGE INSTALLATION (55) - ELECTRICAL SYSTEMS

1

CLUSTER - Dash (See Figure 40)

1шт.

2

173-212

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

RD HD (10-24 x 1/2)

4шт.

3

131-1142

LOCK NUT,Hex, #10 - 24, Gr A

NUT, LOCK, #10-24, GA

4шт.

4

H371955

PACKAGE

GAUGE - Pressure

1шт.

5

173-203

SCREW,Sl Rnd Hd, #6 - 32 x 1/2"

- Machine NC (6-32 x 1/2)

3шт.

6

129-15

NUT,#6-32

3шт.

7

H367169

ANGLE

- Gauge Support

1шт.

8

113-5

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

Hex, 1/4"- 20 x 1 1/2", G5

1шт.

9

H367177

SPACER

1шт.

10

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

1шт.

11

218-513

ELBOW,90 Degree, 9/16"-18, 37 Degree x 1/4"-18, Fem NPTF

90 degree (1/4 FNPT & 9/16 JIC M)

1шт.

12

H367185

HOSE

(1/4 x 30) (9/16 JIC Fm Swv)

1шт.

13

218-492

90 ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/8" - 27 Male NPTF

90 degree (1/8 MNPT & 9/16 JIC M)

1шт.
