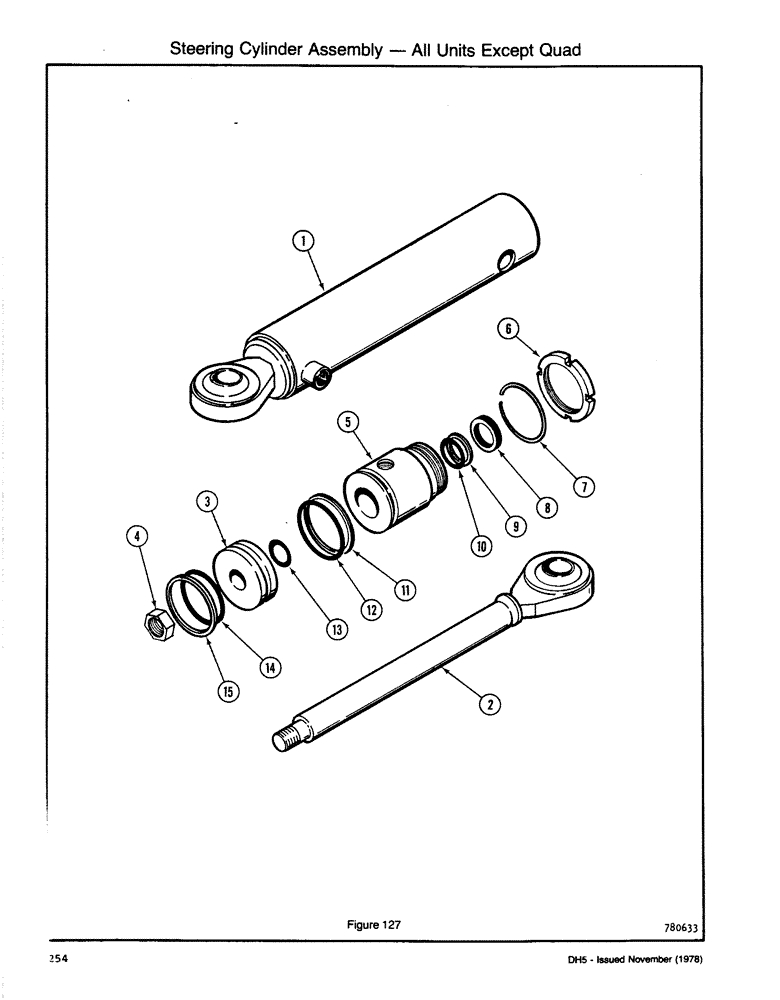

Запчасти Case DH5 (254) - STEERING CYLINDER ASSEMBLY - ALL UNITS EXCEPT QUAD (41) - STEERING

H547331

CYLINDER

ASSEMBLY - Steering

1шт.

1

H171942

STEERING CYLINDER

BARREL

1шт.

2

H171959

PITMAN

ROD - Piston

1шт.

3

H171926

PISTON

1шт.

4

131-172

LOCK NUT,3/4"-16, GA

NUT - Lock

1шт.

5

H70078

BEARING

1шт.

6

H745786

BEARING LOCK NUT

- Bearing

1шт.

H171983

GASKET KIT

KIT - Seal Repair

1шт.

7

H166314

RING

- Lock

1шт.

8

H220475

WIPER SEAL

SEAL - Wiper

1шт.

9

H751149

RING - Backup

1шт.

10

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

1шт.

11

H754994

RUBBER

RING - Backup

1шт.

12

A14506

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

1шт.

13

A13184

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

1шт.

14

A23904

O-RING,0.103" Thk x 2.175" ID, -139, Cl 5, 75 Duro

-139, 90 Duro, 2.175" ID x .103" Thk

1шт.

15

T31057

SEAL ASSY.

RING - Piston

1шт.
