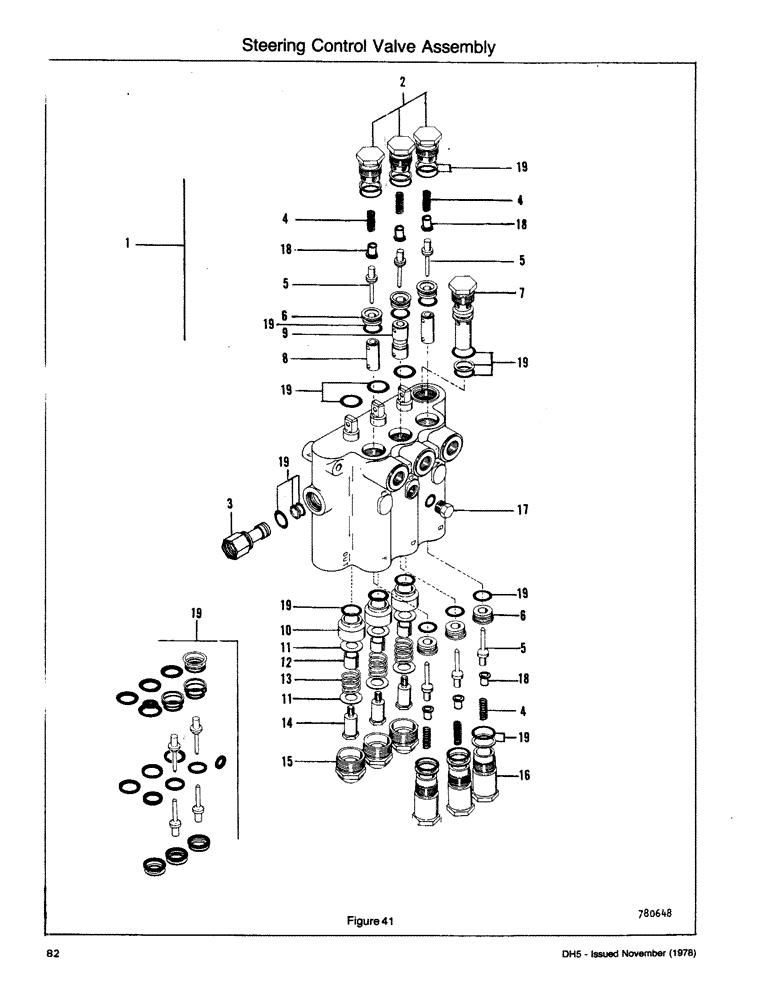

Запчасти Case DH5 (082) - STEERING CONTROL VALVE ASSEMBLY (41) - STEERING

1

H624767

DISTRIBUTOR

Control Valve Assembly

1шт.

2

F35197

PLUG

Assy (includes o ring and washer)

3шт.

3

H570374

PLUG

Assy (includes o rings and washer)

1шт.

4

F35198

VALVE SPRING

Spring

6шт.

5

H59808

VALVE POPPET

Poppet Assy (included in seal repair kit)

6шт.

6

F37884

SEAT

Assy (includes o ring)

6шт.

7

H102053

VALVE

Assy-Relief (includes o rings and washer)

1шт.

8

F8229

PLUNGER

2шт.

9

H271718

Plunger

1шт.

10

T39069

BUSHING

3шт.

11

F8235

WASHER

6шт.

12

F37885

SPACER

3шт.

13

F14091

VALVE SPRING

Spring

3шт.

14

F37886

SCREW

-Spool

3шт.

15

F35196

CAP

Assy

3шт.

16

H172601

PLUG

Assy (includes o ring and washer)

3шт.

17

H580621

Plug Assy (includes o ring)

1шт.

18

H266684

AXLE PIN

Eyelet

6шт.

19

H628453

KIT

Repair Kit-Seal

1шт.
