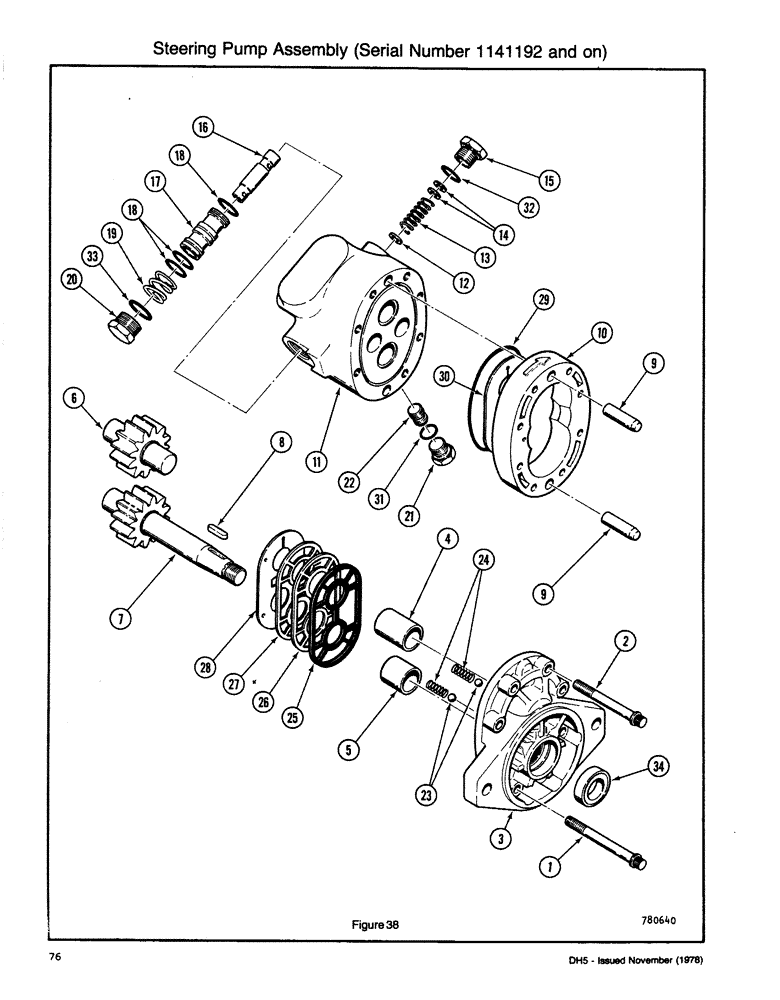

Запчасти Case DH5 (076) - STEERING PUMP ASSEMBLY (SERIAL NUMBER 1141192 AND ON) (41) - STEERING

H630087

PUMP

ASSEMBLY - Steering (Serial Number 1141192 and Up)

1шт.

1

166-32

12 PT SCREW,Flg, 5/16" - 18 x 2 1/2", Gr 8

SCREW (5/16 - 18 x 2 1/2)

4шт.

2

166-31

12 PT SCREW,Flg, 5/16" - 18 x 2 1/4", Gr 8

SCREW (5/16 - 18 x 2 1/4)

4шт.

H233528

PLATE

FRONT PLATE ASSEMBLY

1шт.

3

NSS

NOT SOLD SEPARAT

PLATE - Front

1шт.

4

NSS

NOT SOLD SEPARAT

BUSHING - Long

1шт.

5

NSS

NOT SOLD SEPARAT

BUSHING - Short

1шт.

6

H563007

GEAR

- Idler

1шт.

7

H642942

GEAR

- Drive

1шт.

8

H379156

KEY

1шт.

9

H753855

GUIDE

PIN - Dowel (5/16 x 1 1/4)

2шт.

10

H378950

BODY

1шт.

H642959

PLATE

KIT - Back Plate Repair

1шт.

Ref #10 - Replaced by H202804 06/21/96

1шт.

11

NSS

NOT SOLD SEPARAT

BACK PLATE

1шт.

12

L33506

DISC

1шт.

13

L33610

SPRING

1шт.

14

F33506

DISC

1шт.

15

L33501

PLUG

ASSEMBLY

1шт.

H757492

SEAL

O-RING

1шт.

16

NSS

NOT SOLD SEPARAT

SPOOL

1шт.

17

NSS

NOT SOLD SEPARAT

SLEEVE

1шт.

18

NSS

NOT SOLD SEPARAT

O-RING

3шт.

19

F21353

SPRING

1шт.

20

L33509

PLUG

ASSEMBLY

1шт.

A41316

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

1шт.

21

H643072

PLUG

ASSEMBLY

1шт.

H757583

O-RING,0.103" Thk x 0.424" ID, -11, Cl 6, 90 Duro

1шт.

22

NSS

NOT SOLD SEPARAT

PLUG

1шт.

H642967

PACKAGE

KIT - Seal Repair

1шт.

23

211-306

BALL,7/32" Dia

- Steel

2шт.

24

F9883

SPRING

2шт.

25

H262469

SEAL

- Diaphragm

1шт.

26

H366922

GASKET

- Backup

1шт.

27

H262477

GUARD

GASKET - Protector

1шт.

28

D77645

DIAPHRAGM

1шт.

29

F30415

O-RING,3" ID

1шт.

30

H226886

PLATE

- Thrust

1шт.

31

H757583

O-RING,0.103" Thk x 0.424" ID, -11, Cl 6, 90 Duro

1шт.

32

H757492

SEAL

O-RING

1шт.

33

A41316

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

1шт.

34

H263608

SEAL

- Shaft

1шт.
