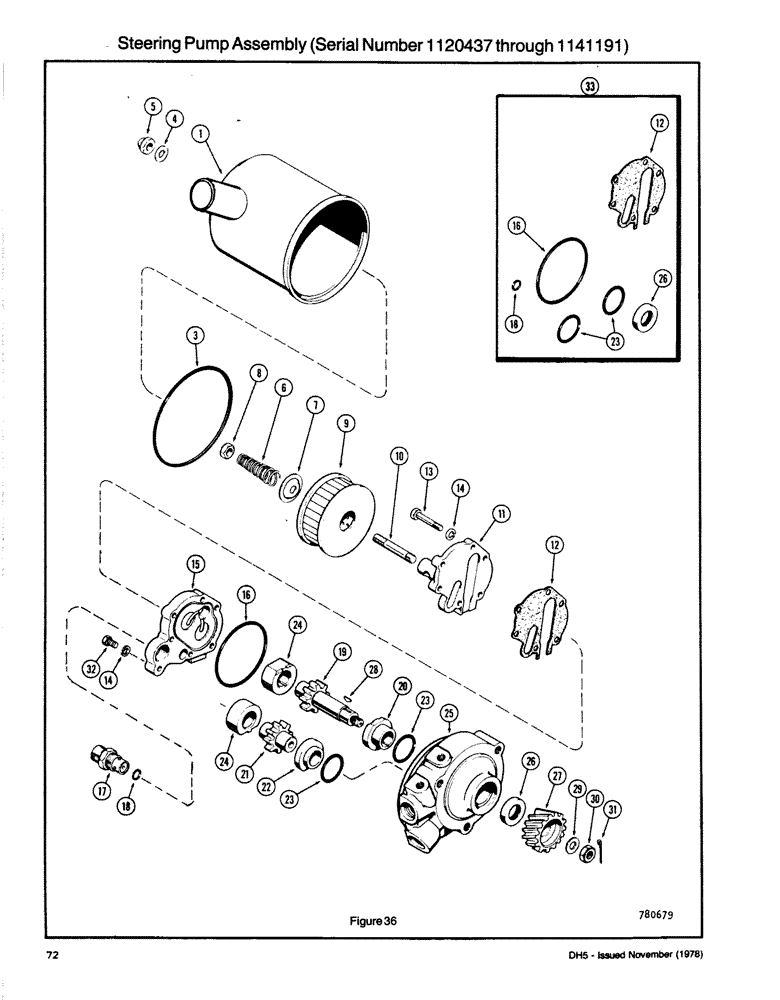

Запчасти Case DH5 (072) - STEERING PUMP ASSEMBLY (SERIAL NUMBER 1120437 THROUGH 1141191) (41) - STEERING

H629287

PUMP

Assembly - power steering

1шт.

1

H629394

TANK

Reservoir - oil DELETED

1шт.

3

A35965

O-RING,2.87mm Thk x 120.27mm ID

Gasket - reservoir

1шт.

4

A42164

WASHER,9.93mm ID x 25.4mm OD x 2.31mm Thk

- reservoir nut

1шт.

5

129-525

CROWN NUT,Crown, 3/8"-16

- 3/8" NC, acorn

1шт.

6

A35963

SPRING

- element tension

1шт.

7

A35962

CAP

Seat - element spring

1шт.

8

25-156

JAM NUT,Jam, 3/8"-24, G5

- 3/8" NC Hex, jam

1шт.

9

A42242

FILTER, ELEMENT

Element - filter (Metal)

1шт.

10

A35952

STUD

- 3/8" NC x 2 3/8"

1шт.

11

A35950

COVER

- pump, rear

1шт.

12

A35966

GASKET

- rear cover

1шт.

13

26-426

BOLT,Hex, 1/4" - 20 x 1-5/8", Gr 8

- 1/4" x 1 5/8" NC, hex

6шт.

14

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

15

A35949

COVER

- pump, intermediate

1шт.

16

A35959

O-RING,2.55" ID x 2.756" OD x 0.103"

O ring - 2 9/16" x 2 3/4" x 3/32"

1шт.

17

D71330

VALVE

Assembly - relief

1шт.

18

A42187

O-RING,0.426" ID x 0.566" OD x 0.07"

O ring - 5/16" x 7/16" x 1/16"

1шт.

19

A25593

GEAR

- driven

1шт.

20

A35957

BEARING

- gear, front

1шт.

21

A35954

GEAR

- idler

1шт.

22

A35955

BEARING

- idler gear front

1шт.

23

A35958

O-RING,0.103" Thk x 1.049" ID, -121, Cl 5, 75 Duro

O Ring - 1 1/16" x 1 1/4" x 3/32"

2шт.

24

A35956

BEARING

- rear

2шт.

25

D71329

BODY

- front

1шт.

26

A50421

OIL SEAL,19.05mm ID x 31.95mm OD x 6.73mm Thk

- oil, 3/4" x 1 1/4" x 1/4"

1шт.

27

A25594

GEAR

- pump drive

1шт.

28

126-109

WOODRUFF KEY,#3, 1/8" x 1/2", HT

1шт.

29

195-25

WASHER,3/8"

- 13/32" x 13/16" x 5/64"

1шт.

30

F18390

NUT

-3/8" NF, hex slotted

1шт.

31

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

1шт.

32

26-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 8

HHCS - 1/4" - 20 NC x 7/8" (Grade 8)

1шт.

33

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.
