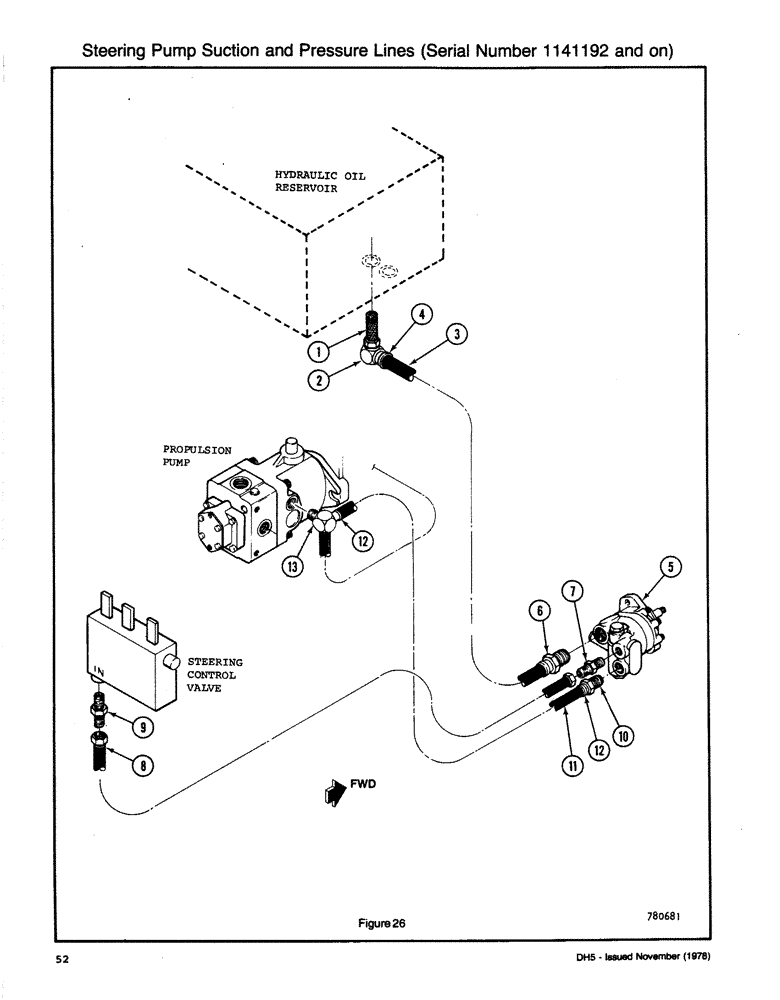

Запчасти Case DH5 (052) - STEERING PUMP SUCTION AND PRESSURE LINES, (SERIAL NUMBER 1141192 AND ON) (41) - STEERING

1

H151399

FILTER STRAINER

SCREEN - Suction

1шт.

2

217-136

ELBOW,90 Degree Elbow, 1" Hose Barb x 1" Male NPTF

90 degree (1 MP & 1 Hose)

1шт.

3

D31469

HOSE

(1 x 19)

1шт.

4

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - Hose (#20)

2шт.

5

SEEFIG.38

PUMP - Steering

1шт.

6

217-390

FITTING,1" Hose Barb x 1-1/16" - 12 Male ORB

CONNECTOR (1 1/16 ORB & 1 Hose)

1шт.

7

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

CONNECTOR (9/16 ORB & 3/4 JIC M)

1шт.

8

H323857

HOSE ASSY.

HOSE (3/4 x 94)

1шт.

9

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR (3/4 ORB & 3/4 JIC M)

1шт.

10

217-396

FITTING,3/4" Hose Barb x 3/4" - 16 Male ORB

CONNECTOR (3/4 ORB & 3/4 Hose)

1шт.

11

H317271

HOSE

(3/4 x 30)

1шт.

12

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - Hose (#12)

2шт.

13

H339762

TEE

(1 1/16 ORB & 3/4 Hose & 3/4 Hose)

1шт.
