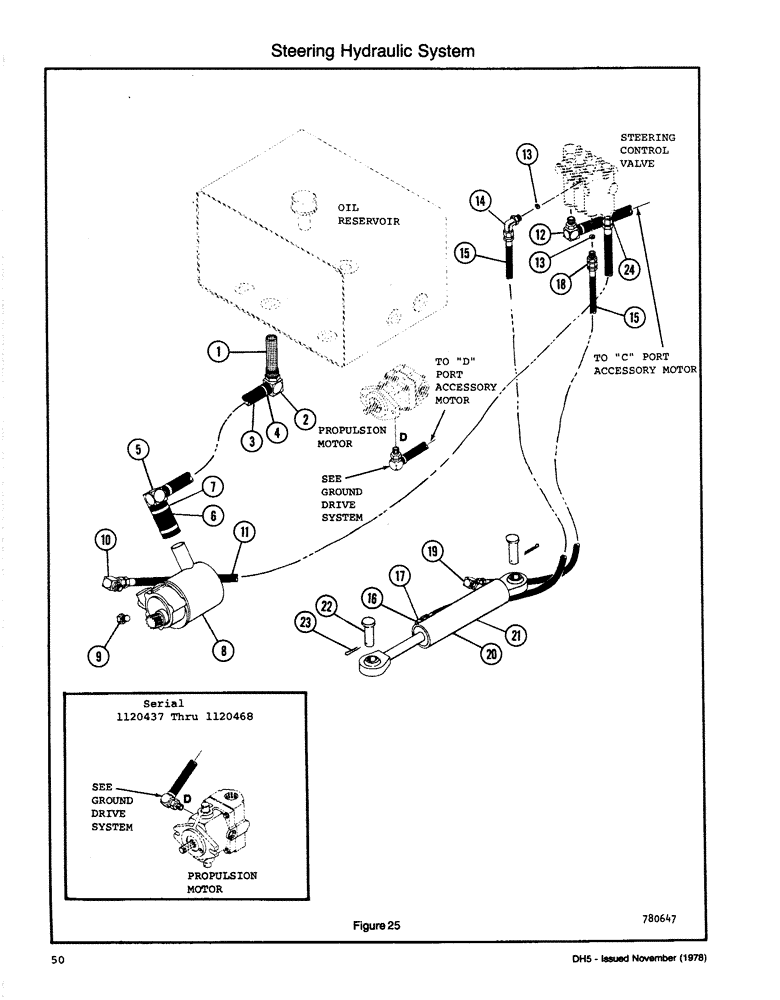

Запчасти Case DH5 (050) - STEERING HYDRAULIC SYSTEM (41) - STEERING

1

H151399

FILTER STRAINER

SCREEN - Suction, Serial Range: 1120432-1141191

1шт.

See Figure 26 for units S/N 1141192 and after.

1шт.

2

217-136

ELBOW,90 Degree Elbow, 1" Hose Barb x 1" Male NPTF

90 degree (1 MP & 1 Hose), Serial Range: 1120432-1141191

1шт.

See Figure 26 for units S/N 1141192 and after.

1шт.

3

H309096

HOSE

(1 x 17), Serial Range: 1120432-1141191

1шт.

See Figure 26 for units S/N 1141192 and after.

1шт.

4

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - Hose (#20), Serial Range: 1120432-1141191

2шт.

See Figure 26 for units S/N 1141192 and after.

1шт.

5

217-136

ELBOW,90 Degree Elbow, 1" Hose Barb x 1" Male NPTF

90 degree (1 MP & 1 Hose), Serial Range: 1120432-1141191

1шт.

See Figure 26 for units S/N 1141192 and after.

1шт.

6

H348250

HOSE,2.00", SAE 100R3

Suction 2.00", SAE 100R3, Serial Range: 1120432-1141191

1шт.

See Figure 26 for units S/N 1141192 and after.

1шт.

7

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

, Serial Range: 1120432-1141191

2шт.

See Figure 26 for units S/N 1141192 and after.

1шт.

8

PUMP -Steering (See Fig. 36), Serial Range: 1120432-1141191

1шт.

See Figure 26 for units S/N 1141192 and after.

1шт.

9

214389

PLUG,3/4" - 16 ORB

, Serial Range: 1120432-1141191

1шт.

See Figure 26 for units S/N 1141192 and after.

1шт.

10

218-5117

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 16 Male ORB

90 degree Adj (3/4 ORB & 7/8 JIC M), Serial Range: 1120432-1141191

1шт.

See Figure 26 for units S/N 1141192 and after.

1шт.

11

H246066

HOSE ASSY.

HOSE ASSY (1/2 x 88)(7/8 JIC Fm Swv), Serial Range: 1120432-1141191

1шт.

See Figure 26 for units S/N 1141192 and after.

1шт.

12

217-364

FITTING,90 Degree Elbow, 3/4" Hose Barb x 3/4" - 16 Male ORB

ELBOW 90 degree Adj (3/4 ORB & 3/4 Hose)

1шт.

13

H746875

SCREW

ORIFICE (Install in "A" & "B" ports of control valve) all machines except quad units and offset units

2шт.

14

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

90 degree Adj (9/16 ORB & 9/16 JIC M)

1шт.

15

H249615

HYDRAULIC HOSE,6.35 mm ID x 1574.80 mm, SAE 100R1

6.35 mm ID x 1574.80 mm, SAE 100R1

2шт.

16

218-1053

ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/8"-18, NPTF

90 degree (3/8 MP & 9/16 JIC M) all machines except quad units and offset units

1шт.

17

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

90 degree Adj (9/16 ORB & 9/16 JIC M) quad units and offset units

1шт.

18

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR (9/16 ORB & 9/16 JIC M)

1шт.

19

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

90 degree Adj (9/16 ORB & 9/16 JIC M)

1шт.

20

CYLINDER - Steering (2 1/2") (See Fig. 127) all machines except quad units and offset units

1шт.

21

CYLINDER - Steering (4") (See Figure 128) quad units and offset units

1шт.

22

H70623

AXLE PIN

PIN - Clevis (1 x 3 1/2)

2шт.

23

132-345

COTTER PIN,3/16" x 1 1/2"

PIN, SPLIT (COTTER), 3/16" x 1 1/2"

2шт.

24

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., 7/8"-14, 37º x 3/4"-16, O-Ring, Serial Range: 1120432-1141191

1шт.

See Figure 26 for units S/N 1141192 and after.

1шт.
