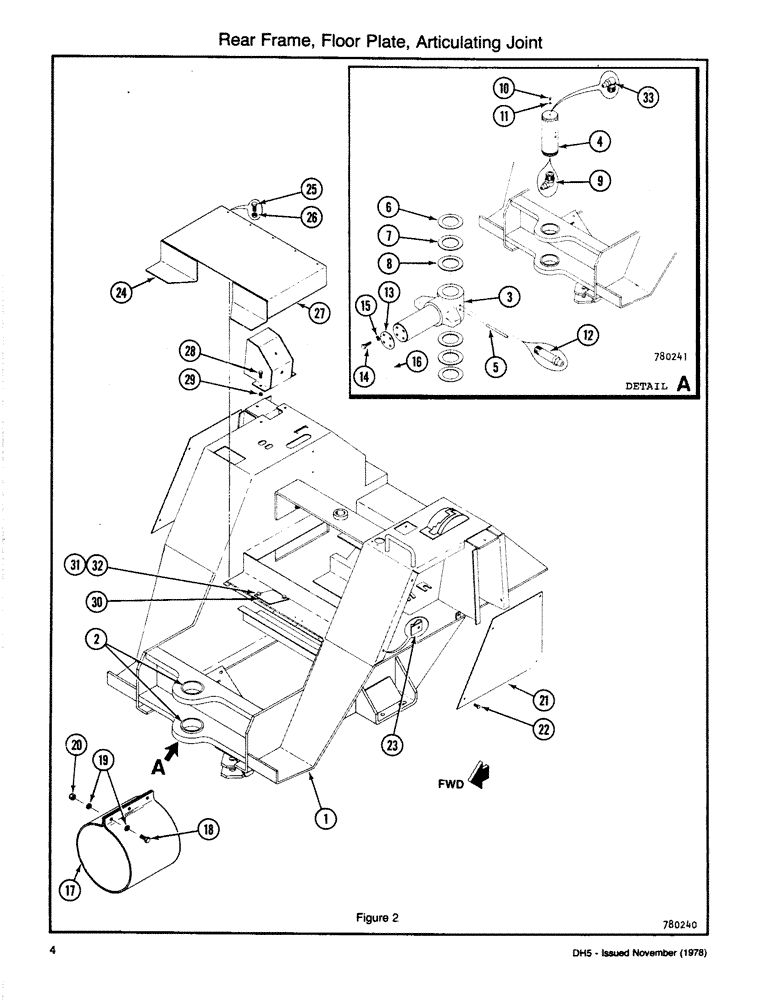

Запчасти Case DH5 (004) - REAR FRAME, FLOOR PLATE, ARTICULATING JOINT (39) - FRAMES AND BALLASTING

1

H624882

FRAME ASSY - Rear

1шт.

2

H207449

BUSHING

2шт.

3

H276964

AXLE PIN

SHAFT - Pivot (Unmodified)

1шт.

When replacing pivot shaft, order H642207 pivot shaft replacement kit.

1шт.

DH5 serial 1120432 through 1141150 and machines that do not have kits H642199 and H642207 installed.

1шт.

H276964

AXLE PIN

SHAFT - Pivot (Modified)

1шт.

When replacing pivot pin, order H642199 pivot shaft modification kit.

1шт.

4

H209189

PIVOT PIN

PIN - Pivot (Unmodified)

1шт.

This item is included in H642207 kit.

1шт.

DH5 serial 1120432 through 1141150 and machines that do not have kits H642199 and H642207 installed.

1шт.

H209189

PIVOT PIN

PIN - Pivot (Modified)

1шт.

DH5 serial 1141151 and after, and all machines that have kits H642199 and H642207 installed.

1шт.

This item is included in the H642199 kit.

1шт.

When replacing pivot pin, order H642199 pivot shaft modification kit.

1шт.

5

H216572

AXLE PIN

PIN - Keeper

1шт.

6

H261834

SHIM,.030" Thk

1шт.

7

H260943

SHIM,.135" Thk

1шт.

8

H260950

SHIM,.060" Thk

1шт.

9

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

FITTING - Grease (90 degree 1/4)

1шт.

10

114-2

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

NF HH (1/4 x 1/2)

1шт.

DH5 serial 1141151 and after, and all machines that have kits H642199 and H642207 installed.

1шт.

This item is included in the H642199 kit.

1шт.

When replacing pivot pin, order H642199 pivot shaft modification kit.

1шт.

11

192-2

WASHER - Lock (1/4)

1шт.

DH5 serial 1141151 and after, and all machines that have kits H642199 and H642207 installed.

1шт.

This item is included in the H642199 kit.

1шт.

When replacing pivot pin, order H642199 pivot shaft modification kit.

1шт.

12

219-417

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - Grease (straight 1/4 extended)

1шт.

DH5 serial 1141151 and after, and all machines that have kits H642199 and H642207 installed.

1шт.

This item is included in the H642199 kit.

1шт.

When replacing pivot pin, order H642199 pivot shaft modification kit.

1шт.

13

H210708

PLATE

- Pivot Shaft

1шт.

14

H283614

BOLT

NC HH (5/8 x 1 1/2)

4шт.

15

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - Flat (5/8)

4шт.

16

H283648

WIRE - Safety

1шт.

17

H346932

COVER

- Hose

1шт.

18

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

3шт.

19

195-521

WASHER,5/16", SAE

- Flat (5/16)

6шт.

20

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT NC HH C/L (5/16)

3шт.

21

H339051

PLATE

COVER - Console

2шт.

22

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

8шт.

23

H346650

NUT

U (5/16)

8шт.

24

H626226

PLATE

ASSY - Floor

1шт.

25

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

5шт.

26

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

5шт.

27

H625723

CONTROL

BOX ASSY - Control

1шт.

28

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

29

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT NC HH C/L (5/16)

2шт.

30

H353490

PLATE - Cover

1шт.

DH5 serial 1120432 through 1120604.

1шт.

31

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

DH5 serial 1120432 through 1120604.

1шт.

32

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT NC HH C/L (5/16)

2шт.

DH5 serial 1120432 through 1120604.

1шт.

33

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

FITTING - Grease (90 degree 1/4)

1шт.

DH5 serial 1120432 through 1141150 and machines that do not have kits H642199 and H642207 installed.

1шт.
