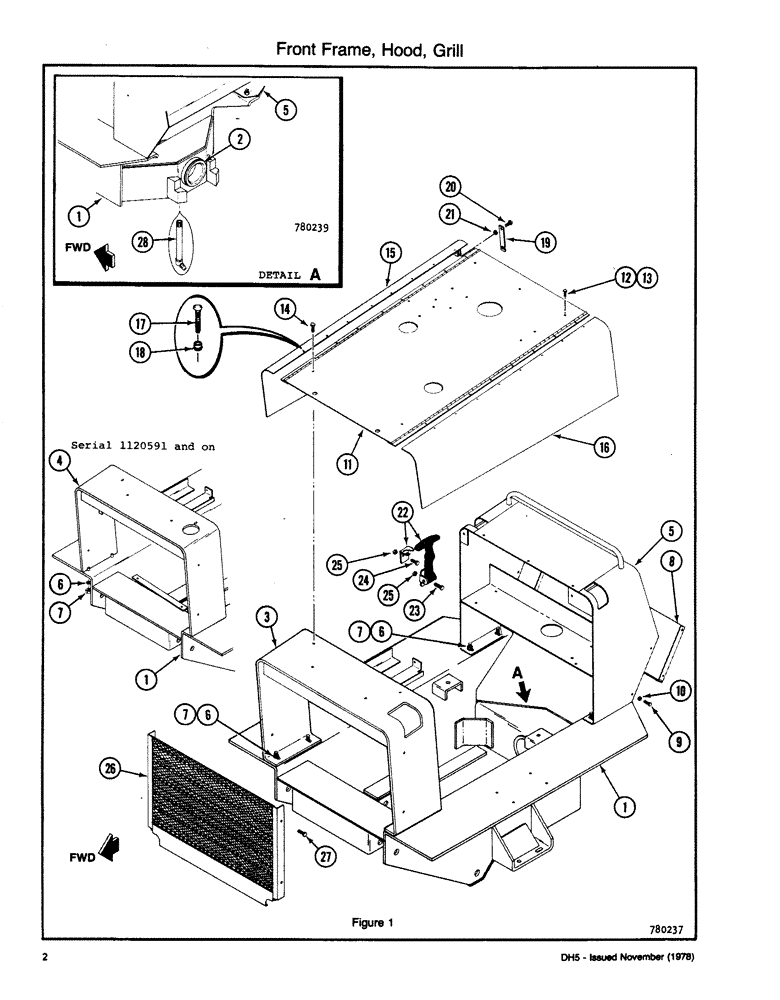

Запчасти Case DH5 (002) - FRONT FRAME, HOOD, GRILL (39) - FRAMES AND BALLASTING

1

H624874

FRAME ASSY - Front

1шт.

2

H276899

BUSHING

2шт.

3

H625160

WRAP ASSY - Front, DH5, Serial Range: 1120432-1120590

1шт.

Interchangeable as a set only.

1шт.

4

H634865

WRAP ASSY - Front, DH5, Start Serial: 1120591

1шт.

Interchangeable as a set only.

1шт.

5

H624569

WRAP ASSY - Rear

1шт.

6

195-533

WASHER,1/2", SAE

- Flat (1/2)

8шт.

7

131-1182

LOCK NUT,1/2"-13, GA

NUT NC HH C/L (1/2)

8шт.

8

H339044

PLATE

- Pump Cover

1шт.

9

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

10

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT NC HH C/L (5/16)

4шт.

11

H624577

HOOD ASSY.

HOOD ASSY - Center (Long) DH5, Serial Range: 1120432-1120590

1шт.

Interchangeable as a set only.

1шт.

H624577

HOOD ASSY.

HOOD ASSY - Center (Short), Start Serial: 1120591

1шт.

Interchangeable as a set only.

1шт.

12

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

13

230-4216

LOCK NUT,3/8"-16, GA

NUT NC HH C/L (3/8)

2шт.

14

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3шт.

15

G624601

HOOD ASSY - R/H Side (Long) DH5, Serial Range: 1120432-1120590

1шт.

Interchangeable as a set only.

1шт.

H624601

HOOD

ASSY - R/H Side (Short) DH5, Start Serial: 1120591

1шт.

Interchangeable as a set only.

1шт.

16

H624619

HOOD

ASSY - L/H Side (Long) DH5, Serial Range: 1120432-1120590

1шт.

Interchangeable as a set only.

1шт.

H624619

HOOD

ASSY - L/H Side (Short) DH5, Start Serial: 1120591

1шт.

Interchangeable as a set only.

1шт.

17

H352674

BOLT

(Avdelock pin)

16шт.

18

H352682

COLLAR

(Avdelock)

16шт.

19

H332585

SUPPORT

HOLD UP - Hood

2шт.

20

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

21

230-4216

LOCK NUT,3/8"-16, GA

NUT NC HH C/L (3/8)

2шт.

22

H628263

LATCH ASSY.

LATCH - Flexible

4шт.

23

113-1003

SCREW,Hex, #10 - 24 x 3/4", Gr 5

8шт.

24

113-1006

SCREW,Hex, #10 - 24 x 1/2", Gr 5

BOLT NC HH (#10-24 x 1/2)

8шт.

25

131-1142

LOCK NUT,Hex, #10 - 24, Gr A

NUT, LOCK, #10-24, GA

16шт.

26

H624593

GRILLE ASSY

GRILL ASSY

1шт.

27

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

28

219-42

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - Grease (65 degree 1/8 NPTF extended)

1шт.
