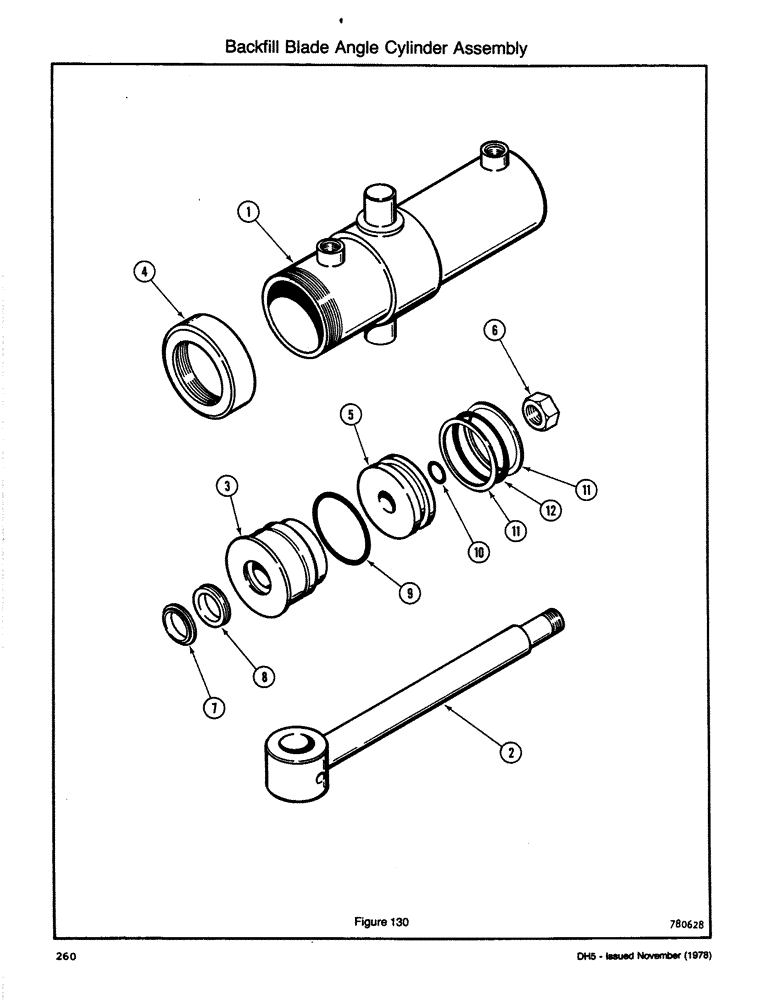

Запчасти Case DH5 (260) - BACKFILL BLADE ANGLE CYLINDER ASSEMBLY (35) - HYDRAULIC SYSTEMS

H583542

CYLINDER BLOCK

CYLINDER ASSEMBLY - Backfill Blade Angle

1шт.

1

H591271

TUBE ASSY.

BARREL - Cylinder

1шт.

2

H591263

ROD

- Piston

1шт.

3

H274035

GLAND

1шт.

4

H232116

COLLAR

- Gland

1шт.

5

H247023

PISTON

1шт.

6

131-1172

LOCK NUT,3/4"-16, GA

NUT - Lock

1шт.

H591255

SEAL

KIT - Seal Repair

1шт.

7

H755793

RETAINER

WIPER - Rod

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL - Rod

1шт.

9

A14506

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

SEAL - Gland Static

1шт.

10

A17526

O-RING,0.614" ID x 0.754" OD x 0.7"

SEAL - Rod Static

1шт.

11

H754986

RING - Backup

2шт.

12

H743542

SEAL - Piston

1шт.
