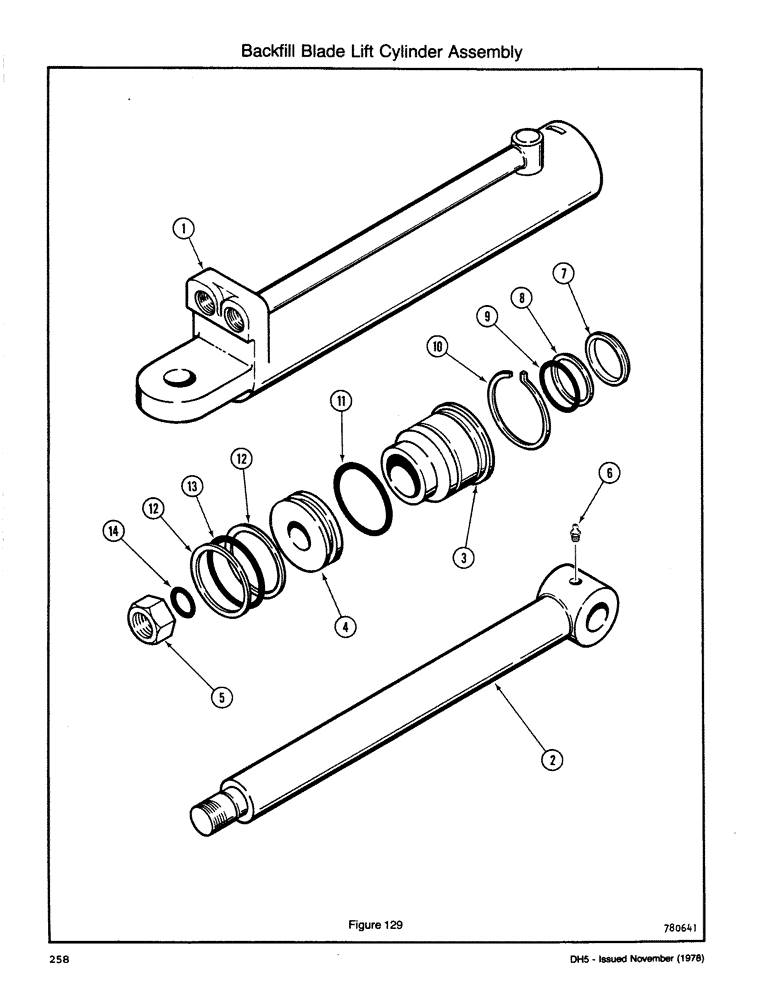

Запчасти Case DH5 (258) - BACKFILL BLADE LIFT CYLINDER ASSEMBLY (35) - HYDRAULIC SYSTEMS

H583534

CYLINDER BLOCK

CYLINDER ASSEMBLY - Backfill Blade Lift

1шт.

1

H590638

TUBE ASSY.

BARREL - Cylinder

1шт.

2

H590620

ROD

- Piston

1шт.

3

H207043

GLAND

1шт.

4

H207035

PISTON ASSY.

PISTON

1шт.

5

131-370

LOCK NUT

NUT - Lock

1шт.

6

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

H207068

SEAL

KIT - Seal Repair

1шт.

7

H222935

WIPER SEAL

WIPER - Rod

1шт.

8

H745687

WASHER

RING - Backup

1шт.

9

T13224

O-RING,1.484" ID x 1.762" OD x 0.139"

SEAL - Rod

1шт.

10

H207027

LOCK ASSY

LOCKWIRE

1шт.

11

A14506

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

SEAL - Gland Static

1шт.

12

H754986

RING - Backup

2шт.

13

H743542

SEAL - Piston

1шт.

14

H744698

O-RING,0.07" Thk x 0.864" ID, -20, Cl 7, 75 Duro

SEAL - Rod Static

1шт.
