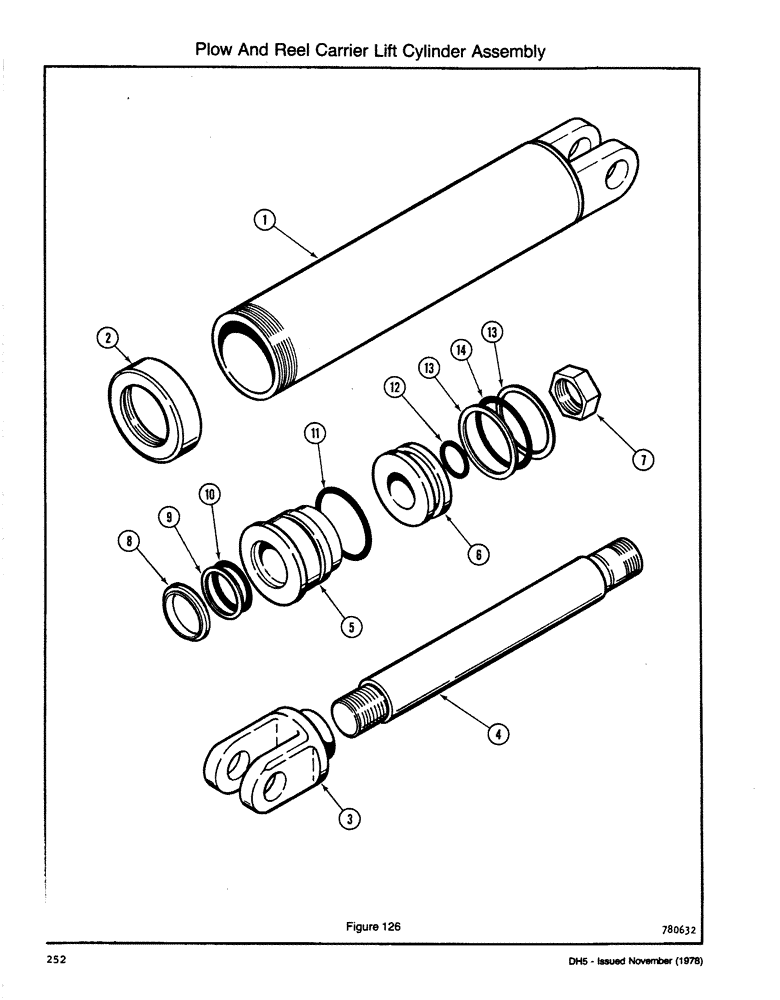

Запчасти Case DH5 (252) - PLOW AND REEL CARRIER LIFT CYLINDER ASSEMBLY (35) - HYDRAULIC SYSTEMS

H565655

CYLINDER BLOCK

CYLINDER ASSEMBLY - Plow Lift

2шт.

1

H571091

TUBE ASSY.

BARREL

1шт.

2

H223032

COLLAR CLAMP

COLLAR - Gland

1шт.

H636308

ROD

ASSEMBLY - Piston

1шт.

3

H223065

CLEVIS COUPLING

CLEVIS - Rod

1шт.

4

H223107

- Piston

1шт.

5

H223081

GLAND

1шт.

6

H223073

PISTON ASSY.

PISTON

1шт.

7

131-370

LOCK NUT

NUT - Lock

1шт.

H571075

KIT

- Seal Repair

1шт.

8

H222935

WIPER SEAL

WIPER - Rod

1шт.

9

H745687

WASHER

RING - Backup

1шт.

10

T13224

O-RING,1.484" ID x 1.762" OD x 0.139"

SEAL - Rod

1шт.

11

A27996

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

SEAL - Gland Static

1шт.

12

H744698

O-RING,0.07" Thk x 0.864" ID, -20, Cl 7, 75 Duro

SEAL - Rod Static

1шт.

13

H754614

WASHER

RING - Backup

1шт.

14

D38775

SEAL - Piston

1шт.
