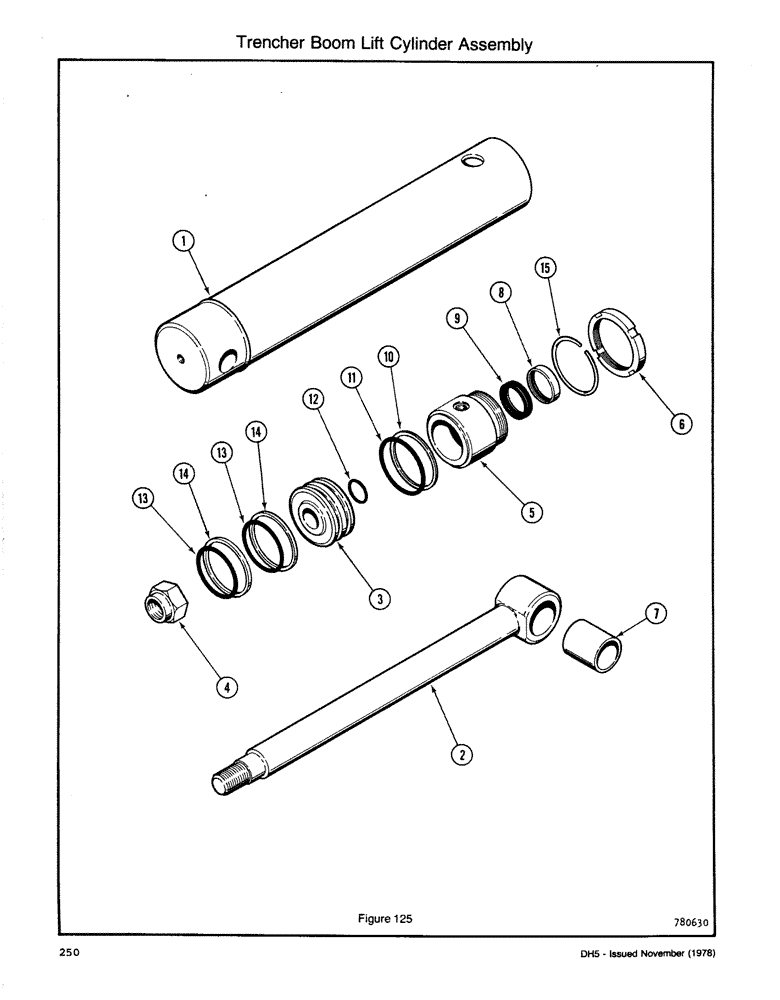

Запчасти Case DH5 (250) - TRENCHER BOOM LIFT CYLINDER ASSEMBLY (35) - HYDRAULIC SYSTEMS

H530519

CYLINDER BLOCK

CYLINDER ASSEMBLY - Trencher Boom Lift

1шт.

1

H122218

SLEEVE CYLINDER

BARREL

1шт.

2

H570184

ROD

- Piston

1шт.

3

H120147

PISTON ASSY.

PISTON

1шт.

4

131-1141

LOCK NUT,1 1/8" - 12, Gr A

NUT - Piston

1шт.

5

H120360

BEARING

1шт.

6

H745794

BEARING LOCK NUT

NUT - Bearing

1шт.

7

H220624

RING

BUSHING

1шт.

H122234

SEAL ASSY.

KIT - Seal Repair

1шт.

8

A41785

WIPER SEAL

SEAL - Shaft

1шт.

9

H220558

SEAL

1шт.

10

H745760

WASHER

- Backup

1шт.

11

A27996

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

1шт.

12

A27355

O-RING,0.139" Thk x 1.17" ID, -217, Cl 5, 75 Duro

1шт.

13

H744052

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

2шт.

14

H120188

RING

- Piston

2шт.

15

H52761

RING

- Lock

1шт.
