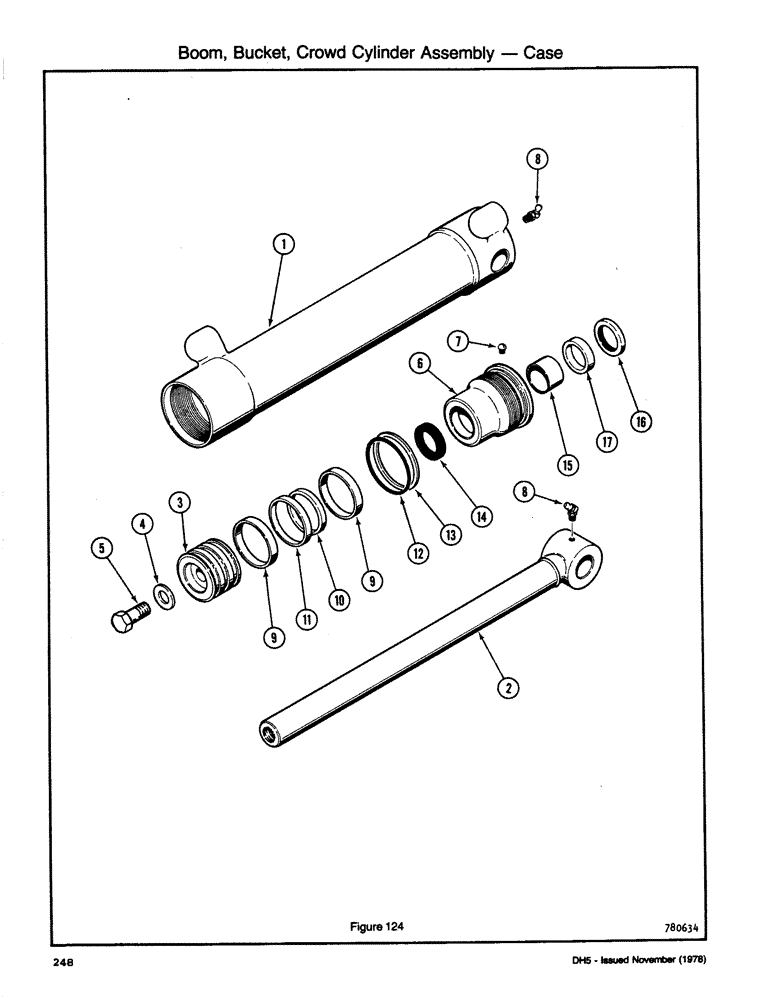

Запчасти Case DH5 (248) - BOOM, BUCKET, CROWD CYLINDER ASSEMBLY - CASE (35) - HYDRAULIC SYSTEMS

G100936

CYLINDER,Double Acting, 38.1mm Rod, 371.35mm Stroke

ASSEMBLY - Boom, Dipperstick, Bucket (Case)

3шт.

1

G100937

TUBE,76.2 mm DIA x 550.9 mm L

BARREL

1шт.

2

G101357

ROD

- Piston

1шт.

3

G100441

PISTON

Includes: Ref. 9, 10 and 11.

1шт.

4

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- Special

1шт.

5

28-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 8

1шт.

6

G35218

GLAND

Includes: Ref. 12 thru 16

1шт.

7

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - NC Self Tapping (#8 x 1/4)

1шт.

8

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - Grease

2шт.

G102404

SEAL

KIT - Seal Repair

1шт.

9

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

RING - Wear

2шт.

Part of Ref. 3

1шт.

10

G100444

SEALING RING,Square, 5.28mm Thk x 62.61mm ID

- Piston

1шт.

Part of Ref. 3

1шт.

11

G100443

SEAL,67.9mm ID x 77.1mm OD x 6.8mm Thk

RING - Pistonp

1шт.

Part of Ref. 3

1шт.

12

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

1шт.

Part of Ref. 6

1шт.

13

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

WASHER - Backup

1шт.

Part of Ref. 6

1шт.

14

D36969

CUP

SEAL - Rod

1шт.

Part of Ref. 6

1шт.

15

G102424

BUSHING,38.1mm ID x 41.17mm OD x 25.15mm L

BEARING - Rod

1шт.

Part of Ref. 6

1шт.

16

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - Rod

1шт.

Part of Ref. 6

1шт.

17

NSS

NOT SOLD SEPARAT

RING - Steel

1шт.
