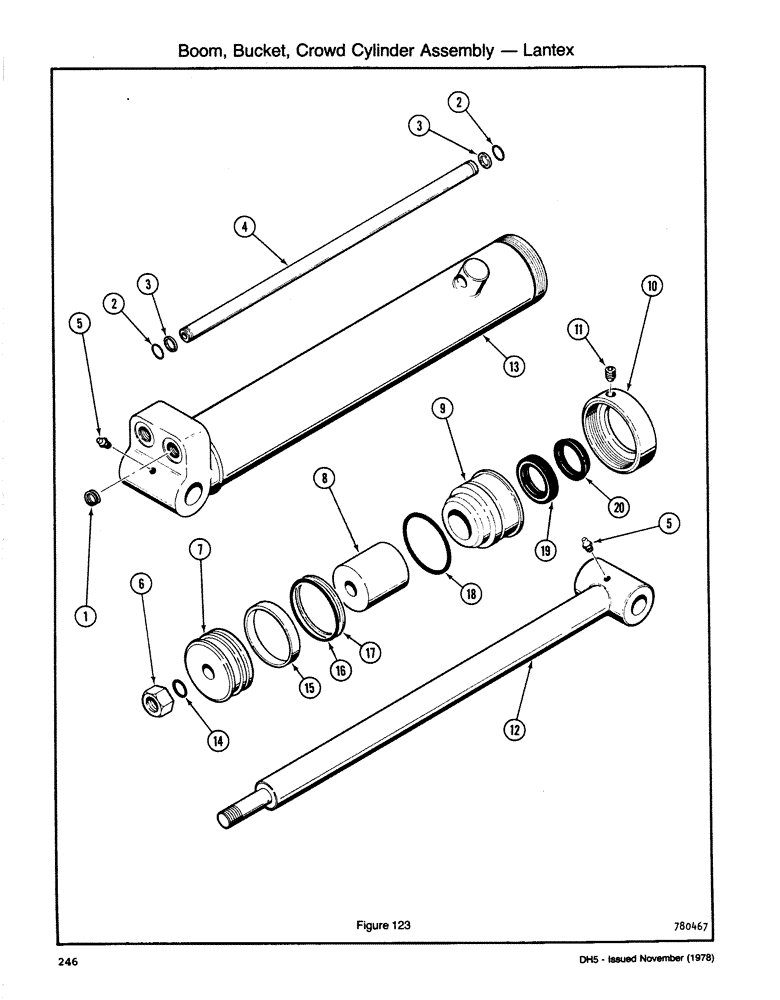

Запчасти Case DH5 (246) - BOOM, BUCKET, CROWD CYLINDER ASSEMBLY - LANTEX (35) - HYDRAULIC SYSTEMS

H623637

CYLINDER

ASSEMBLY - Boom, Dipperstick, Bucket (Lantex)

3шт.

H602607

KIT

- Manifold

1шт.

1

H286013

VALVE SPRING

SPRING

1шт.

2

A29197

O-RING,0.424" ID x 0.63" OD x 0.103"

2шт.

3

H745620

WASHER

RING - Backup

2шт.

4

NSS

NOT SOLD SEPARAT

TUBE - Manifold

1шт.

5

H745620

WASHER

FITTING - Grease

2шт.

6

131-1141

LOCK NUT,1 1/8" - 12, Gr A

NUT - Piston Rod (1 1/2 - 12 NF)

1шт.

7

H334557

PISTON ASSY.

PISTON

1шт.

8

H298018

SPACER

1шт.

9

H328781

GLAND

1шт.

10

H330423

CYLINDER END CAP

COLLAR

1шт.

11

178-878

SET SCREW,Hex Soc, 5/16"-18 x 5/16"

- W/Nylon Insert

1шт.

12

H625277

ROD

- Piston

1шт.

13

H625285

DRUM

BARREL

1шт.

H623645

KIT

- Seal Repair

1шт.

14

H744730

O-RING

1шт.

15

131-1174

LOCK NUT,1 1/4"-14, GA

STRIP - Wear

1шт.

16

T55938

OIL SEAL

O-RING

1шт.

17

A11021

O-RING,0.103" Thk x 2.55" ID, -145, Cl 5, 75 Duro

RING - Backup

1шт.

18

A27996

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

1шт.

19

H247809

SEAL ASSY.

SEAL - Rod

1шт.

20

H222935

WIPER SEAL

WIPER - Rod

1шт.
