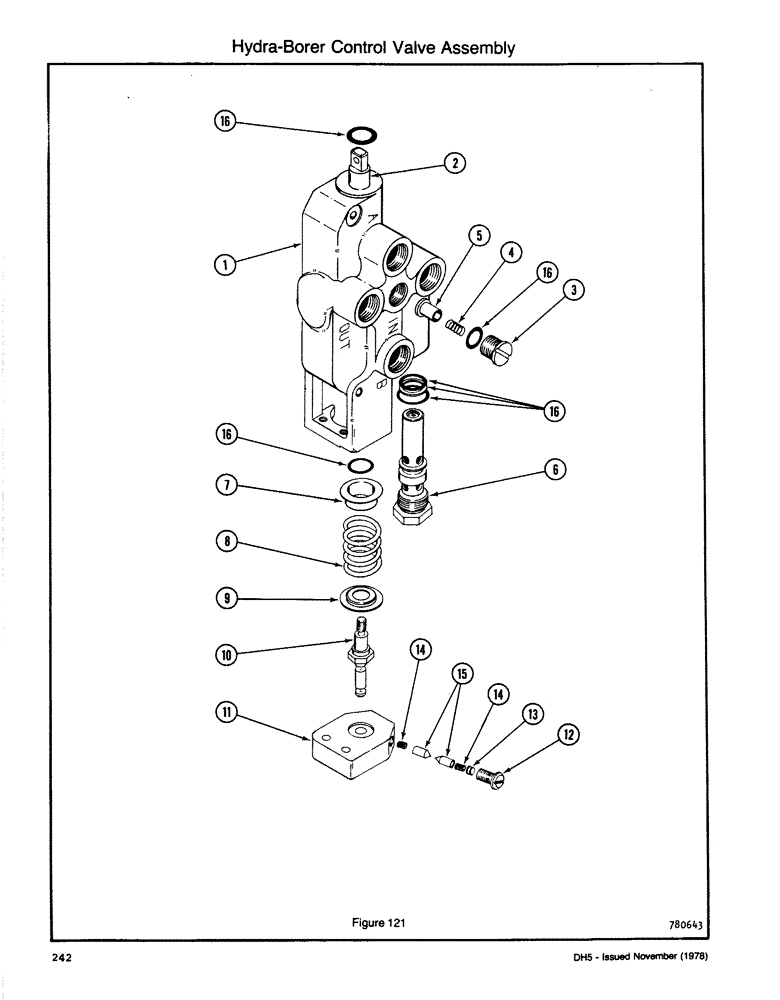

Запчасти Case DH5 (242) - HYDRA-BORER CONTROL VALVE ASSEMBLY (35) - HYDRAULIC SYSTEMS

H544718

LOCK VALVE

VALVE ASSEMBLY

1шт.

1

NSS

NOT SOLD SEPARAT

BODY

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL

1шт.

3

H47506

PLUG

(Includes O-Ring)

1шт.

4

H45714

SPRING - Lift Check

1шт.

5

H52894

PLUNGER

Lift Check

1шт.

6

H102053

VALVE

- Relief (2500 PSI) (Includes O-Rings)

1шт.

7

H138271

WASHER

1шт.

8

H52928

VALVE SPRING

SPRING - Spool

1шт.

9

F59116

WASHER

1шт.

10

H152157

SCREW

- Detent

1шт.

11

H125831

BLOCK

- Detent

1шт.

12

H105015

PLUG

- Detent

1шт.

13

H141788

DISC

- Shim (.010 thick)

1шт.

14

H105049

SPRING

- Detent

2шт.

15

H104992

PAWL

- Detent

2шт.

16

H125864

KIT

- Seal Repair

1шт.
